The global construction industry is undergoing a structural paradigm shift. Escalating traditional construction costs, severe labor shortages, and an urgent mandate for eco-conscious developments have forced real estate developers, governmental procurement agencies, and private consumers to seek innovative alternatives. Tiny houses and modular prefabricated systems have transitioned from niche architectural experiments to mainstream commercial solutions.
As a leading Chinese manufacturer, Guangzhou NGL Home Co., Ltd. utilizes China’s advanced industrial supply chains to produce engineered micro-dwellings that match or exceed Western building regulations (e.g., IBC, IRC, CSA, and AS/NZS). This synthesis of cost-efficiency and premium engineering positions Chinese exporters at the center of the global modular housing supply chain.
Boutique hotels, glamping hubs, and eco-resorts leverage high-end prefabricated steel structures and custom modular glass villas to minimize local ecological disruption while accelerating project startup times.

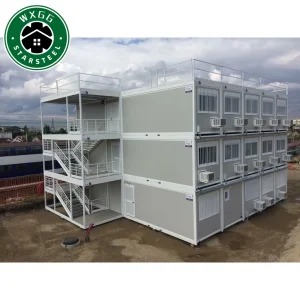

Mining operations, oil extraction sites, and major infrastructure installations deploy customizable multi-bedroom expandable cabins and stackable flat-packs to build self-contained worker communities quickly.
Governments rely on light-steel modular clinics, classrooms, and rapid-deployment emergency units to establish essential public services within days after environmental or economic crises.
True durability in modular construction relies on material science. High-performance tiny houses must withstand diverse environmental stressors—from freezing North American winters to the intense heat and humidity of coastal Australia and the Middle East.
| Structural Subsystem | Technical Standards & Materials Used | Performance & Compliance Metric |
|---|---|---|
| Primary Steel Frame | Q355B Hot-Dip Galvanized Structural Steel (Min. 275g/m² zinc coating thickness) | Withstands Category 11-12 Typhoons (Wind load resistance up to 120km/h); Seismic Zone 8 Resistant. |
| Thermal Insulation | Polyurethane (PU) Injection Core, High-Density Rockwool, or EPS Sandwich Panels | U-values optimized down to 0.24 W/m²K; excellent flame-retardant properties (Class A / B1 ratings). |
| External Wall Siding | Fluorocarbon-coated Aluminum-Zinc alloy sheet with integrated PU backing / Fiber Cement Board | Zero fading over 15+ years; high resistance to acid rain, UV radiation, and insect boring. |
| Glazing Systems | Double-pane, low-E, argon gas-filled tempered glass with thermal break aluminum frames | Sound attenuation up to 38dB; minimizes solar heat gain (SHGC) while optimizing natural light. |
| Internal Foundation & Floor | Waterproof Calcium Silicate board paired with Heavy-duty SPC vinyl finish flooring | Zero formaldehyde emission (E0 Grade); 100% waterproof, rot-proof, and fire-resistant. |
A critical engineering failure point in modular metal-framed buildings is thermal bridging. Guangzhou NGL Home counters this by inserting specialized high-density polymer thermal breaks between the inner and outer structural frames. This ensures that interior heating or cooling energy remains sealed inside, preventing condensation buildup along structural studs—a major cause of toxic mold in traditional prefab dwellings.
Exporting tiny houses globally requires strict adherence to regional construction codes. As a premium manufacturer, NGL Home customizes electrical, plumbing, and structural engineering to meet the targeted destination’s exact legal requirements.
All plumbing lines are constructed using PEX tubing conforming to ASTM standards. Electrical setups utilize UL-listed components, copper wiring, and specialized distribution boxes conforming to NEC/CSA code limits (such as CSA A277 certification for Canadian modular installations).
Frames are engineered to match AS/NZS 1170 structural wind load standards, particularly in high-velocity Cyclonic regions (Region C & D). All electrical conduits, GPO wall outlets, and RCD breakers match AS/NZS 3000 rules. Glass complies with AS 1288 requirements.
Structures feature CE-certified components. Thermal insulation targets high energy efficiency values compliant with localized Energy Performance Certificates (EPC), utilizing environmentally safe, non-toxic insulation cores.
Logistical and installation costs can make or break a commercial modular development. Minimizing shipping volume while maximizing ease of assembly is key to our manufacturing strategy.
Flat-pack configurations package roof, floor, wall panels, and columns into a single compact profile. Four standard flat-packs bundle into the exact dimensions of one standard 20FT ISO shipping container, reducing sea freight costs by up to 75%.

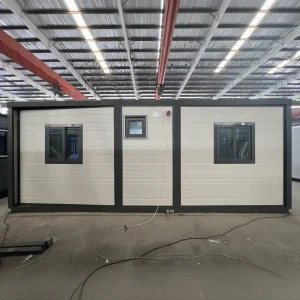

Expandable models ship fully finished inside a single 40FT HC container. Once onsite, utilizing a crane and simple integrated mechanical winches, the side modules fold outward to triple the internal living area within 2 to 4 hours of assembly work.
Our structures eliminate the need for concrete pouring (except for base footings or helical pile foundations). Dry-joint bolt connections ensure that structures assemble rapidly in any weather conditions, with no specialized curing time required.
The next decade of modular living will be defined by self-sufficiency, clean energy, and smart architectural customization. Guangzhou NGL Home is at the forefront of this technological shift, developing sustainable energy solutions and incorporating AI design tools into our manufacturing process.
Our luxury tiny houses are designed for plug-and-play connection with modern solar photovoltaic (PV) roofing arrays. Integrated lithium iron phosphate (LiFePO4) battery walls and smart invertors handle domestic electricity needs, while rainwater collection channels and advanced graywater filtration systems support off-grid setups without sacrificing modern comforts.
NGL Home uses advanced CAD/BIM software to simulate local climate stresses, solar paths, and structural load requirements before manufacturing begins. This eliminates errors and guarantees that customized designs function efficiently in their local environments.
Optional smart home hubs manage HVAC systems, lighting, and ventilation through mobile applications or voice controls. Real-time air quality monitoring systems automatically adjust fresh air intake via energy recovery ventilators (ERV).
We are incorporating structural bio-composites and recycled insulation fibers into our modular configurations, helping developers achieve carbon-neutral certifications (like LEED or BREEAM) for their projects.
Guangzhou NGL Home Co., Ltd. is a leading manufacturer of prefab houses, modular buildings, portable homes, and steel structure construction solutions in China. With extensive experience in the prefabricated building industry, we are committed to providing innovative, efficient, and sustainable housing systems for residential, commercial, industrial, and institutional applications worldwide.
Our product range includes prefab houses, modular homes, steel structure houses, portable cabins, flat pack container houses, expandable homes, labor camps, site offices, modular classrooms, healthcare buildings, commercial units, resort villas, and customized prefabricated structures. Designed with flexibility and durability in mind, our solutions offer fast installation, convenient transportation, reduced construction costs, and excellent long-term performance.
At NGL Home, we combine advanced manufacturing technology with rigorous quality management to ensure every project meets international standards. Our experienced engineering team offers complete OEM and ODM services, including customized layouts, structural design, thermal insulation, electrical and plumbing systems, interior decoration, exterior finishes, and project-specific modifications to satisfy diverse customer requirements.
Constructed with premium galvanized steel frames and high-quality insulation materials, our prefabricated buildings provide outstanding structural strength, weather resistance, energy efficiency, and comfortable living environments. They are widely applied in construction sites, mining camps, government housing projects, tourism resorts, educational facilities, medical centers, emergency relief programs, military camps, and permanent residential developments.
Driven by innovation, quality, and customer satisfaction, Guangzhou NGL Home continuously invests in modern production equipment and product development to deliver reliable modular construction solutions to global markets. Our products are exported to Europe, North America, South America, Southeast Asia, the Middle East, Africa, and Oceania, earning long-term trust from contractors, developers, distributors, and project owners.
We customize all structural calculations, electrical configurations, and plumbing layouts according to the project's destination country. Our engineers use regional parameters (such as the US NEC/CSA codes, Australian AS/NZS standards, or European CE requirements) during the design stage to ensure smooth local inspections and compliance.
The main structural framework is made of hot-dip galvanized steel, which has a design life of over 50 years under standard conditions. Wall cladding and thermal insulation materials are selected for high durability, with an expected lifespan of 15 to 25 years before requiring basic maintenance.
Yes, we offer custom modifications to integrate solar panel systems, backup battery storage systems, rainwater harvesting configurations, and specialized graywater treatment equipment. These systems are pre-engineered to connect easily on site.
Depending on local soil conditions and permanence, our modular houses can be installed on simple concrete piers, gravel pads, concrete slabs, or helical steel screw piles. The lightweight design of modular framing significantly reduces foundation cost compared to traditional construction.
We optimize our products for shipping. Depending on the model, they are shipped either as a completed ISO container structure (which functions as its own shipping unit), in flat-pack bundles, or packed in standard 40FT High Cube (HC) sea containers. We manage all export customs clearance, documentation, and coordination with global shipping lines.
