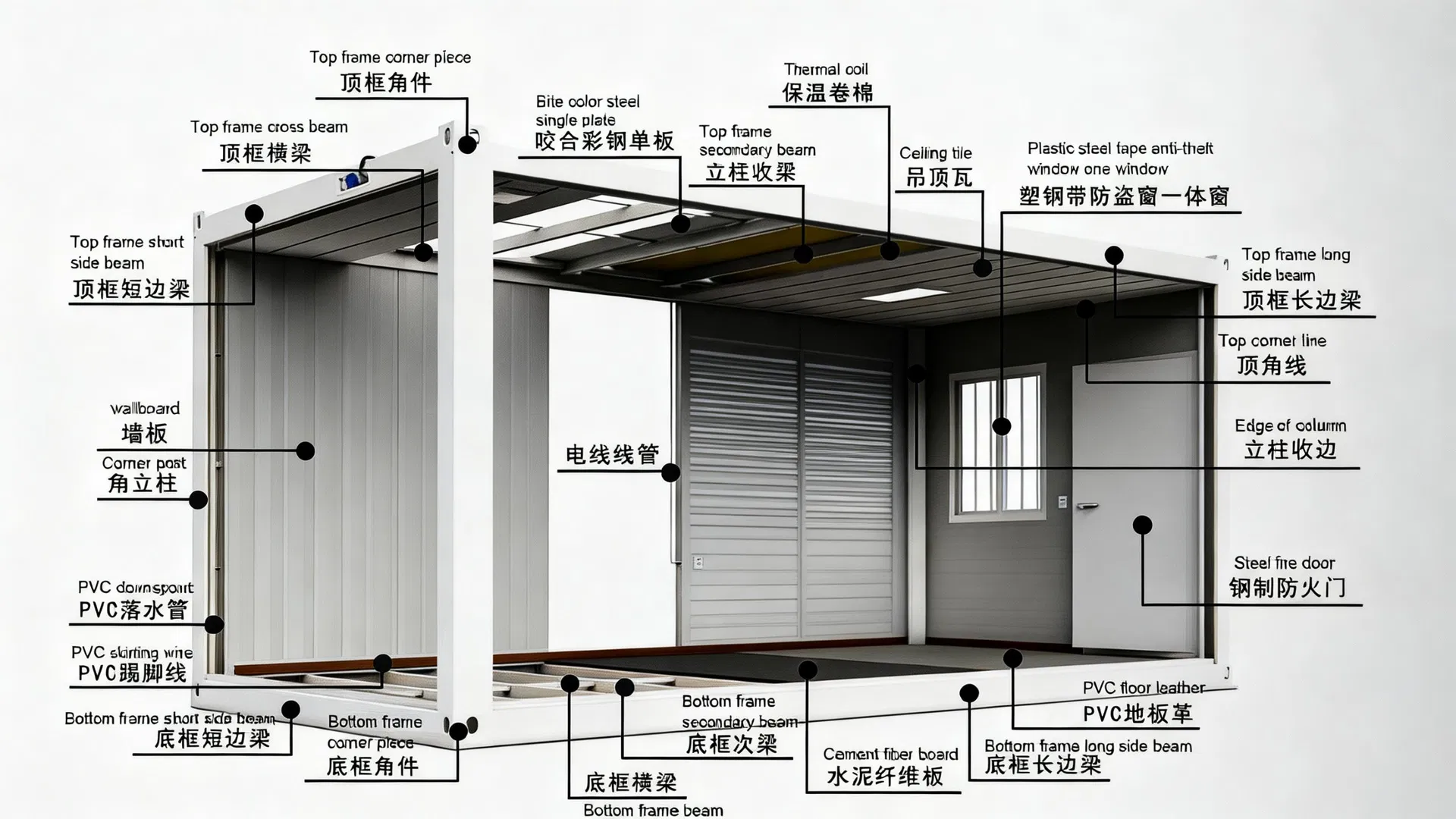

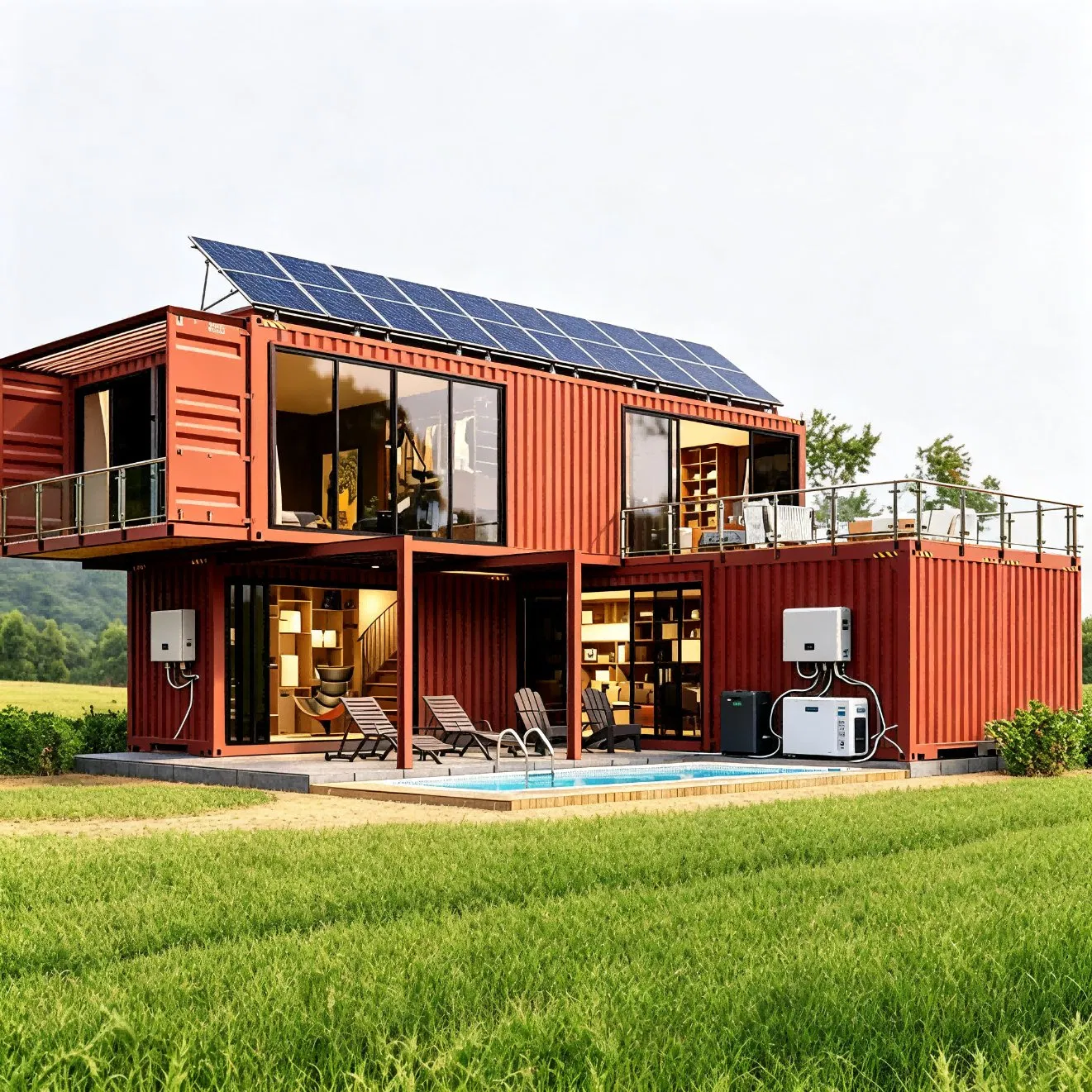

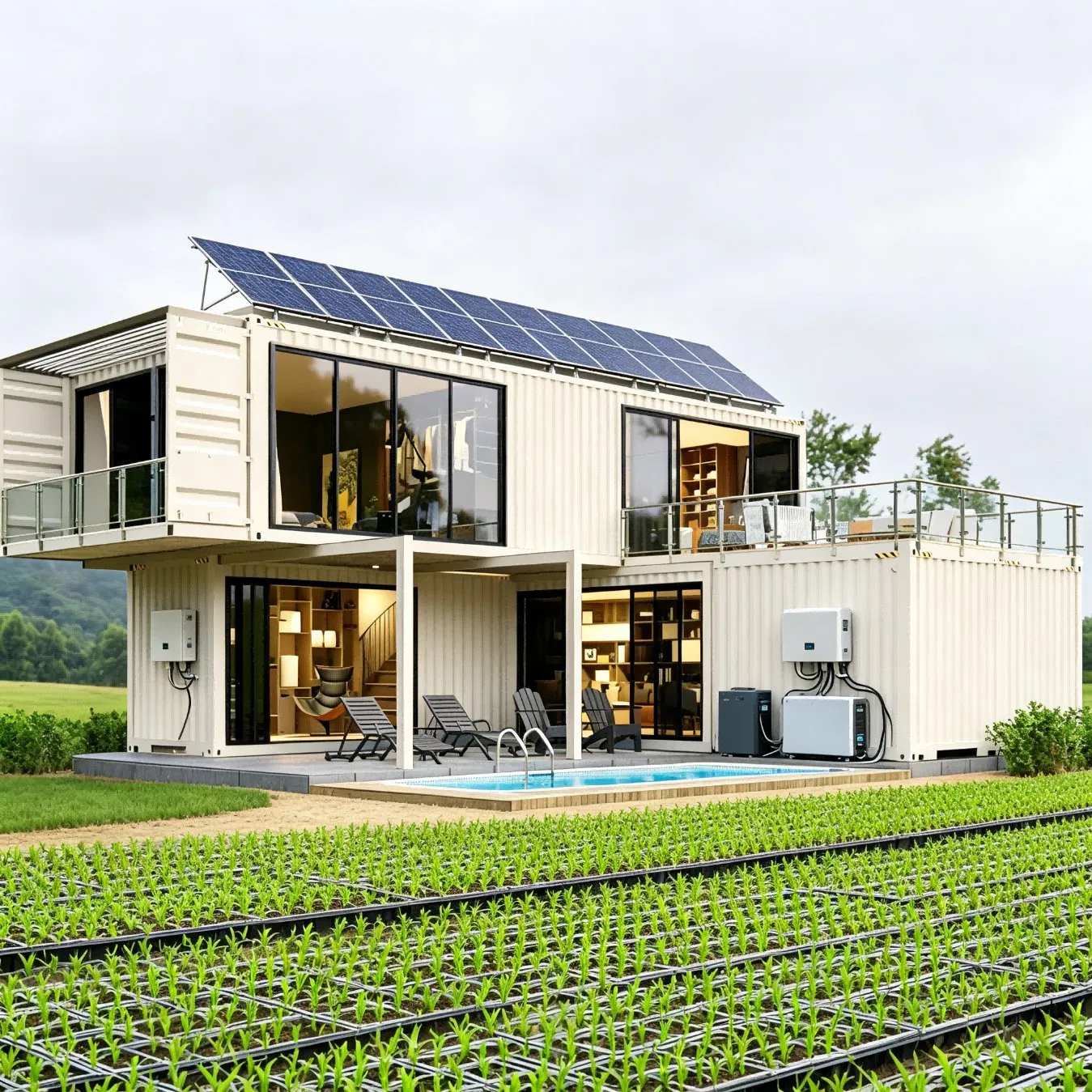

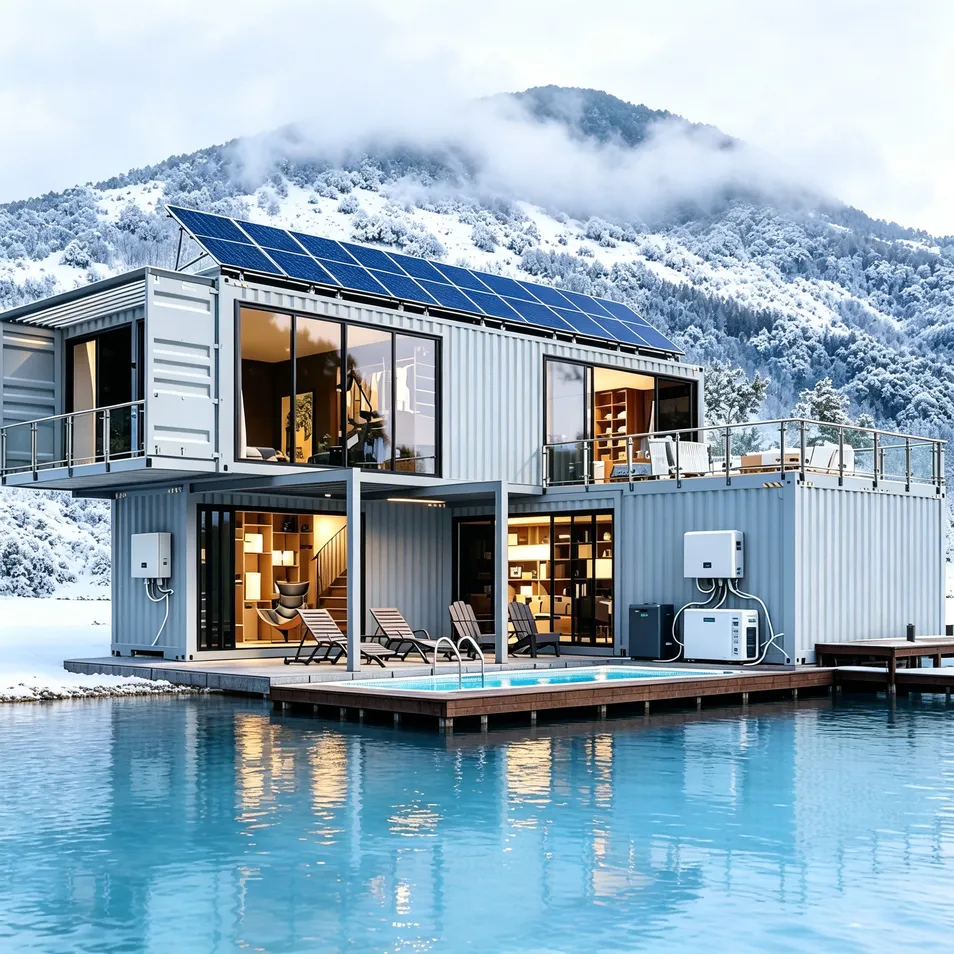

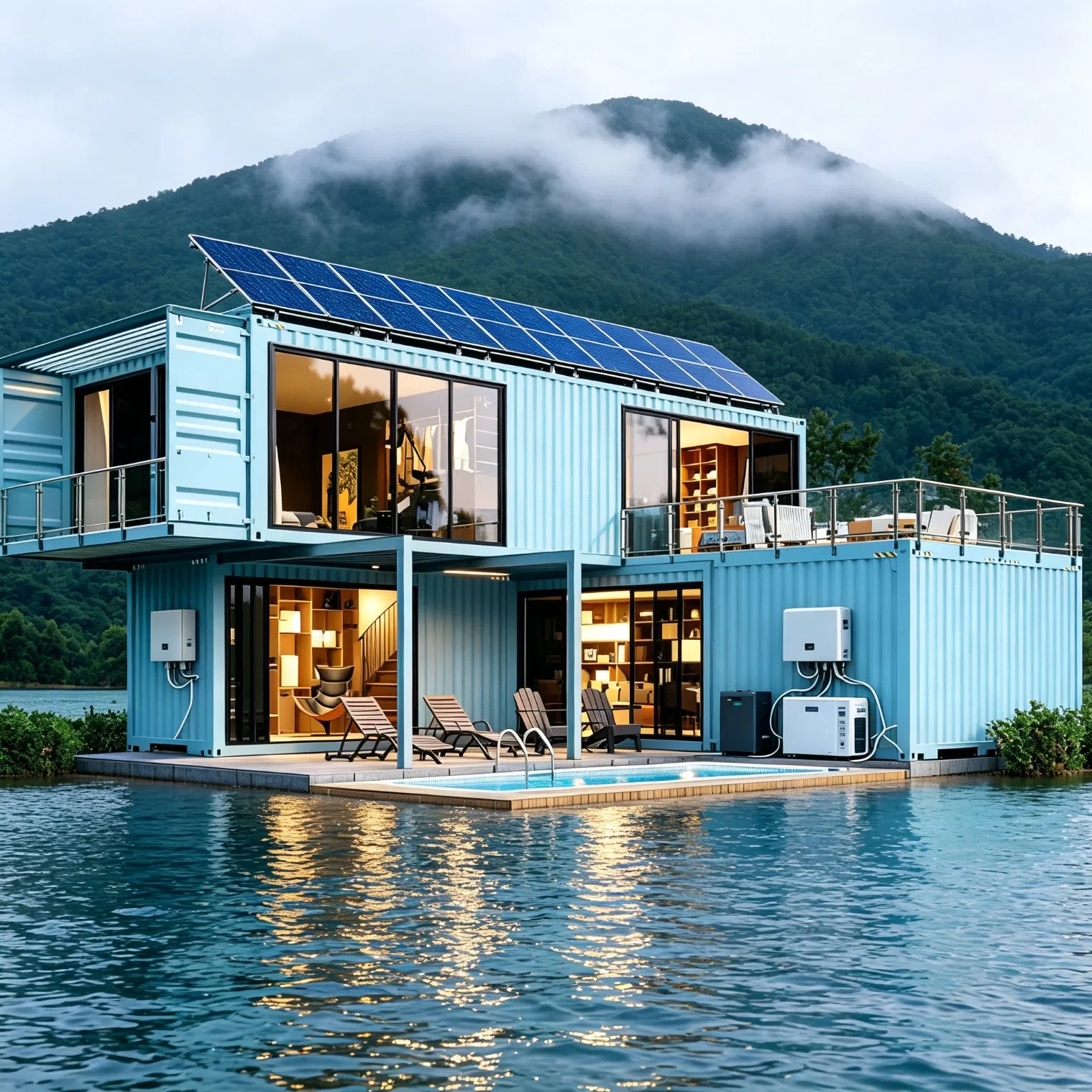

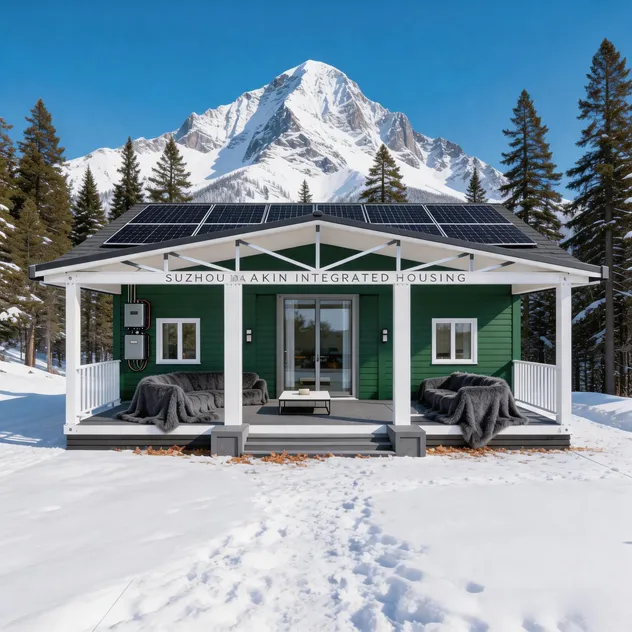

Modular Prefabricated Buildings, often referred to as modular site cabins or portable buildings, are structures constructed from pre-engineered, factory-built sections or modules.
These modules are manufactured off-site in a controlled environment, then transported and quickly assembled on-site using bolted connections. They are designed for rapid deployment, reusability, and flexibility, serving as temporary, semi-permanent, or even permanent facilities.
Common materials include a steel frame with insulated composite panels (often steel-faced with a foam or rock wool core) for walls, roof, and floor.
| Specification Feature | Details & Materials |
|---|---|
| Main Structure | 3x6x2.8m container x 2; 4x6x2.8m container x 3 |
| Main structure materials | 2.0mm thickness steel square tube, 50mm wave shaped rock wool board, 5+9+5mm double layers tempered glass |
| Application | Office / Home / Exhibition Hall / Personal studio |
| Optional | With toilets, kitchen, bedrooms, living room |
| Life of use | 25 years |

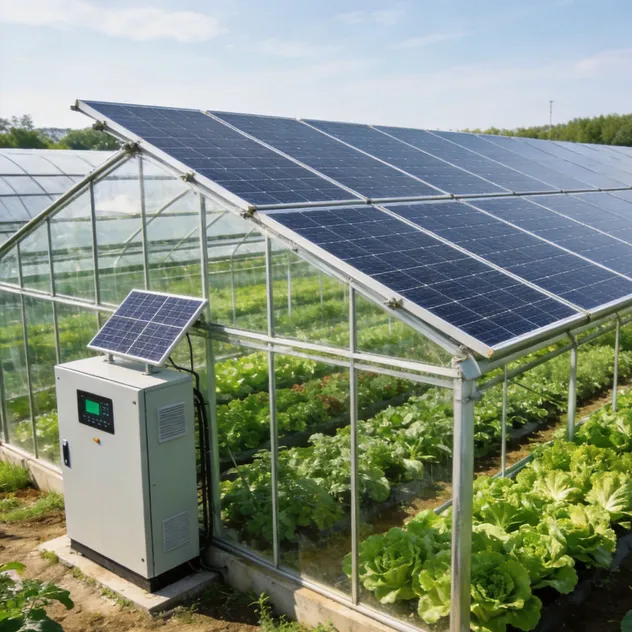

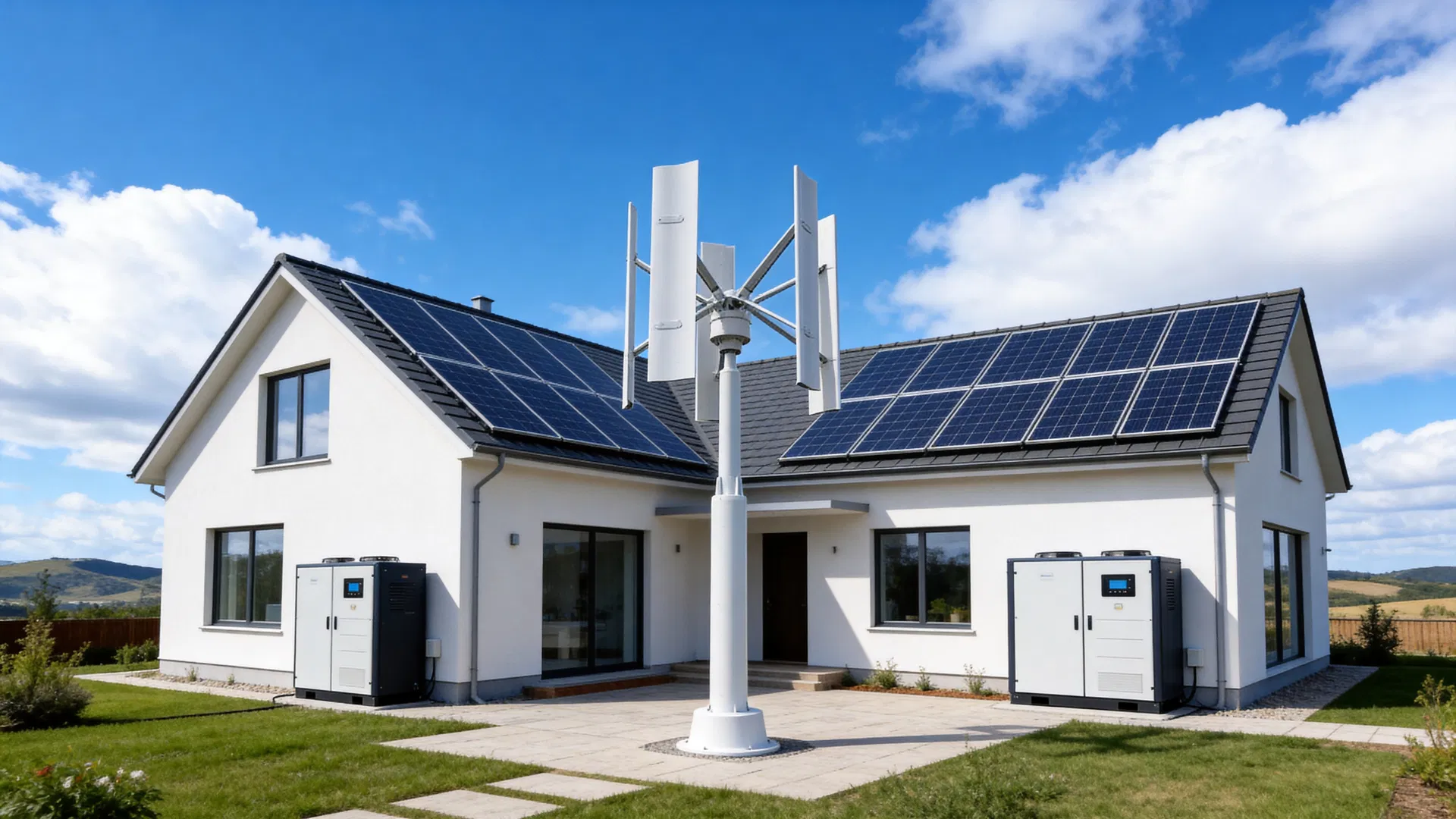

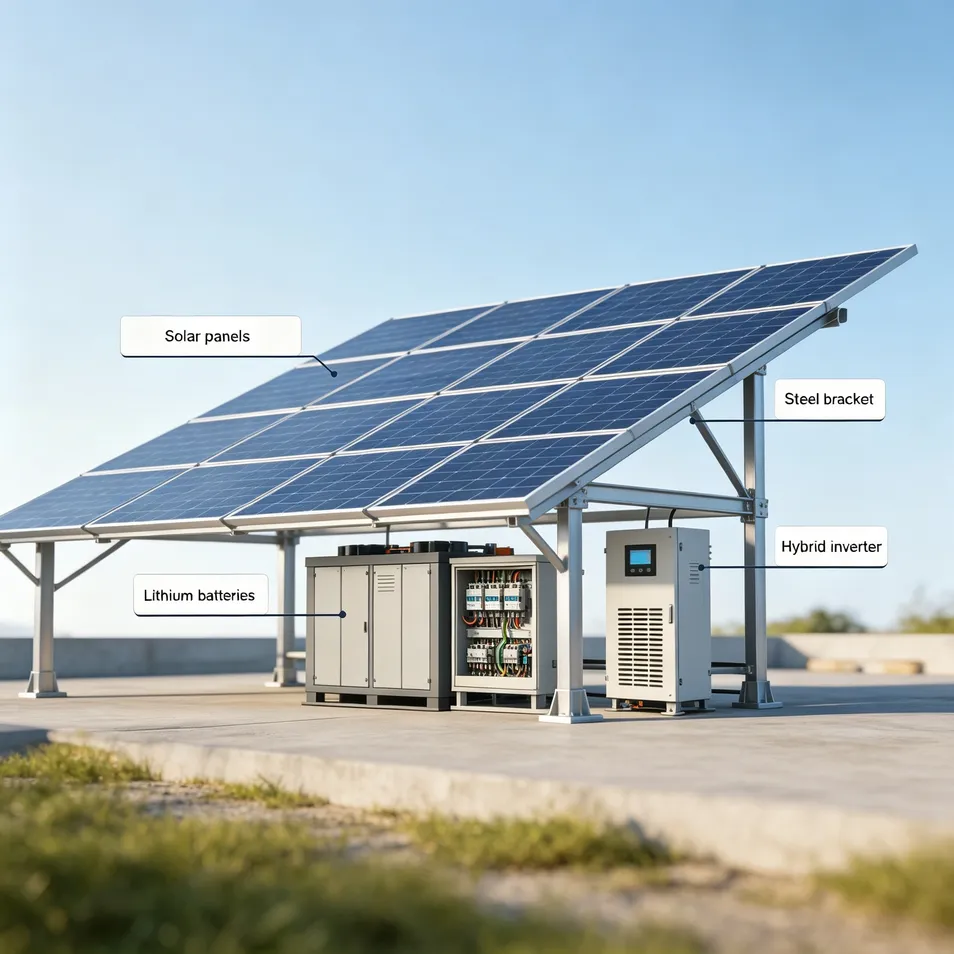

A home independent solar power system is a residential microgrid that integrates solar panels, storage batteries, and power inverters to form an independent "energy cycle system."

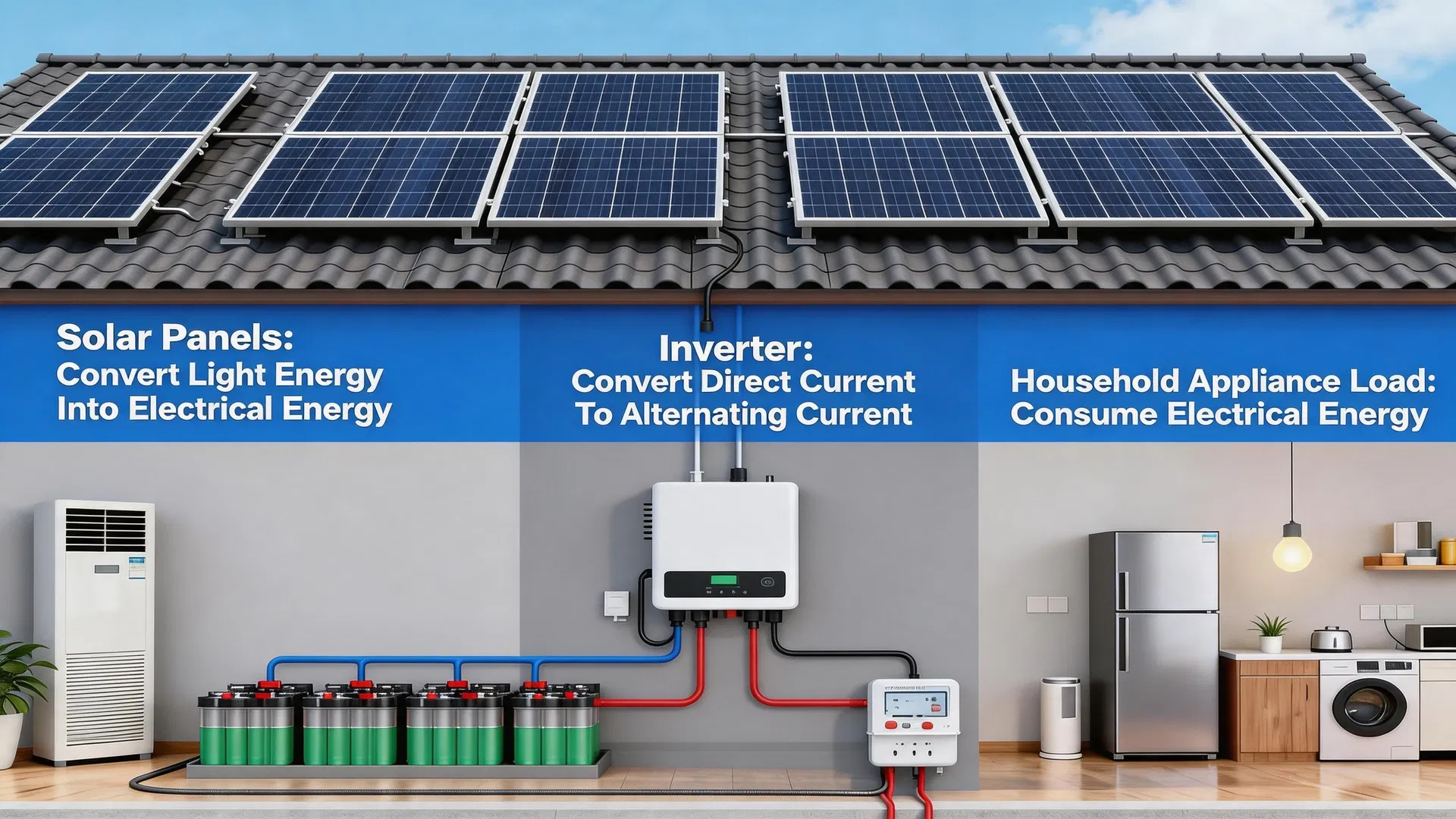

How it works: Solar panels generate DC power during the day. An inverter converts it to AC power for home appliance use, and any extra power is stored in batteries for use at night or on cloudy days.
For clients living where the power grid is inaccessible or unstable, this home solar power system provides a stable, free, and continuous power supply in any environment.
| Parameter | Specification Detail | Parameter | Specification Detail |
|---|---|---|---|
| Product Description | Home independent solar power system | Inverter type | Reverse Control All-in-One |
| Certification | ISO, CE, TUV/UL | Output Voltage | 110V/220V/230V AC |
| Specification | 10KWh~50KWh | Inverter life span | 10 Years |
| System Type | Solar power | Inverter Power | 5KW/6.2KW/12KW/24KW |
| Solar Panel Type | Topcon N | Batteries | Lithium Ion, LiFePO4 Battery |
| Way of Installation | Rooftop/ Ground/Carport | Batteries Capacity | 10KWh/16KWh/32KWh |

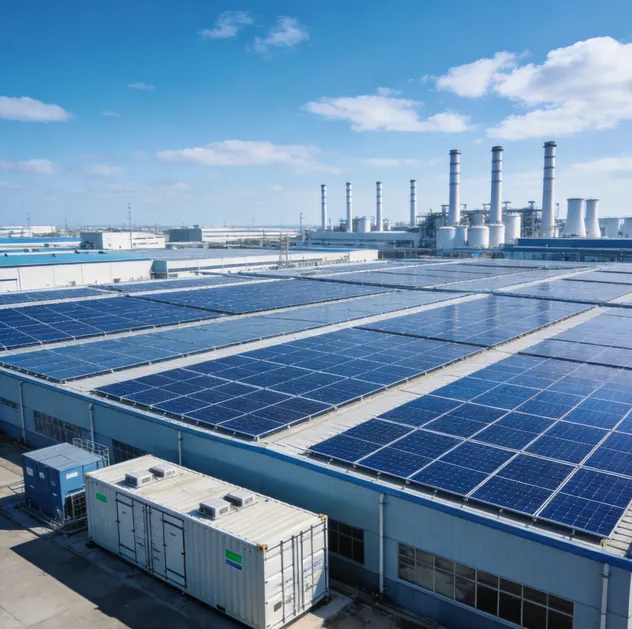

| Solar System Application | Home/Factory/Industrial/Commercial | Batteries life span | 10 Years |
| System Life Span | 30 years | Bracket | Galvanized steel |
| Solar panel power | 540W/580W/710W/740W | Wind resistant grade | Class 10 |
| No. | Model / Detail | 10KWh | 20KWh | 25KWh | 30KWh | 50KWh |
|---|---|---|---|---|---|---|
| 1 | Solar panels quantity | 580W x 4pcs | 580W x 8pcs | 580W x 10pcs | 580W x 12pcs | 710W x 18pcs |
| 2 | Hybrid inverter | 3 KW | 6.2KW | 6.2KW | 11KW | 12 KW |
| 3 | Lithium battery | 5 KWh | 10 KWh | 16 KWh | 16 KWh | 32 KWh |
| 4 | Standard PV Cables | 100m | 100m | 100m | 100m | 100m |
| 5 | Mounting kits & Control box | 1 set | 1 set | 1 set | 1 set | 1 set |
| 6 | For family size | Small 1~2 person | 2~3 person | 2~3 person | 3~4 person | 4~6 person big family |
We are a technology enterprise specializing in the development and operation of industrial and civil building materials. With over 20 years of profound professional accumulation in building materials development, our team has a deep and comprehensive understanding of performance characteristics, market dynamics, and application scenarios of various building materials.
Utilizing this vast experience, we have successfully developed comprehensive residential designs. This business aligns our unique insights in new building materials with industry trends. From material procurement to construction, the entire process is managed efficiently, reducing potential risks and tailoring economic, practical, and modern green housing solutions that save customers time, energy, and money.
We are not only building structures, but also providing future-oriented lifestyle solutions. Share your site conditions with us, and we will provide customized layout designs.
