| Model NO. | F1 |
| Fast Installation | Fast Installation |
| Feature | Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof, Wind Resistance |
| Material | Sandwich Panel |

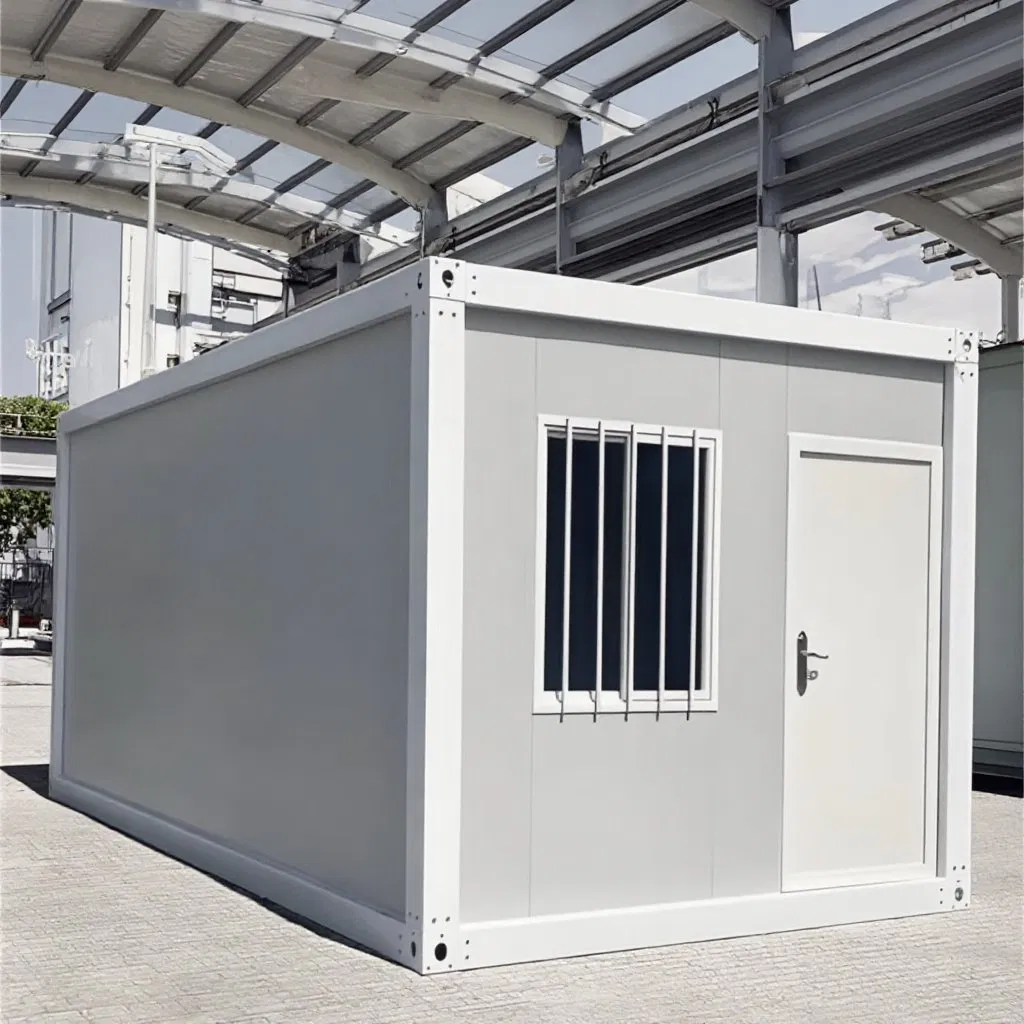

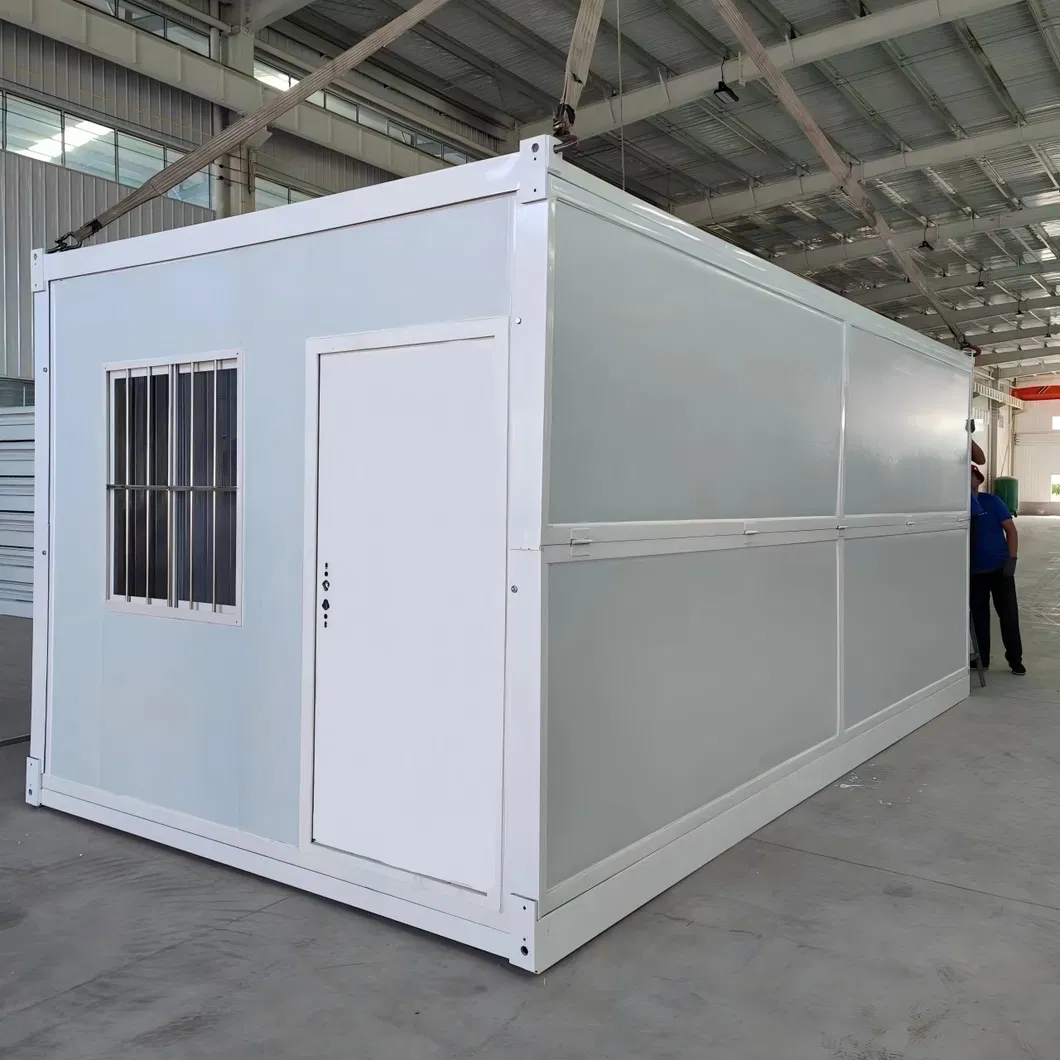

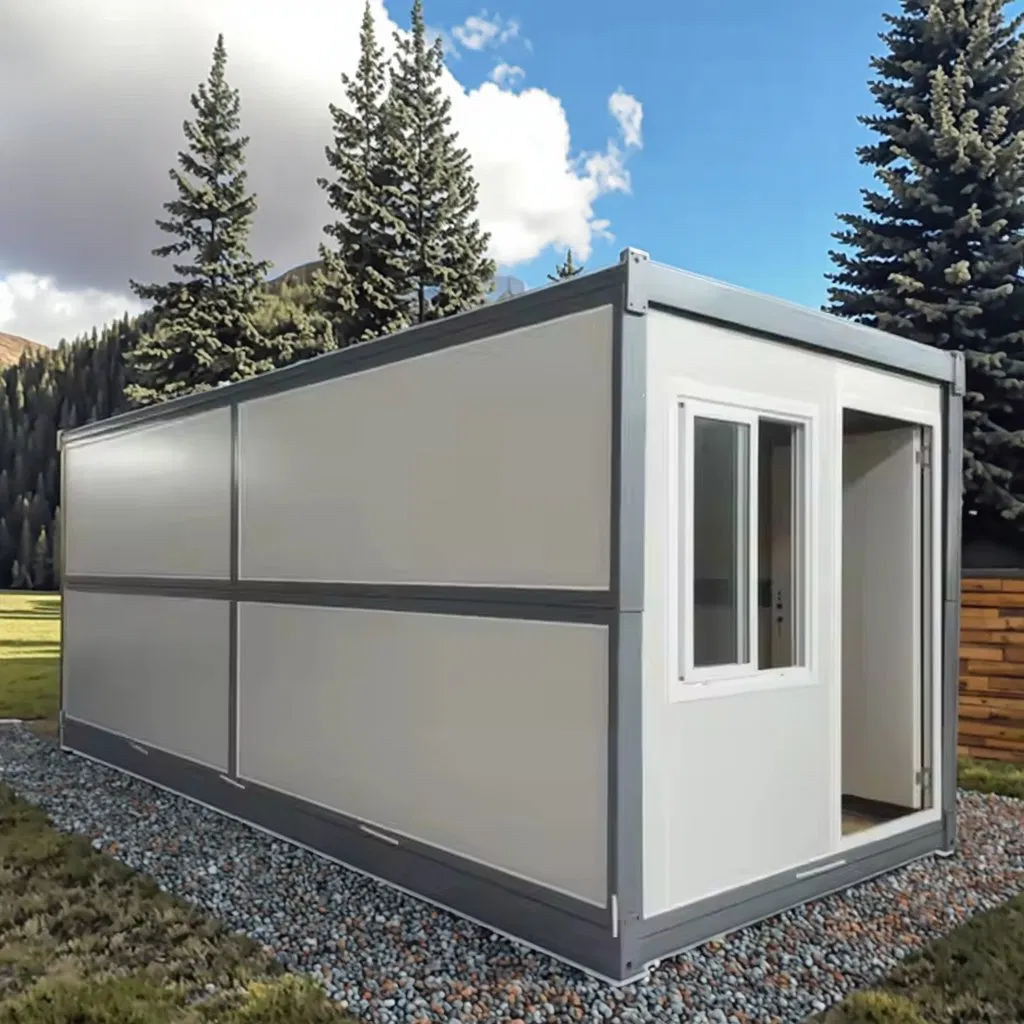

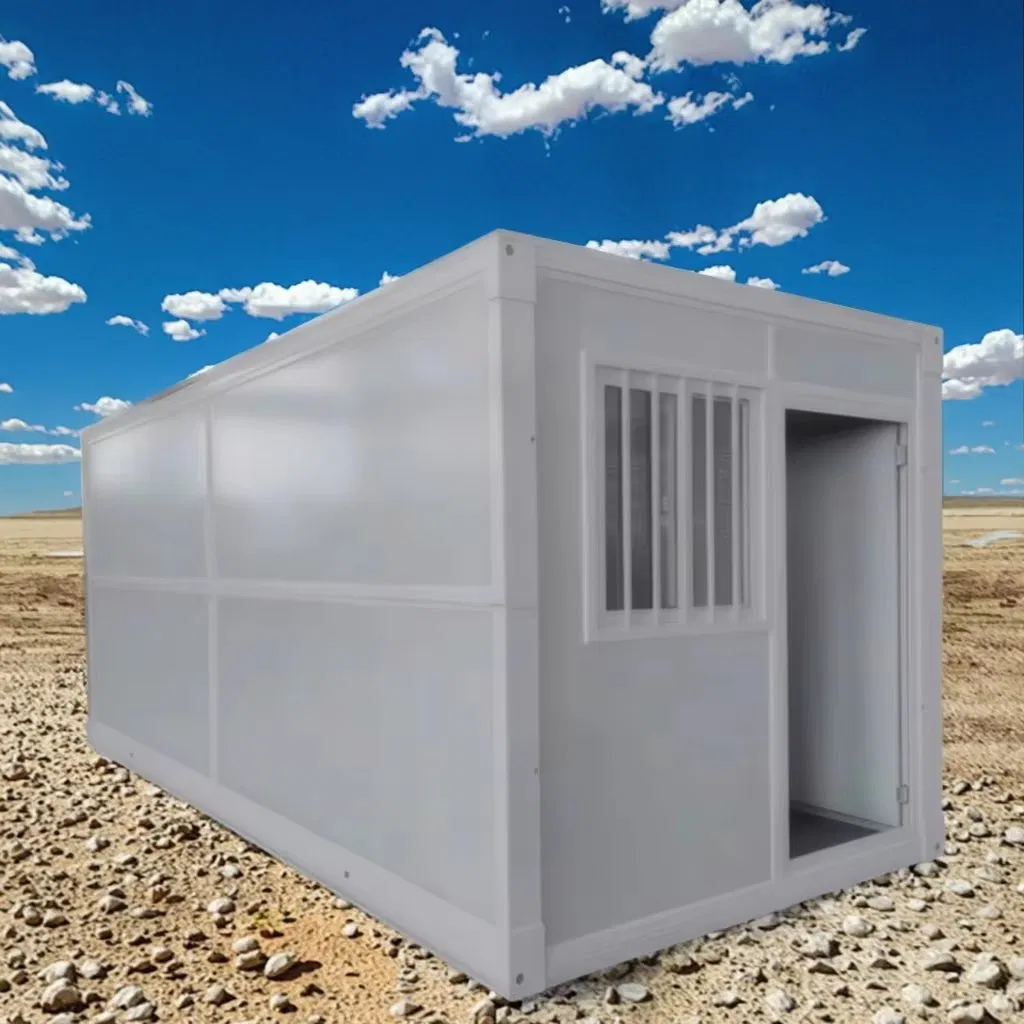

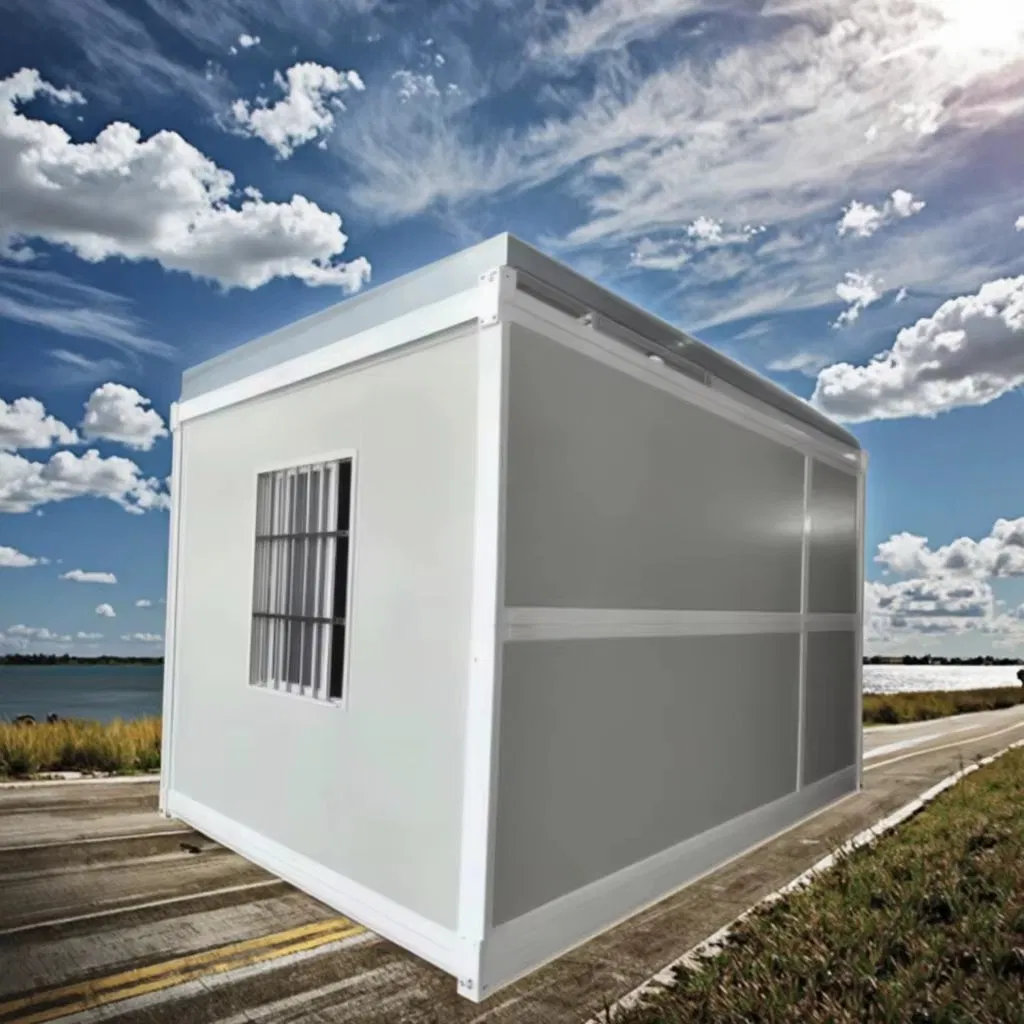

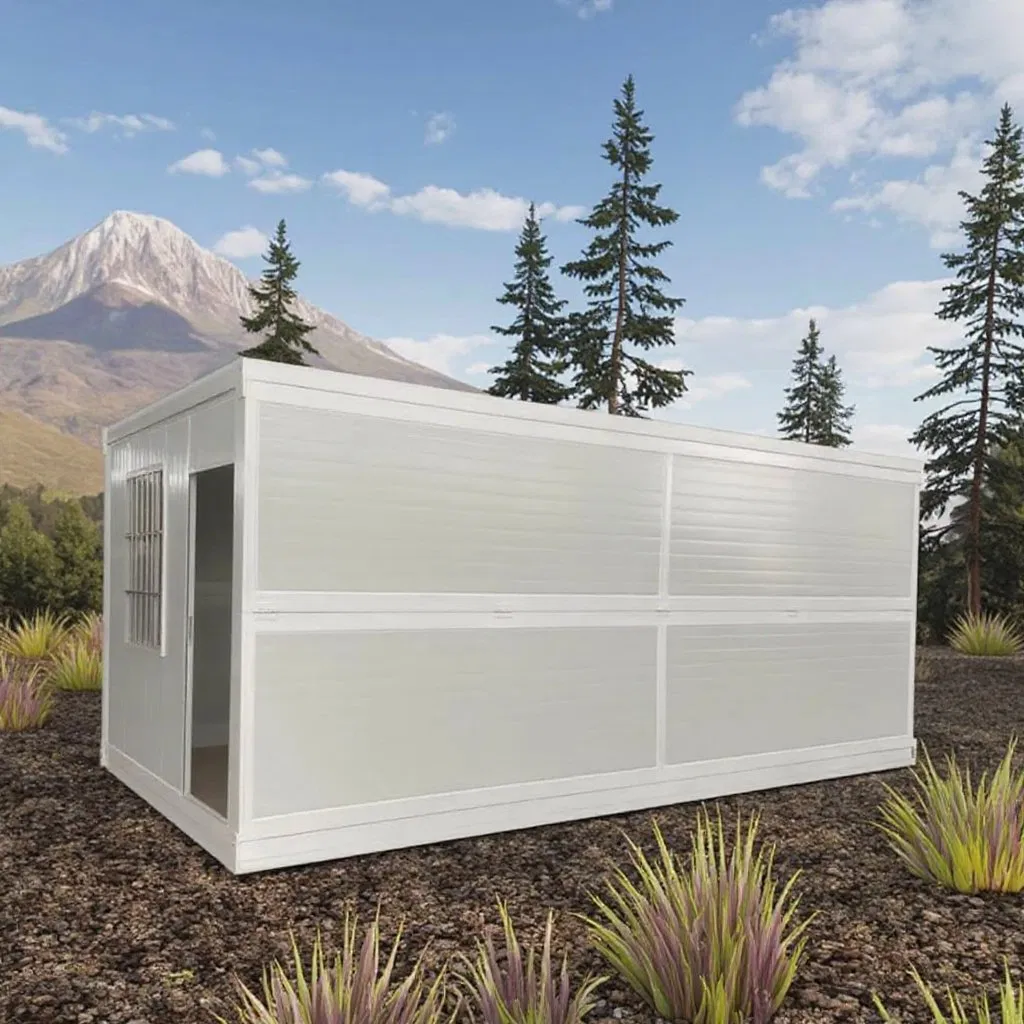

| Product Name | Folding Container House |
| Occupants | Two People |
| Advantage | Environmental Protection Low Cost Recycle |
| Keyword | Luxury Prefabricated Houses |
| Usage | Multi-Function |
| Main Material | Main Material |
| Transport Package | Bubble Wrap |
| Specification | Standard |
| Trademark | HFM |
| Origin | Hubei, China |
| HS Code | 9406900090 |
| Production Capacity | 100 Sets/Month |
| Package Size | 590.00cm * 250.00cm * 36.00cm |
| Package Gross Weight | 1130.000kg |

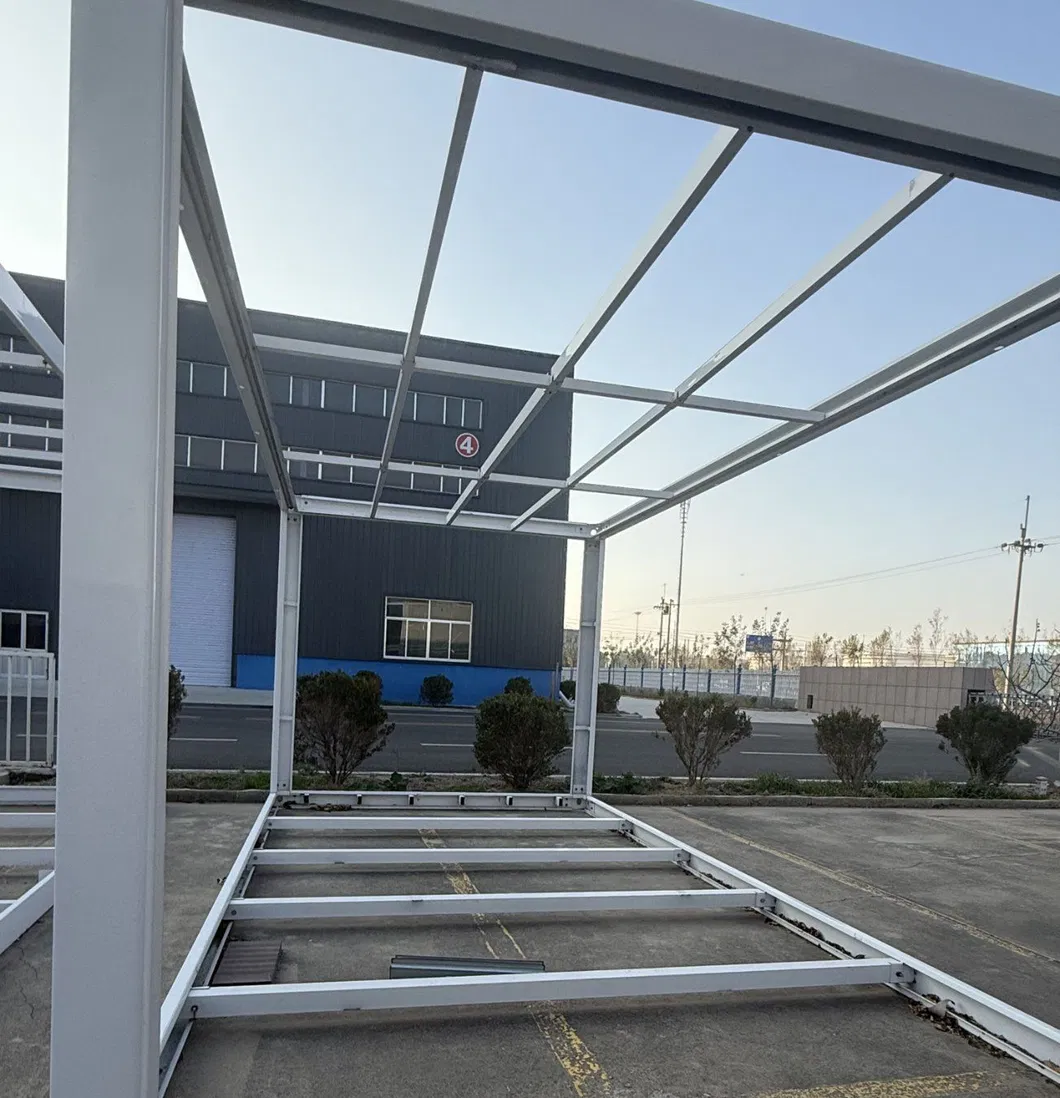

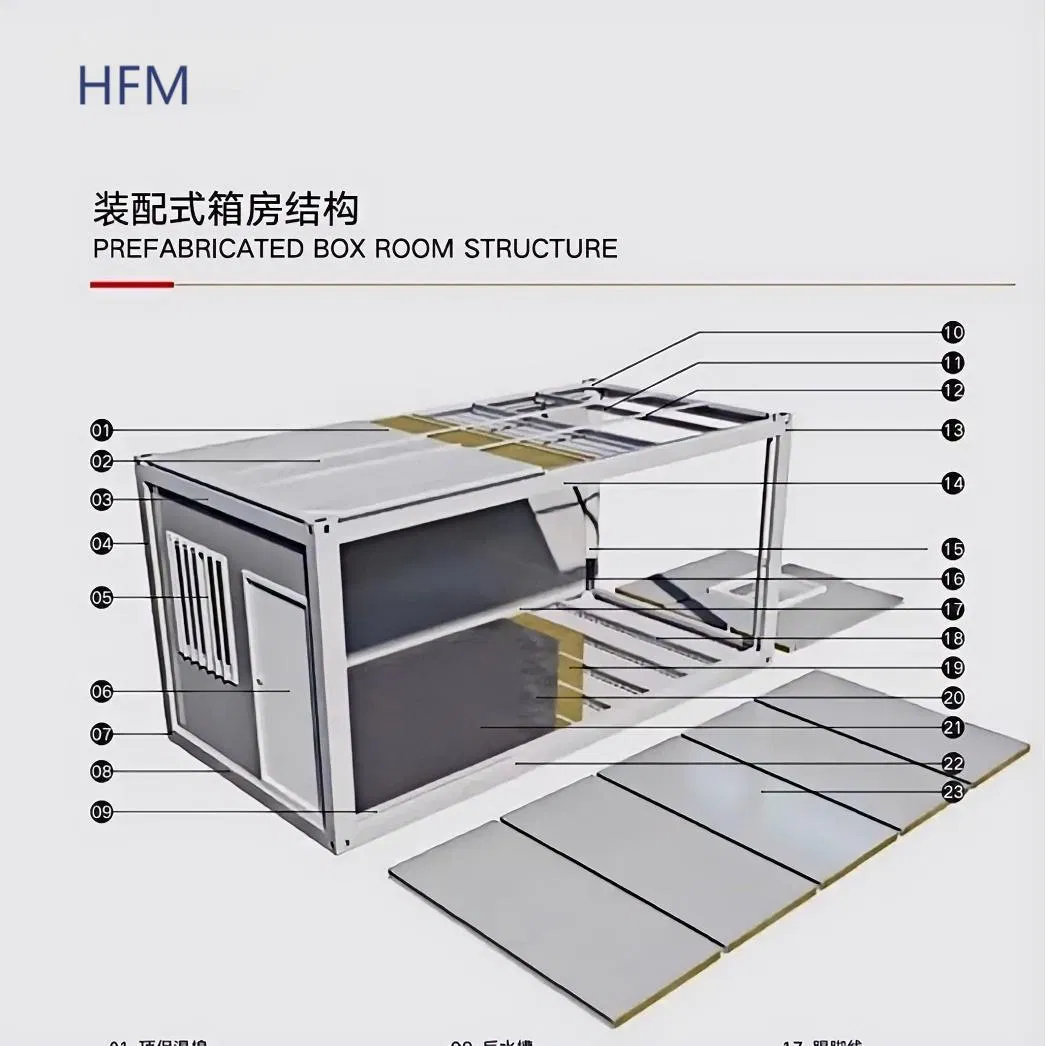

| Type | Specification | Material Name | Model | Thickness (mm) |
|---|---|---|---|---|
| Framework (Top Frame) | Top frame | Galvanized special mother and child profile | 5800 | 1.5 |
| Painted square tube | 60*60*2365 | 1.5 | ||
| L-shaped guard plate | 120*16*2288 | 2.0 | ||
| Galvanized Square Tube | 50*50*2365 | 1.8 | ||
| Galvanized Square Tube | 30*50*1380 | 1.2 | ||
| Galvanized hanging head | 200*100 | 10.0 | ||
| Galvanized hanging head | 100*80 | 6.0 | ||
| Framework (The 6-meter side) | The 6-meter side | Galvanized special mother and child profile | 5790 | 1.5 |
| Galvanized special mother and child profile | 5790 | 1.5 | ||
| 50 wall panel slots | 77*60*50*974 | 1.5 | ||
| L-shaped guard plate | 120*16*1113 | 2.0 | ||
| L-shaped guard plate | 120*16*1093 | 2.0 | ||
| Hinge (Stainless steel shaft) | - | 3.0 | ||
| Hinge (Standard shaft) | - | 3.0 |
| Type | Specification | Material Name | Model | Thickness (mm) |
|---|---|---|---|---|
| Framework (The 3-meter side) | The 3-meter side | Galvanized special mother and child profile | 2327 | 1.5 |
| Galvanized Square Tube | 60*60*1920 | 1.5 | ||
| Galvanized Square Tube | 60*60*2207 | 1.5 | ||
| Angle iron | 20*20*2500 | 1.2 | ||
| Hinge (Standard shaft) | - | 3.0 | ||
| Sealing strip | - | - | ||
| Framework (Bottom Frame) | Bottom frame | Galvanized special mother and child profile | 170*5800 | 2.0 |
| Galvanized special mother and child profile | 2485 | 1.8 | ||
| Bottom secondary beam | 40*80*2485 | 1.2 | ||
| Bottom reinforcement square tube | 60*60*560 | 1.8 | ||
| Bottom reinforcement square tube | 60*60*170 | 1.8 | ||
| Hanging head | 220*100 | 14.0 | ||
| Box top | Frame Color | Electrostatic spraying/direct white powder | ||
| External roof | 980 color steel Z-shaped single board 0.4*2453*6 sheets glass wool 15 square meters | |||
| Internal ceiling | 831 color steel ceiling tile 0.3*2330*7 pieces, 20*20 angle iron 5800*3 pieces | |||
| Wall Panels | The 6-meter side | 1150 type 5 cm rock wool composite board, double-sided 0.3/0.3, bulk density 70 kg, double-sided orange peel texture | ||
| The 3-meter side | 950 type 5cm rock wool composite board, double-sided 0.3/0.3, bulk density 70kg, double-sided orange peel texture | |||
| Floor | - | Cement sanding board 18mm | ||
| Electric Distribution | - | Electrical wiring, strictly installed in accordance with moisture-proof specifications, connect circuits according to circuit engineering specifications, indoor: incoming line 6.0²*4m, 1 63A leakage protector, 1 distribution box, 1 three-hole air-conditioning socket * 4²*2m, socket incoming line 2.5²*11m, lamp line 1.5²*3.5m, 1 single-opening with five holes, 1 five-hole socket, 1 LED strip light, 2 meters of wire trough, 1.5m of threading tube | ||

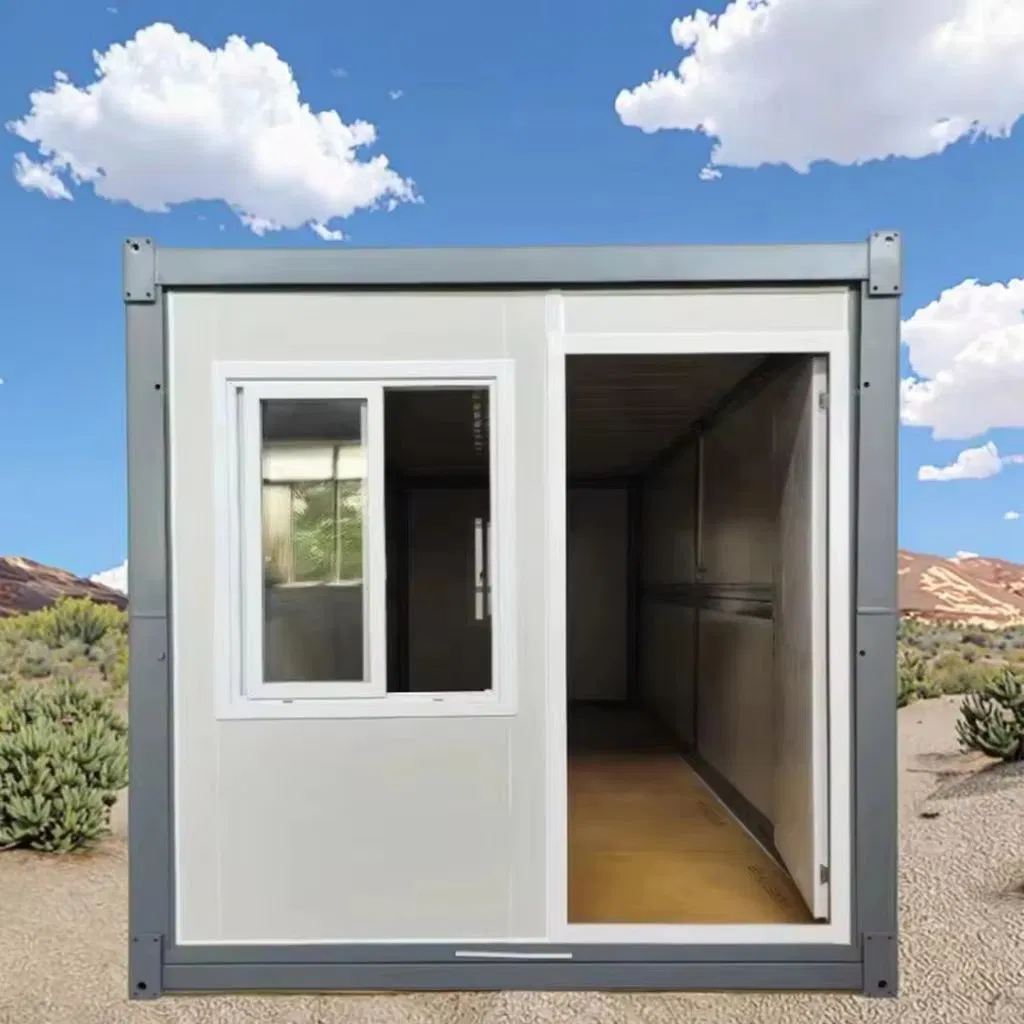

| Special doors, windows | - | High-quality special flat door, size: 950mm*1970mm 1 set. Aluminum alloy anti-theft window, 950*1230mm 2 sets. | ||
