| Product model |
20 feet |

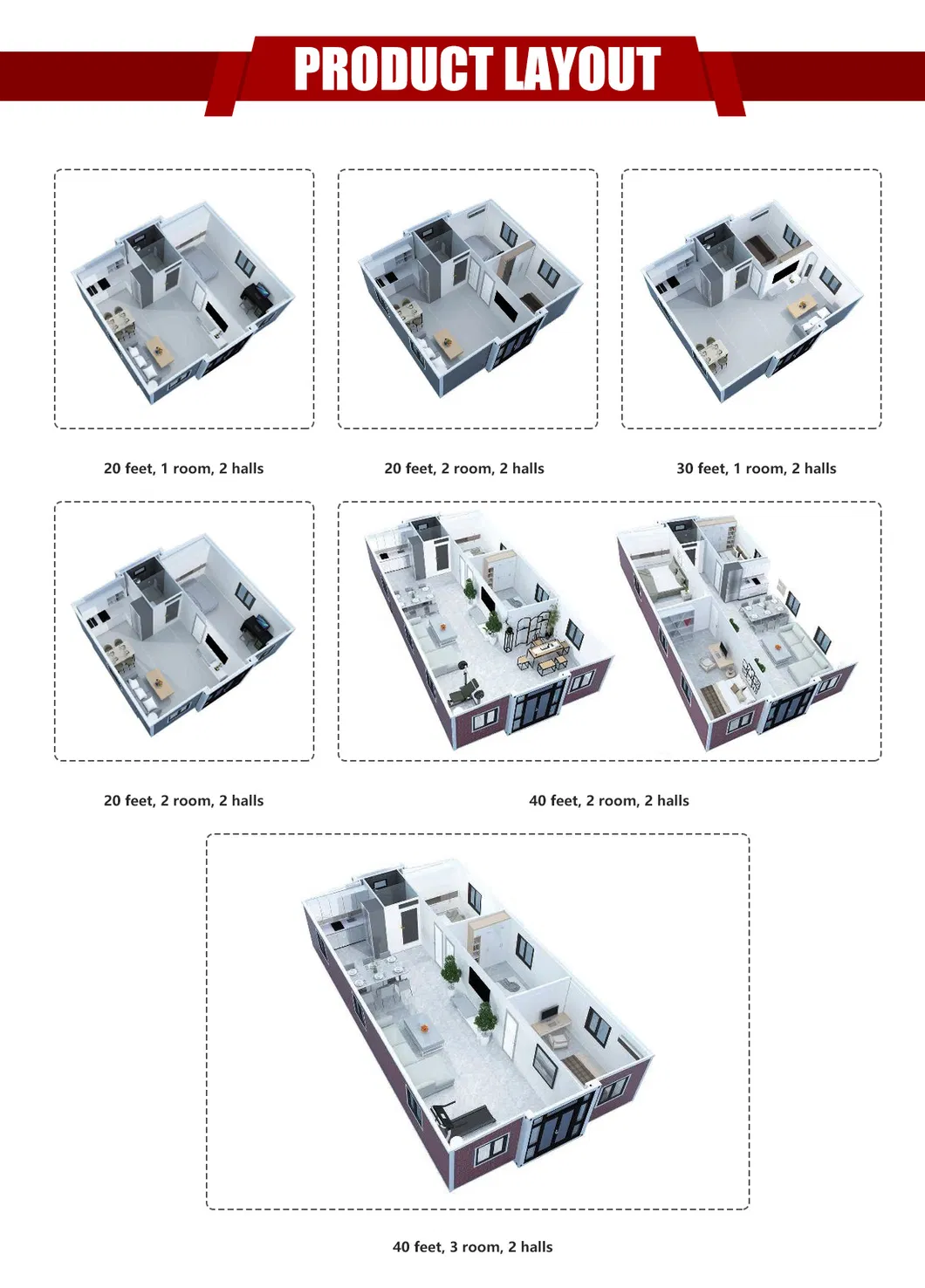

House type |
One Hall |
| Expanded size |
L5900*W6420*H2450 |
Number of people accommodated |
2-4 people |
| Internal dimensions |
L5740*W6260*H2250 |
Power consumption |
12KW |
| Folded Size |
L5900*W2200*H2450 |
Total net weight |
3.1 tons |
| Floor area |
38m² |
| No. |
Name |
Content |
Specifications |
| 1 |

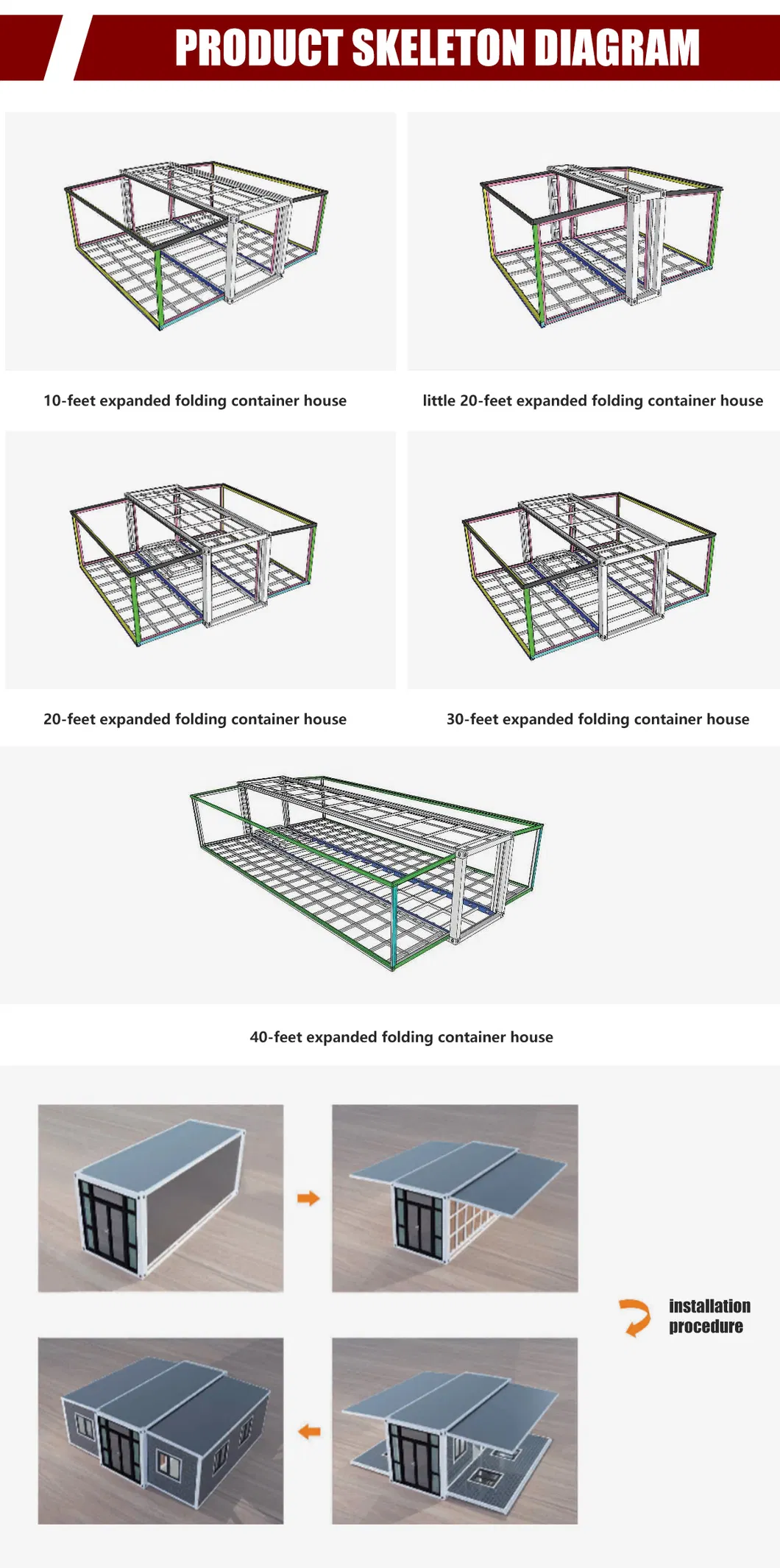

Main frame (fully galvanized) |
Top side beam |
80*100*3.0mm square tube outsourcing 2.0 bending parts |
| 2 |
Top beam |
80*100*3.0mm square tube wrapped with 2.0 bending parts |
| 3 |
Bottom side beam |
80*100*3.0mm square tube wrapped with 2.0 bending parts |
| 4 |
Bottom beam |
80*100*3.0mm square tube wrapped with 2.0 bending parts |
| 5 |
Hanging head |
12.8 Portable Steel Anti detachment Hook |
| 6 |
Steel column |
80*100*3.0mm square tube outsourcing 2.0 bending parts |
| 7 |
Side frame (fully galvanized) |
Top frame |
50*100*2.5mm square tube outsourcing 2.0 bending parts |
| 8 |
40*80mm*1.8mm P-shaped pipe |
| 9 |
Bottom frame |
80*100*3.0mm square tube outsourcing 2.0 bending parts |
| 10 |
Folding hinge |
130mm galvanized hinge |
| 11 |
Overall framework protective coating |
Spray |
Electrostatic spray molding/straight white plastic powder |
| 12 |
Roof |
Main external top plate |
T50mm EPS color steel plate+corrugated veneer t0.4mm |
| 13 |
Outer top plate of the side wing |
T100mm EPS color steel plate+corrugated veneer t0.4mm |
| 14 |
Internal ceiling panels |
200 type ceiling panel |
| 15 |
Wallboard |
Side walls, front and rear |
T65mm EPS color steel plate |
| 16 |
Inner partition board |
T50mm EPS color steel plate |
| 17 |
Ground |
Center floor |
18mm thick fireproof cement fiber floor |
| 18 |
Floor on both sides |
Bamboo plywood 18mm thick |
| 19 |
Doors and windows |
Plastic steel sliding window |
920*920mm |
| 20 |
Steel single door |
840*2030mm |
| 21 |
Electrical system |
Circuit breaker system |
One 32A leakage protector. Voltage 220V, 50HZ |
| 22 |
Light |
Bull 30*30 flat lamp, large ceiling lamp |
| 23 |
Socket |
Standard international three hole and five hole sockets (socket standards can be configured according to customer requirements) |
| 24 |
Light Switch |
Double open, single key switch (switch standard can be configured according to customer requirements) |
| 25 |
Wiring |
Incoming Line 6², Air conditioning socket 4², Ordinary socket 2.5², Lighting 1.5² (Circuit that meets certification requirements can be customized according to the country) |
| 26 |
Accessory |
Including top corner line skirting line corner wrapping waterproof tape sling structural adhesive and glue gun |
