Product Description
With professional knowledge, rich experience, to provide the most suitable solutions. We focus on the research and development of steel structure buildings, constantly innovate and improve the wind and rain resistance performance, extend the life-span as much as possible, so that realize the long-term investment value for customers. When planning your industrial building project, choosing prefabricated steel structure is the wisest decision. It outperforms traditional concrete and wood construction in all key aspects including speed, cost, space and durability.
Factory prefabrication + on-site assembly, no concrete curing needed, weather-resistant, earlier operation and profit.
Lower initial cost, reduced foundation expense, minimal maintenance, high steel residual value.
Large-span column-free design, thinner walls, more usable area for the same footprint, higher land utilization.
Wind, seismic and snow resistant, 50+ year service life; 100% recyclable, low construction pollution, meets global green standards.
Factory automated standardized production with strict QC, completely eliminates on-site construction errors and quality variations.
Customized design and static analysis can be provided according to the concept proposed by customers and strictly in accordance with the national design code. Also they can be produced according to the drawing from customer.

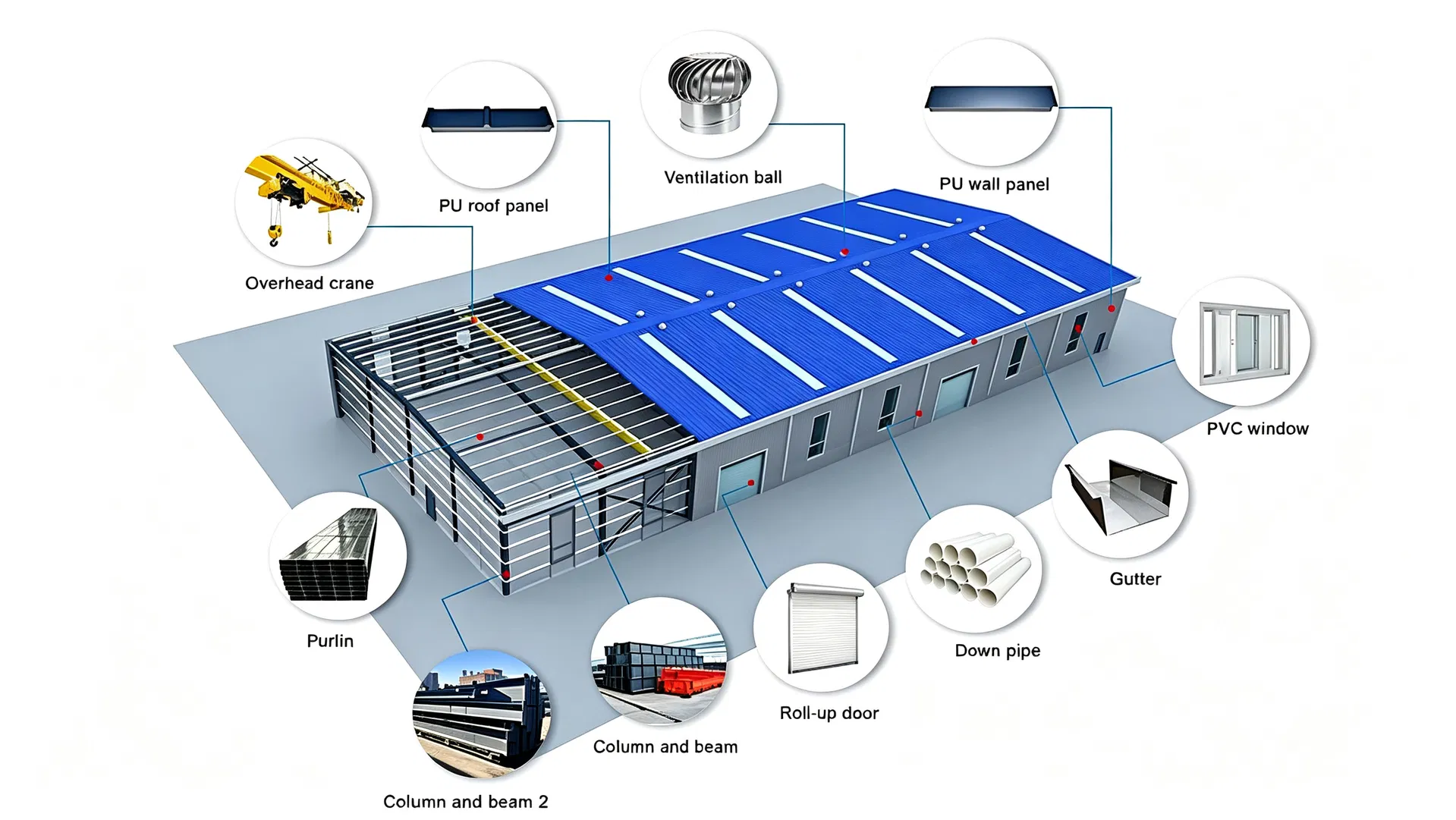

Specification
| Parameter |
Details & Options |
| Main Steel Structure (Columns & Beams) |
1. Material: Q235B / Q355B (S235JR / S355JR) H-section carbon steel 2. Cross-section: Straight / Variable cross-section, fully customizable 3. Finish: Hot-dip galvanized or anti-rust painted, compliant with GB/ASTM/EN standards |
| Secondary Steel Structure |

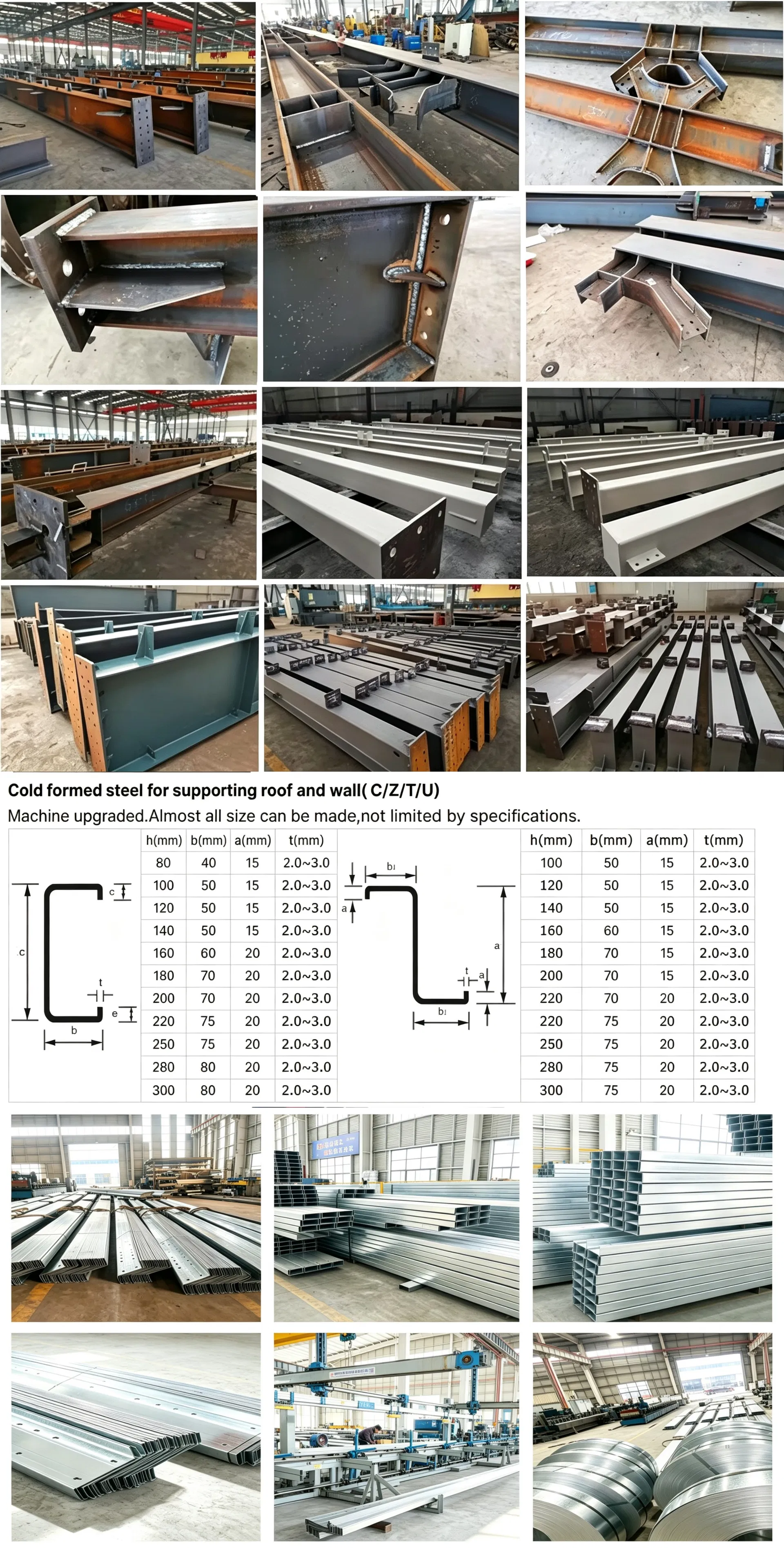

1. Material: Q235B carbon steel 2. Connections: Bolted (welded optional), with anti-rust treatment 3. Bracing: X-type / V-type angle or round pipe bracing 4. Purlin: C/Z type, sizes C80~C320 / Z120~Z300 |

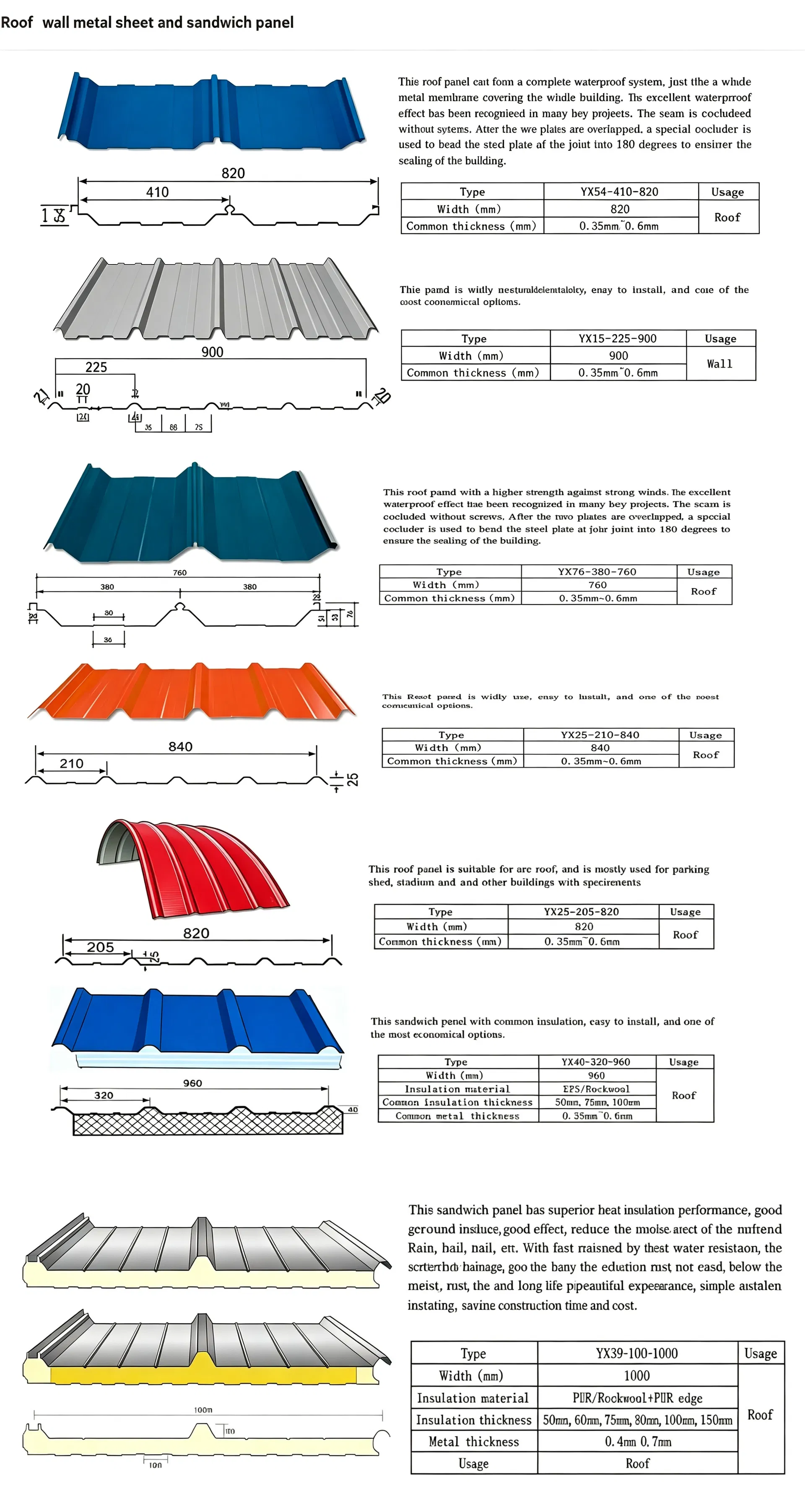

| Roof System |
1. Option 1: Single-layer color steel sheet (hot-dip galvanized, anti-corrosion) 2. Option 2: Insulated sandwich panel (core: PU/EPS/rock wool/fiberglass) 3. Features: Leak-proof seam design, suitable for coastal/high-humidity areas |
| Wall System |
1. Option 1: Single-layer color steel sheet (hot-dip galvanized) 2. Option 2: Insulated sandwich panel (core: PU/EPS/rock wool/fiberglass) 3. Custom brick wall enclosure available per local building codes |
| Doors |
Galvanized steel material, optional roller shutter door / sliding door / fire-rated door, customizable size |
| Windows |
Aluminum alloy double-glazed window, energy-saving and anti-corrosion, customizable size |
| Edge Cover |
0.5mm thick color coated steel sheet (color steel plate), with hot-dip galvanized substrate + polyester coating, anti-rust, anti-corrosion and waterproof, compatible with the overall anti-corrosion system of color steel roof/wall panels, for enclosure seam sealing |
| Bolts & Fasteners |
1. High-strength galvanized bolts (Grade 8.8/10.9) 2. Embedded anchor bolts (M16~M24) for foundation connection 3. Special self-tapping screws for panel installation |
| Core Performance (Warehouse-Specific) |
1. Wind resistance: Grade 12 (120km/h) 2. Seismic resistance: Grade 8 3. Roof load capacity: Customizable (0.3~1.5kN/sq.m snow/equipment load) 4. Design service life: 50+ years |
| Optional Accessories |
Skylight panel, roof ventilator, downspout, gutter system, crane beam, insulation upgrade, anti-corrosion coating |
| Foundation |
Concrete foundation with embedded steel anchor bolts, customized to local soil conditions |
| Certifications |
Compliant with ISO 9001, CE, EN 1090, AWS certifications, supporting global export |

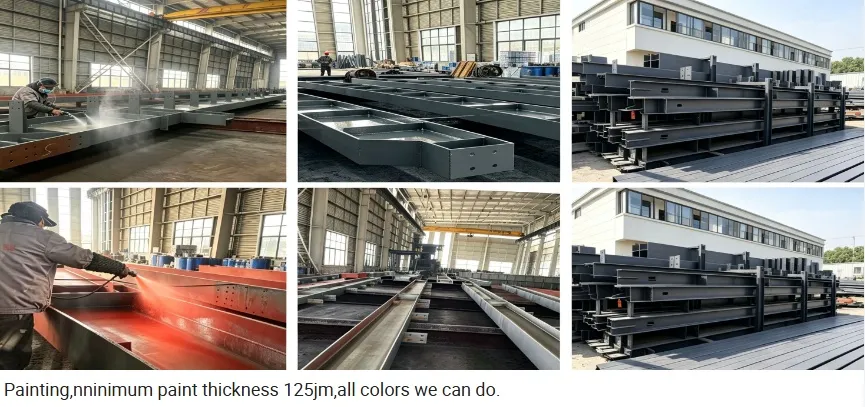

Main Frame Steel
With patented production technology ISO quality management system, all steel members with perfect welding and accurate dimensions, without any defect on the site to ensure the installation fast and easy.
Corrosion Protection & Surface Treatment
The corrosion of steel can be considered as an electrochemical process that occurs in stages. It requires the simultaneous presence of water and oxygen. As long as either of the conditions does not exist, corrosion will not occur. The purpose of anti-corrosion is to isolate oxygen and water. Our simple and effective solutions include high-grade metal coating and non-metal coating.

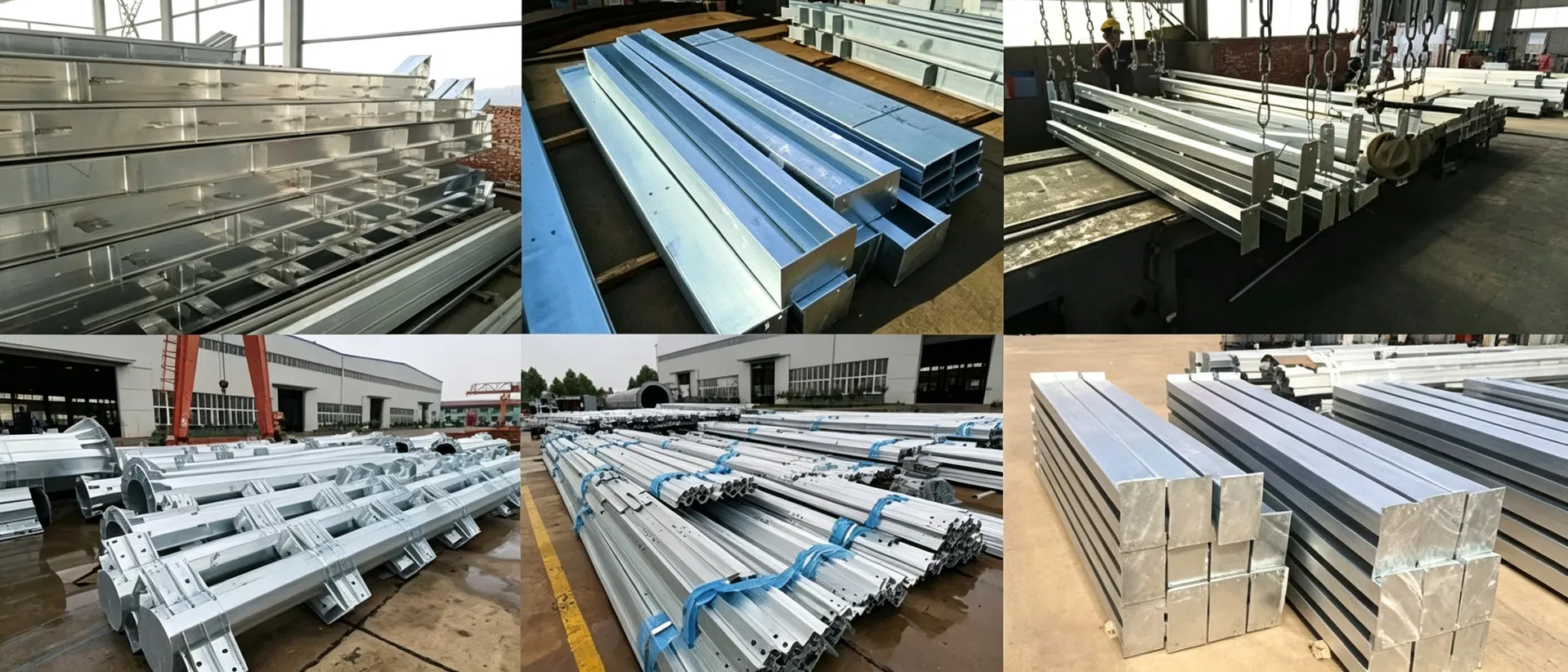

Hot-dip galvanized: our standard is that the average zinc thickness is not less than 85µm (606g/sqm). The maximum zinc thickness can be more than 100µm (713g/sqm).
Important Details Easily Overlooked

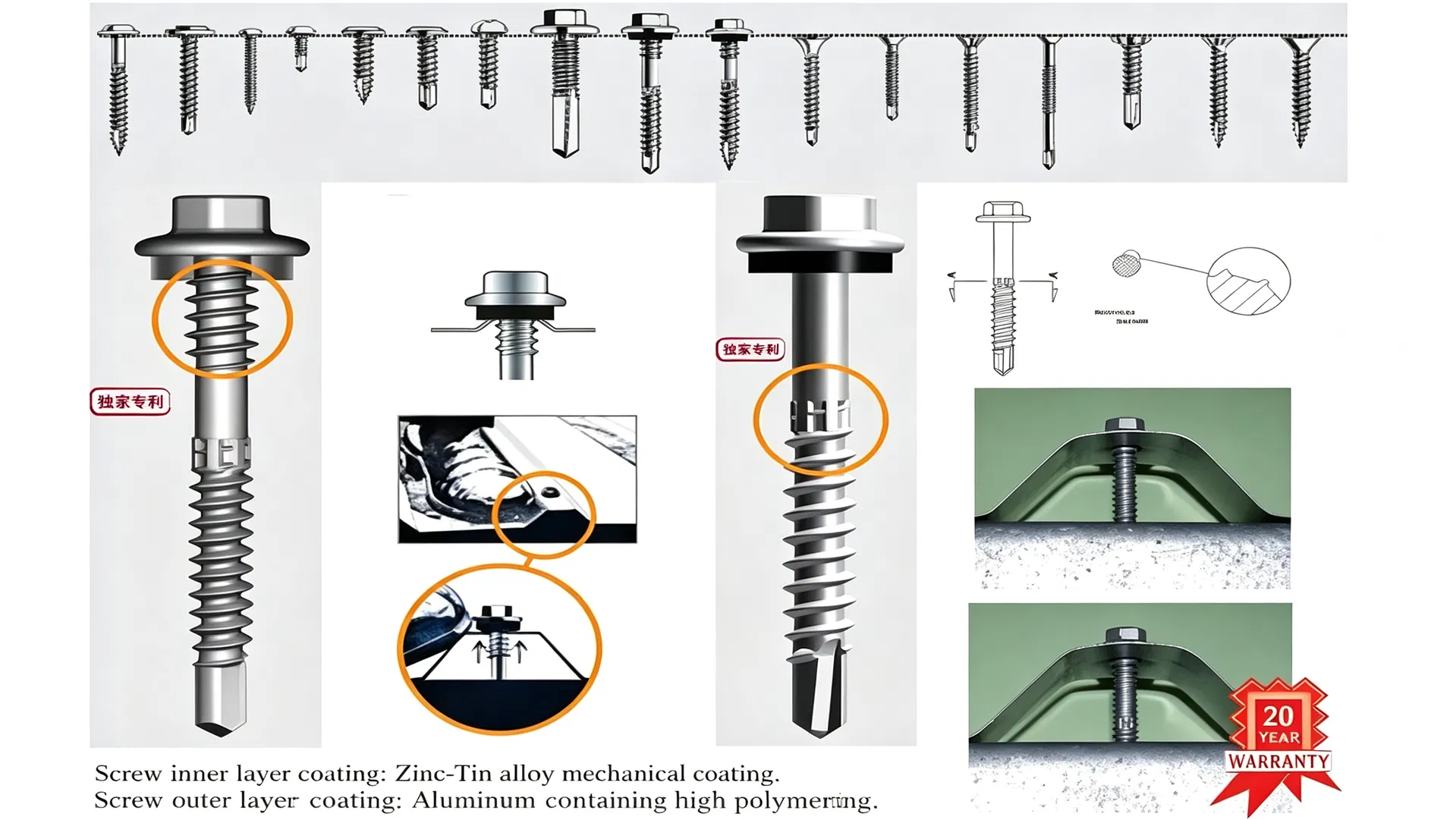

Screw — the key point to your surprise.

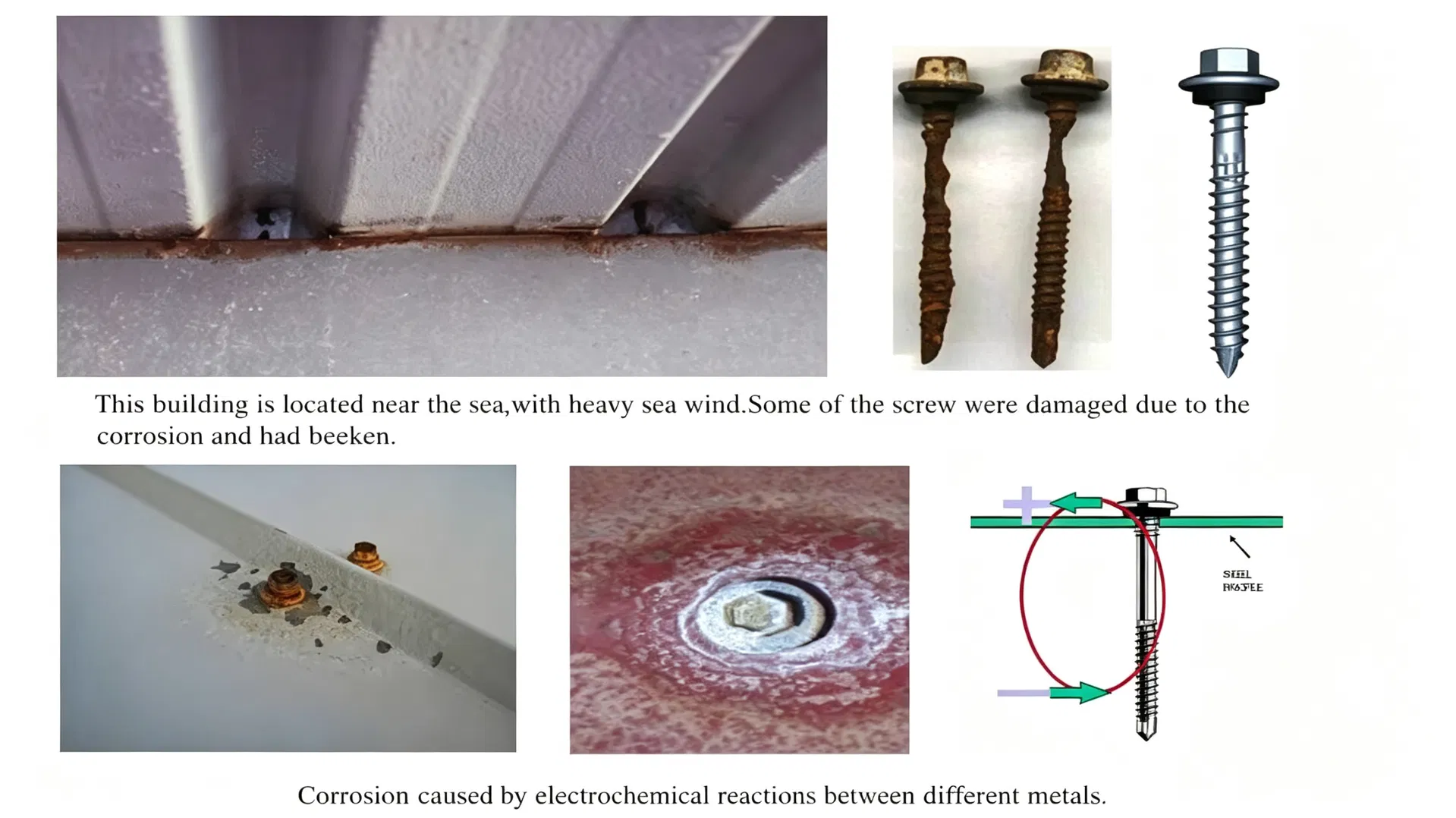

For a long time, fasteners have been the weak link of all building structure connections. It is not the design or performance problems, but the reduction of strength and the breakage caused by corrosion over time.
What is the solution?
Zinc-Tin alloy mechanical coating, a patented and practical technology, with long-term excellent anti-rust properties. (Maximum drill thickness: 12.5mm)
What We Pursue: PERFECT!

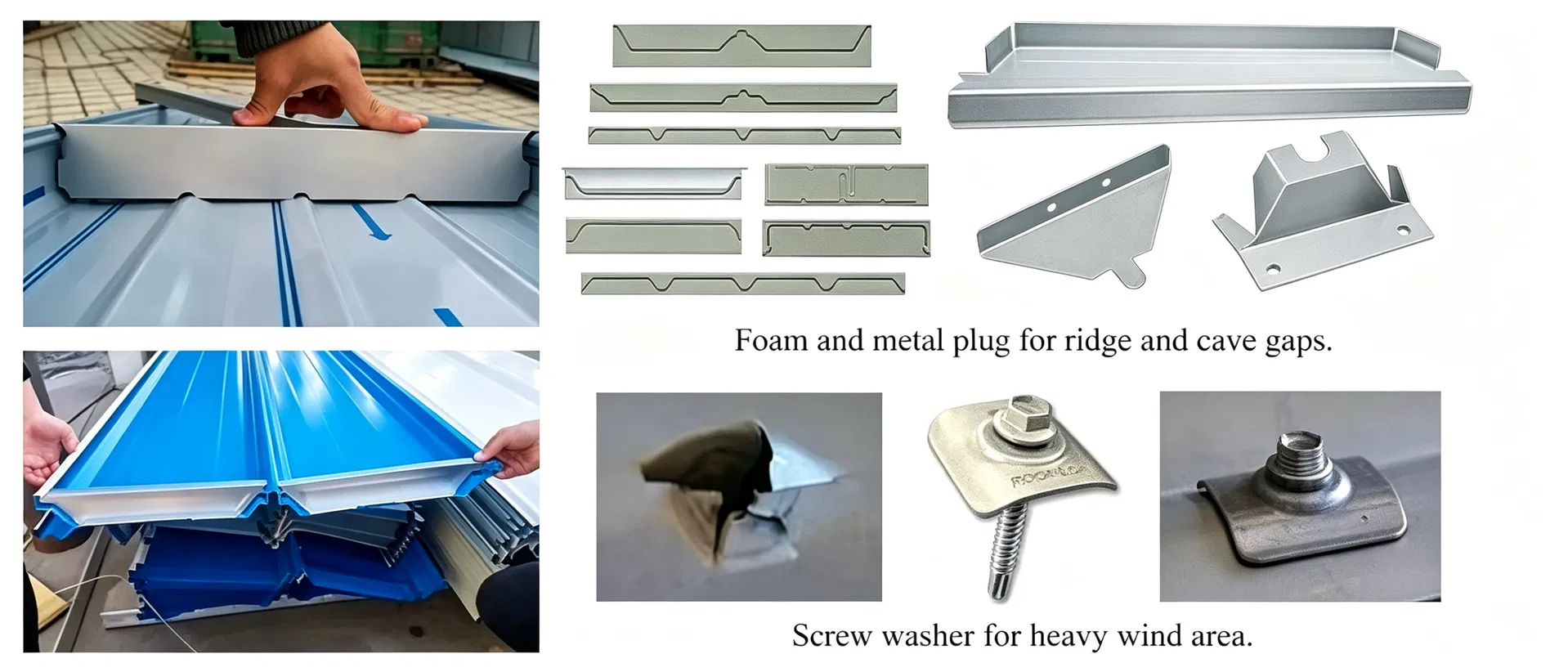

A building needs to be practical and also present a beautiful appearance. We focus on every detail and connection, utilizing a variety of advanced accessories to make the connection both strong and aesthetically pleasing.

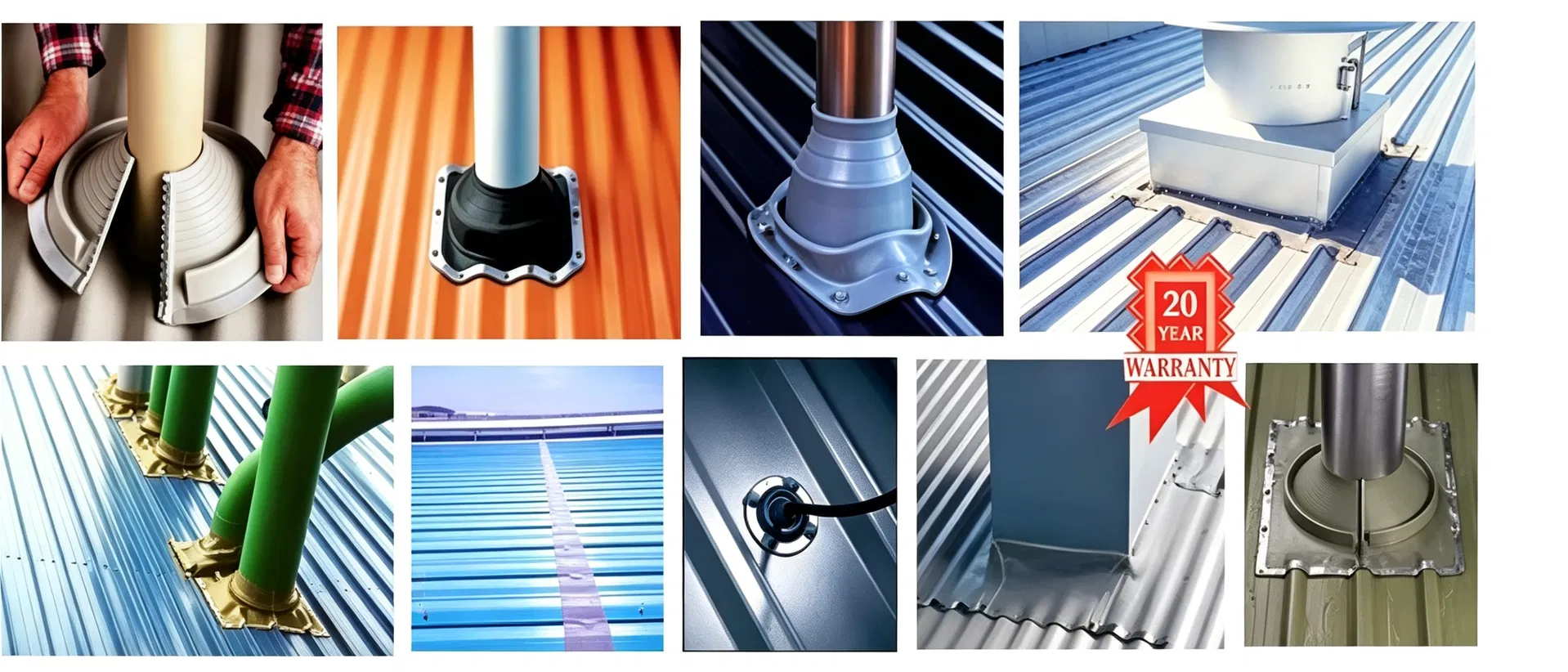

Roof/Wall Pipe Caps Water Resistant Flashing
World-class waterproof products for pipes or holes on roofs or walls. Flexible materials such as EPDM or silicone are used, featuring excellent physical and chemical properties, simple construction, reliable performance, and zero noise. The guaranteed service life is more than 20 years.

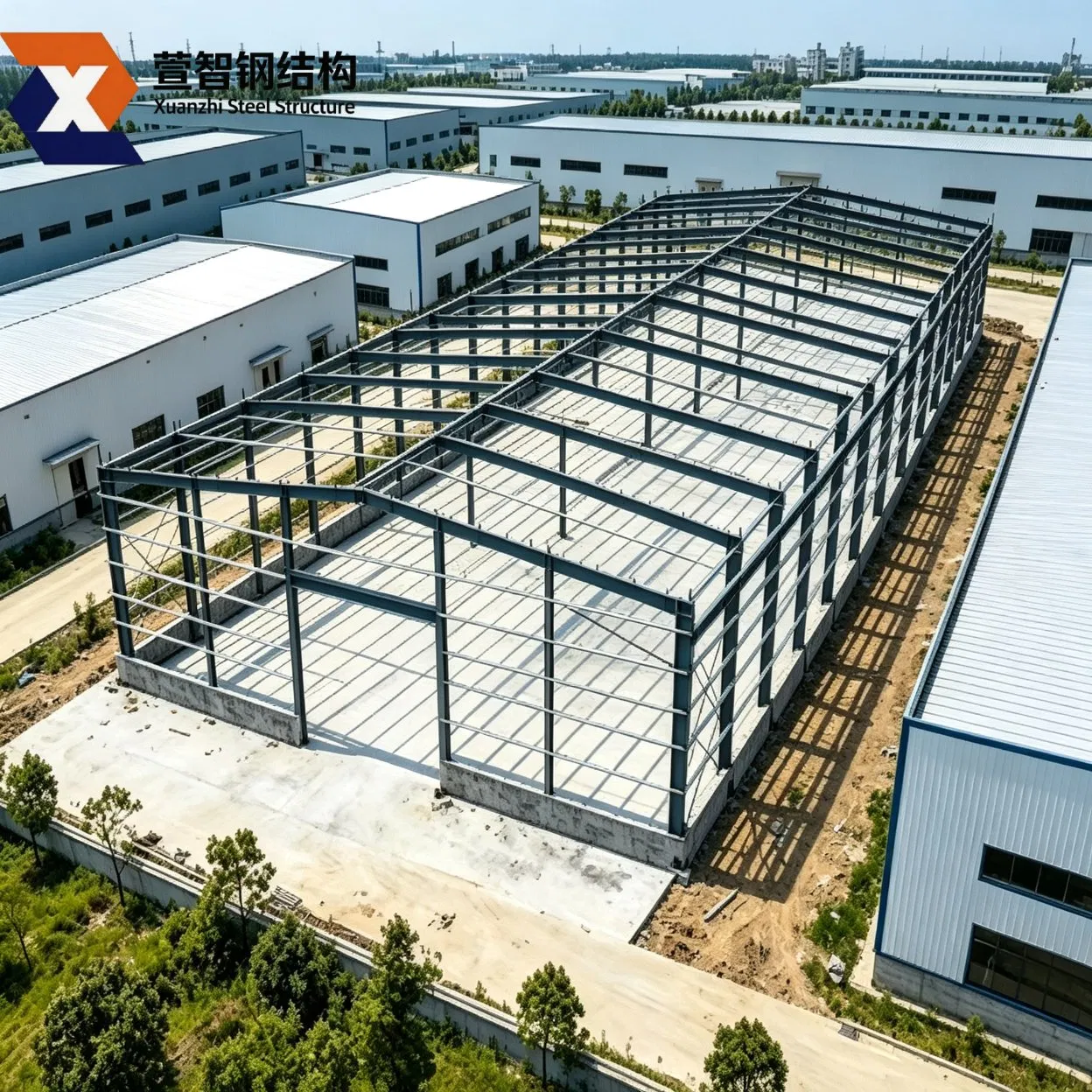

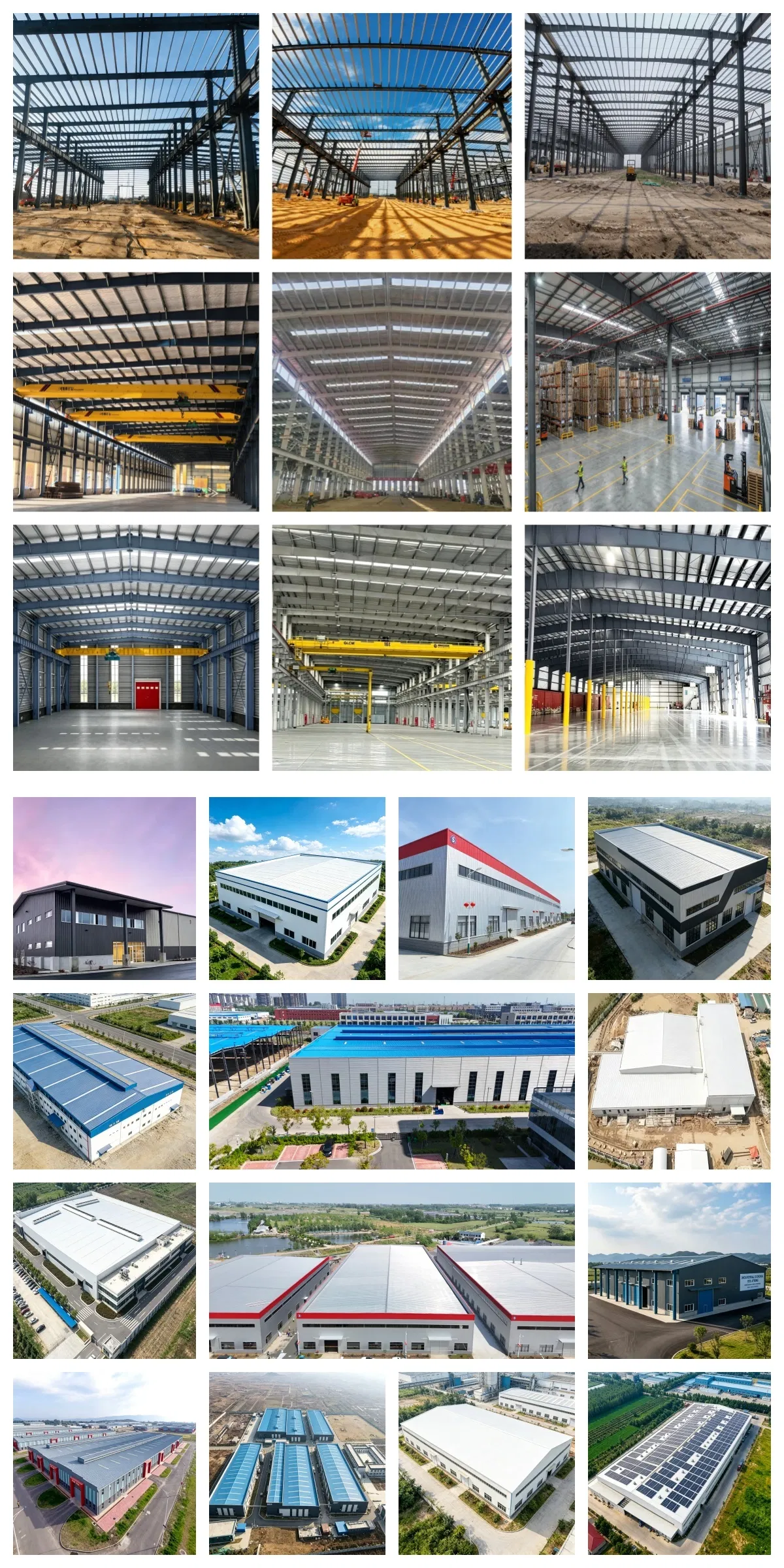

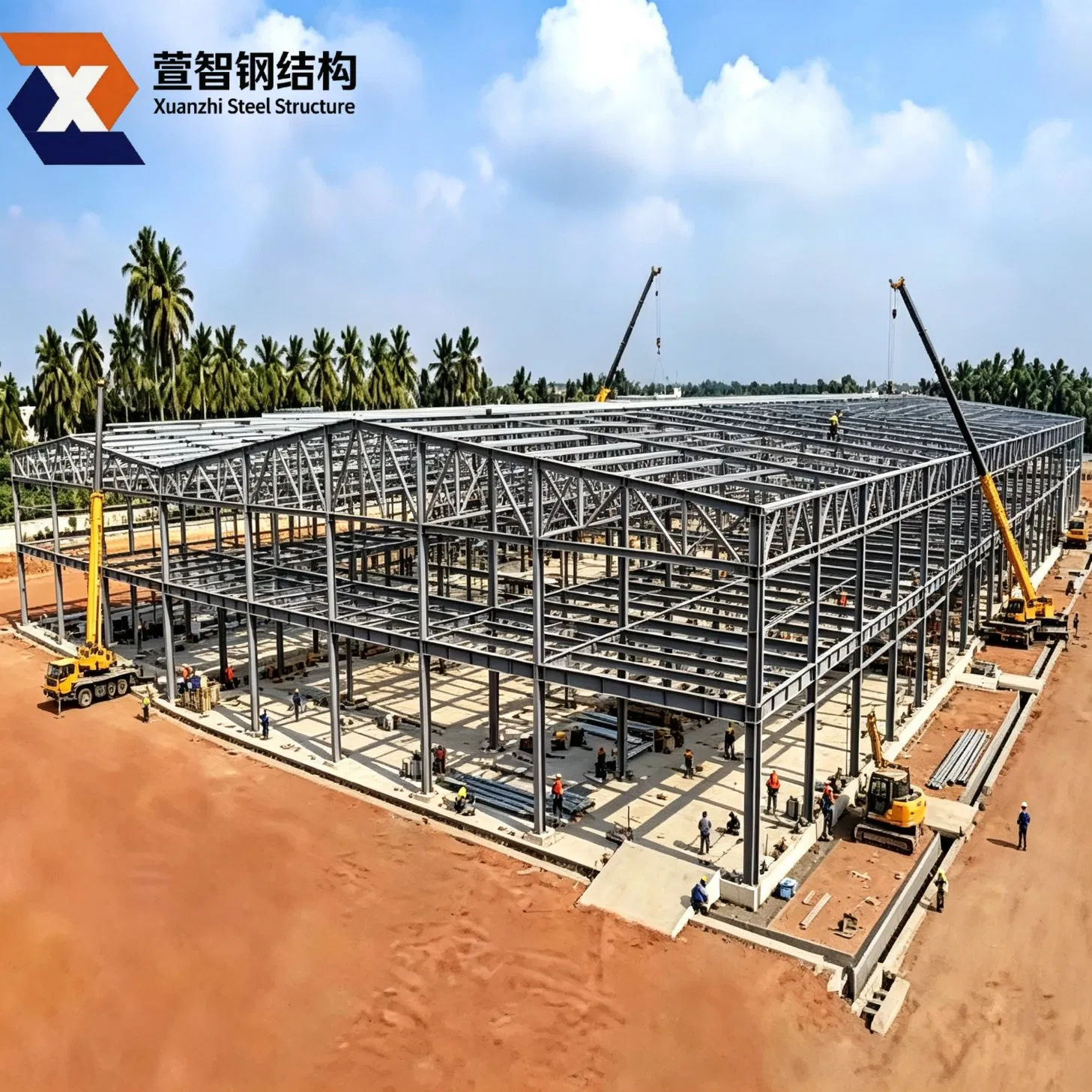

Project Cases

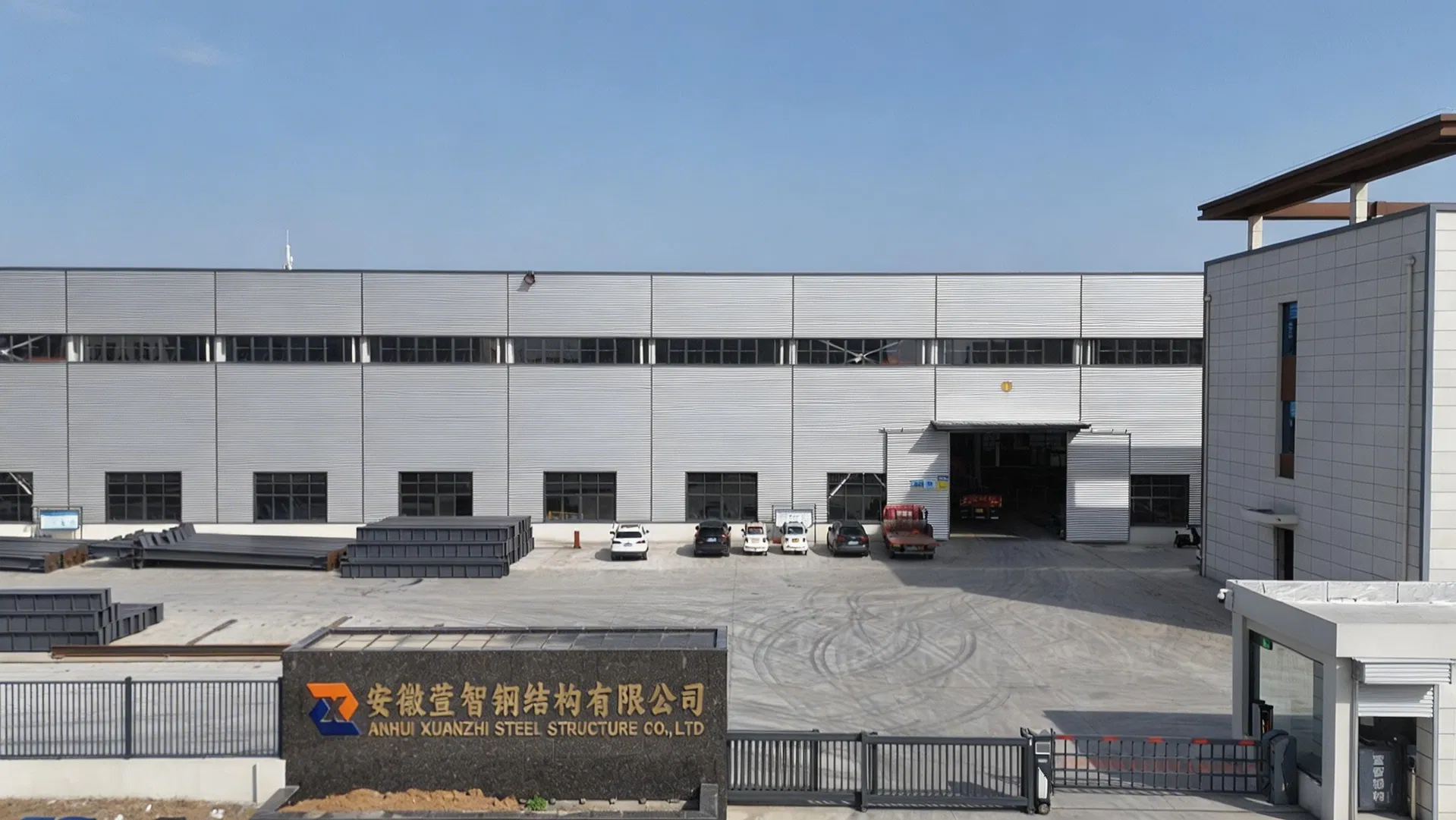

Company Overview
We are a professional export-oriented steel structure enterprise integrating R&D, design, manufacturing, and service, with a plant area of over 52,000 square meters. With more than 10 years of in-depth development in the industry, we are dedicated to providing global customers with cost-effective one-stop integrated solutions for steel structure projects.

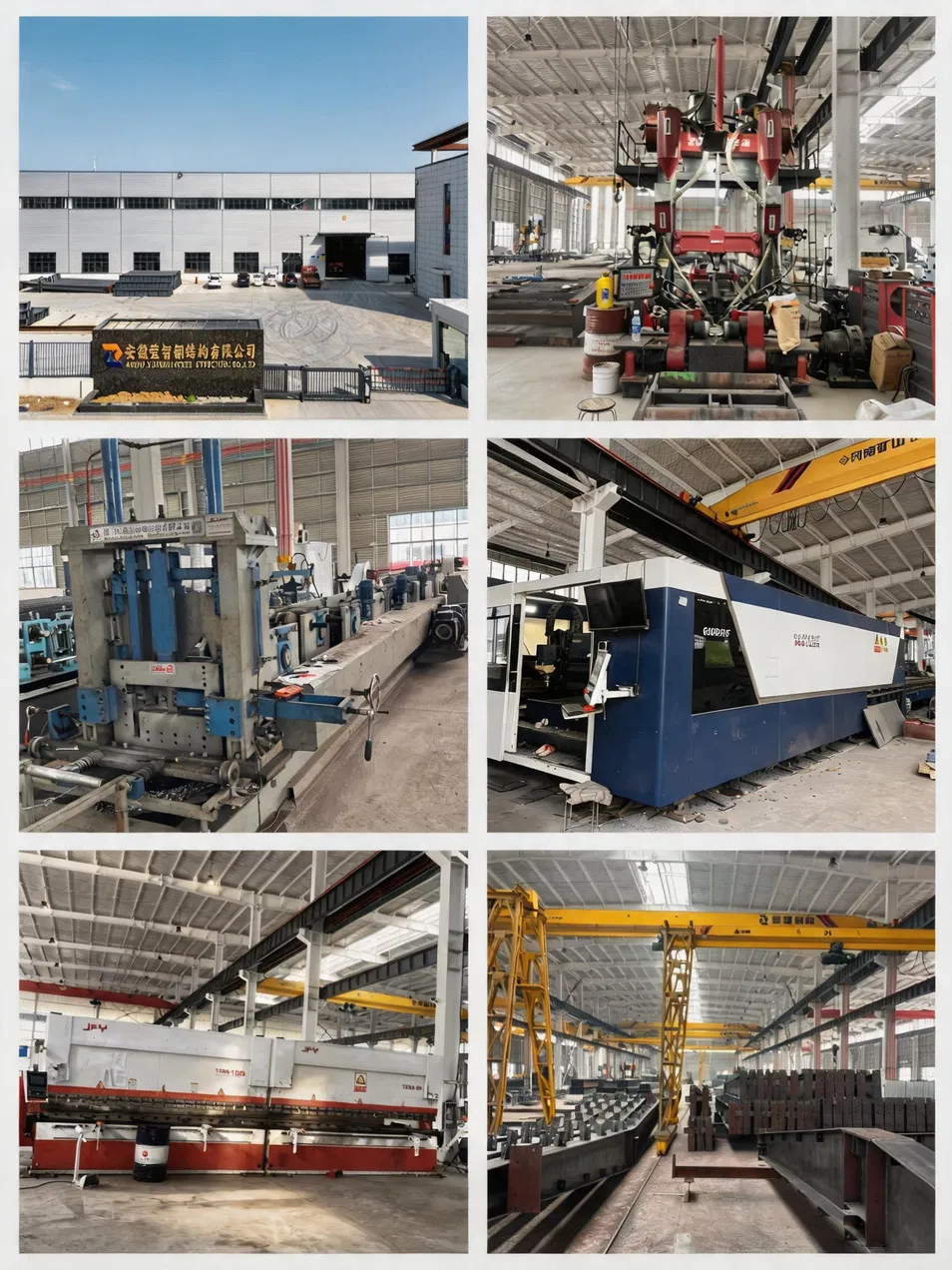

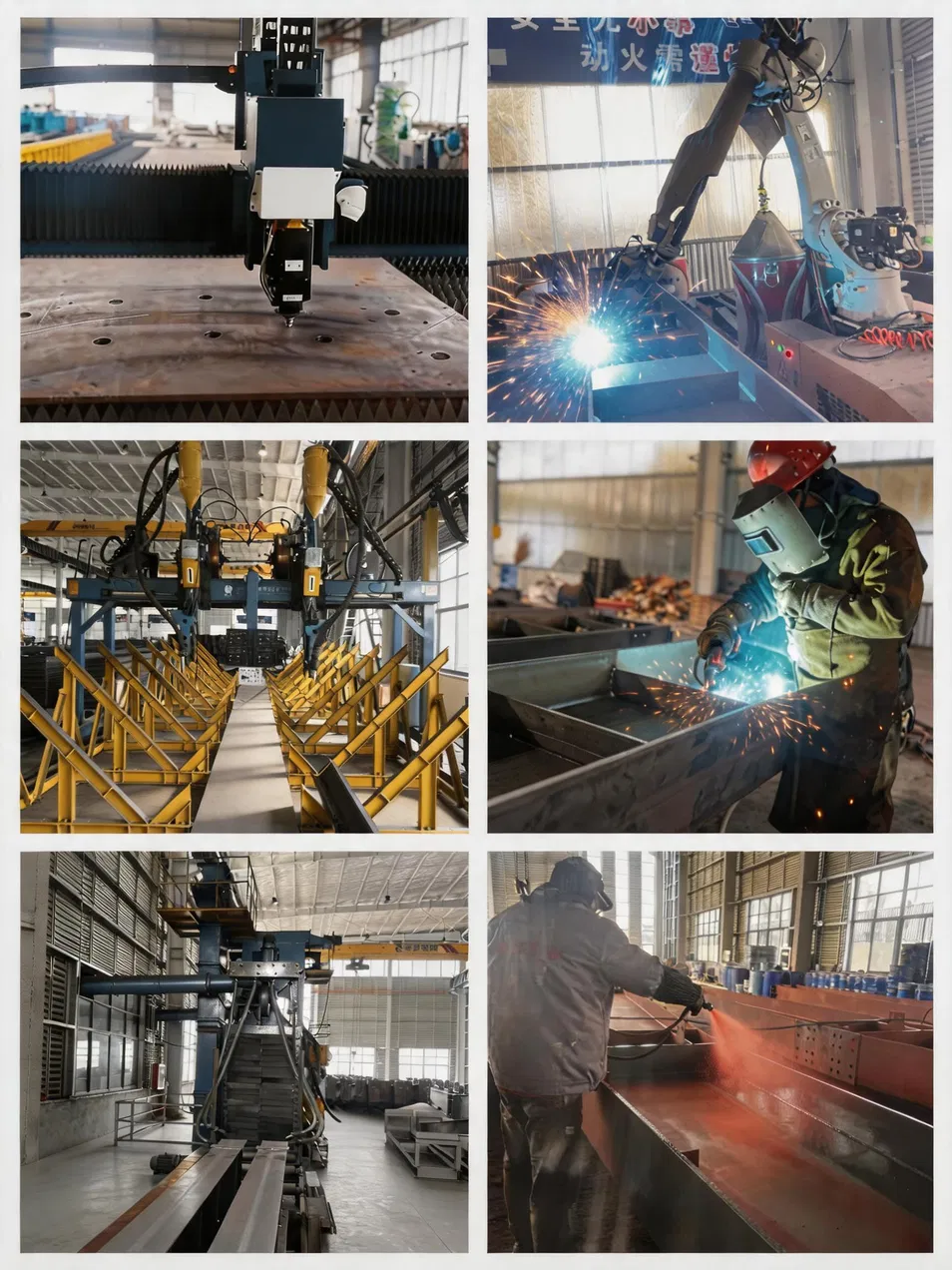

We operate a modern production base with an annual steel processing capacity of 100,000 tons. Relying on advanced production lines and a strict full-process quality control system, we guarantee stable delivery lead times and consistent superior product quality, and deliver highly competitive cost advantages to customers through our factory-direct sales model. We have a professional team with over a decade of hands-on experience in the prefabricated steel structure sector, supported by an academician workstation. We have mastered a number of core industry technologies and hold more than 200 patents, enabling us to provide full-cycle technical support for various types of projects.
To date, we have completed over 100 benchmark projects in more than 30 countries worldwide. Adhering to the long-term brand development philosophy, we have established stable, long-term cooperative partnerships with numerous international enterprises, institutions, and government agencies. Our core product portfolio covers a complete range of steel structure products, including industrial workshops, logistics warehouses, multi-storey and high-rise steel structures, long-span pipe trusses, and prefabricated modular buildings, which can fully meet the customized needs of diverse scenarios such as industrial, commercial, and infrastructure construction. We provide a full one-stop service from design, manufacturing, global logistics and transportation, to on-site installation guidance and after-sales support.

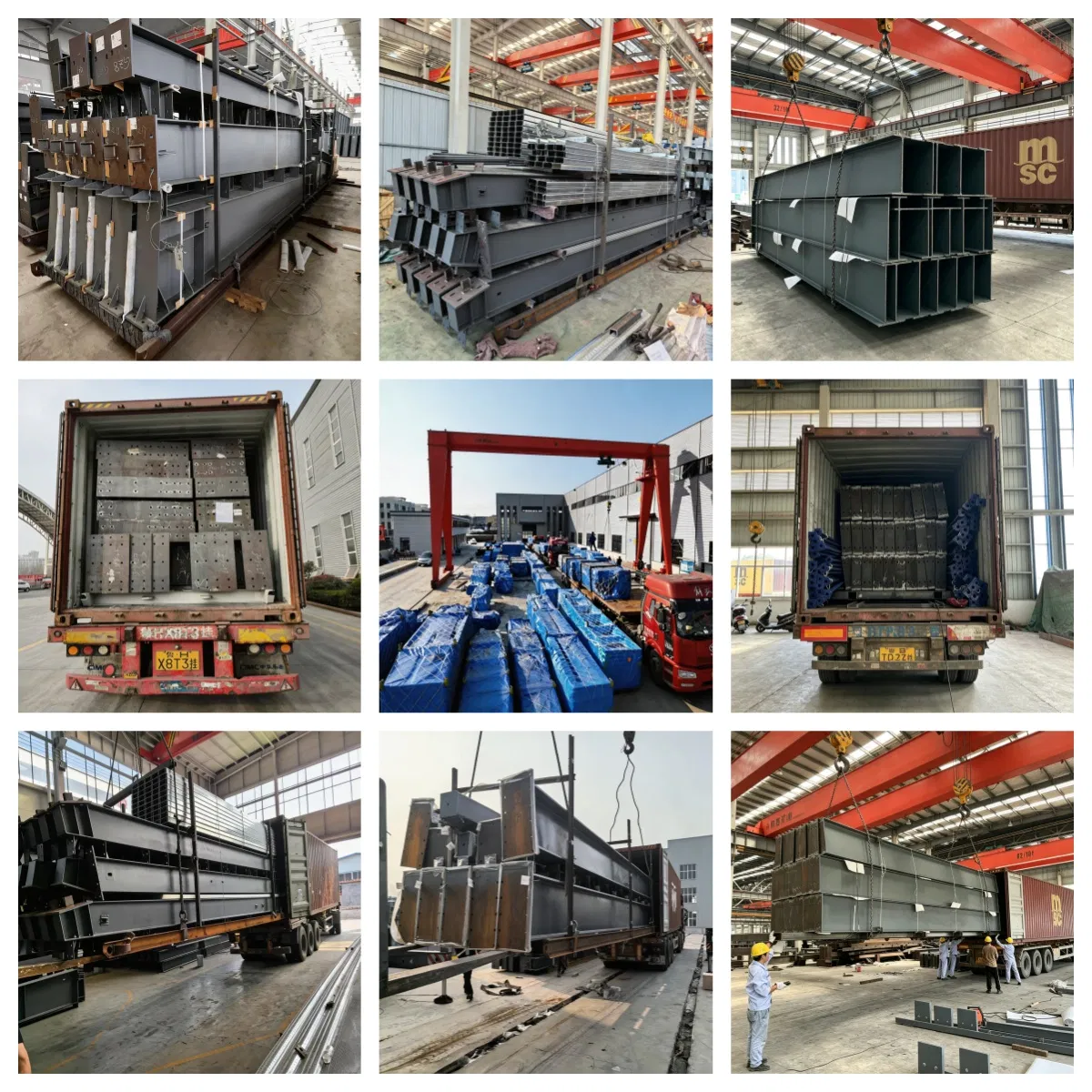

Packing & Delivery
Steel components are moisture-wrapped and steel-strapped. Key parts are separately packed for collision and corrosion prevention in transit. Goods are sorted and loaded per installation order. Our logistics ensure stable delivery, with all components intact for swift unloading and setup.
Certifications
Client Testimonials
Frequently Asked Questions
Q: Are you a manufacturer or a trading company?
A: We are a direct manufacturer with our own factory. Visit us anytime to see our quality control and professional sales team. Enjoy competitive factory-direct pricing.
Q: How competitive is your price compared with other suppliers?
A: Our principle: 'best price for same quality, best quality for same price.' We streamline production to cut costs and ensure top material and workmanship for maximum value.
Q: Is it difficult to install the prefabricated steel structure workshop? What if I have no installation experience?
A: Prefabricated components only need bolt assembly, no complex welding. We provide installation drawings, online video guidance, and can arrange on-site engineer support. Even beginners can install.
Q: Do you accept third-party inspection before shipment?
A: Absolutely. You can arrange third-party inspection at any stage, including production, pre-loading, and at our factory. We fully support all inspection needs.
Q: Can you provide customized design service?

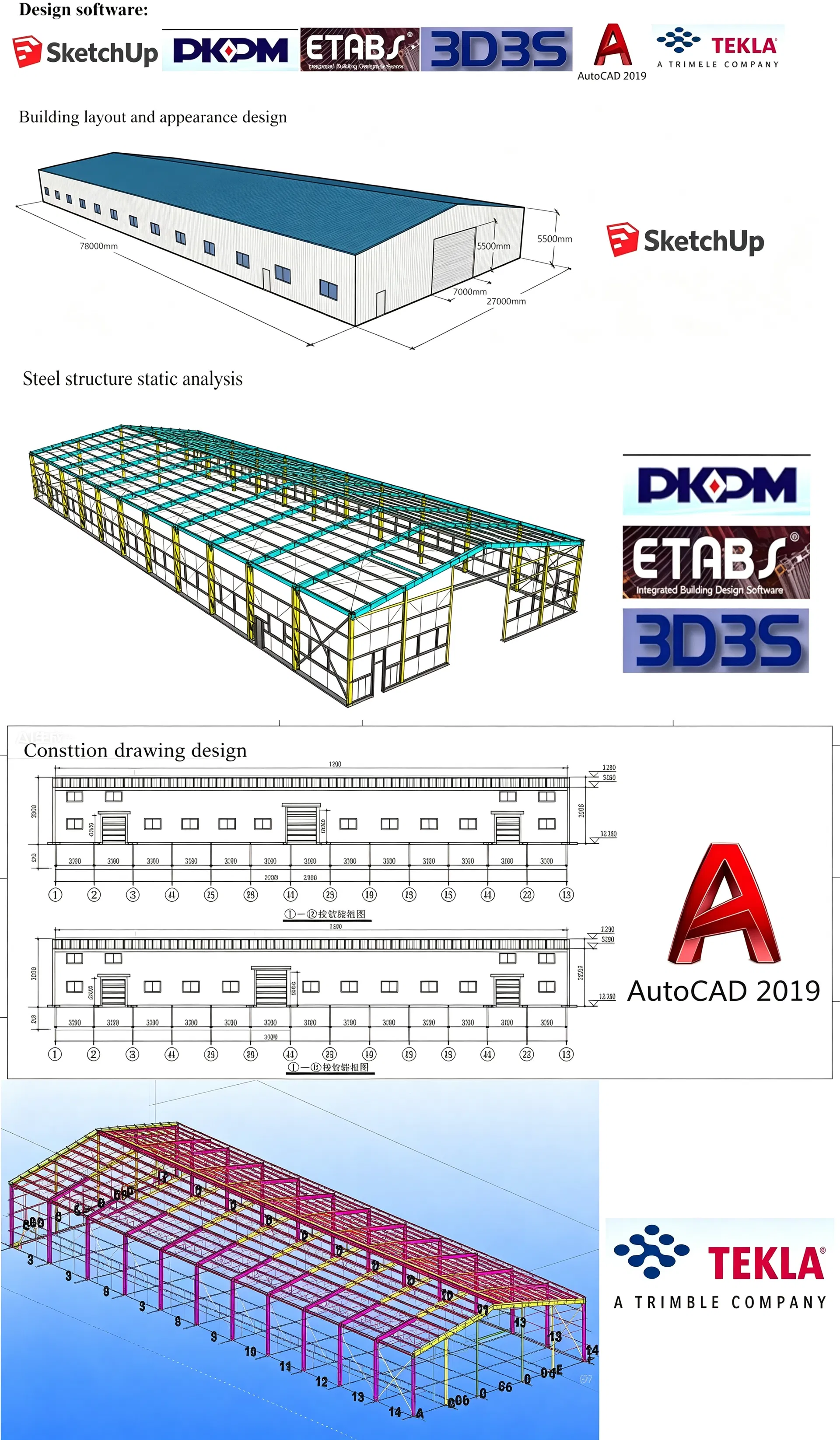

A: Yes, we offer customized design services. Using AutoCAD, Tekla Structures, and PKPM, we design steel workshops, warehouses, and industrial buildings according to your size, load, climate, and functional needs.
Q: What is your lead time for production?
A: Lead time varies by project scale and order size. Typically, production completes and delivers to the nearest Chinese port within 15-40 days post-deposit.
