| Model NO. | 122 |
| Fast Installation | Fast Installation |
| Feature | Earthquake Resistant Easily Movable Eco-Friendliness |
| Material | Steel Structure |
| Color | Customized Color |
| Size | 20FT/30FT/40FT/10FT |
| MOQ | 1 Unit |
| Wall Material | 50mm EPS/Rock Wool |

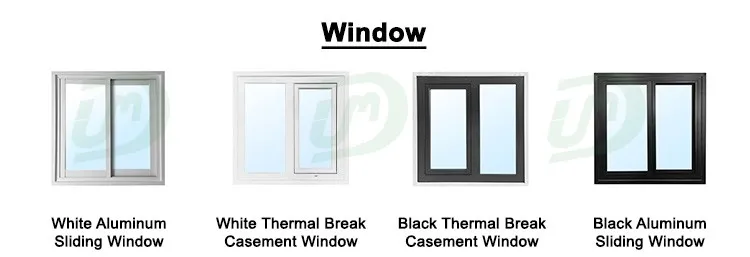

| Window | Aluminum Window/Plastic Steel Window |
| Life Time | 20 Years |
| Floor | 1.8mm Glass Magnesium Board |
| Specification | 20FT/30FT/40FT |
| Trademark | Customizable |
| Origin | China |
| Package Size | 2300.00cm * 6000.00cm * 3000.00cm |
| Package Gross Weight | 2500.000kg |
We are a global leader in prefabricated construction, delivering complete solutions from concept design to after-sales support. We build innovative, high-quality modular homes that turn your vision into reality worldwide.

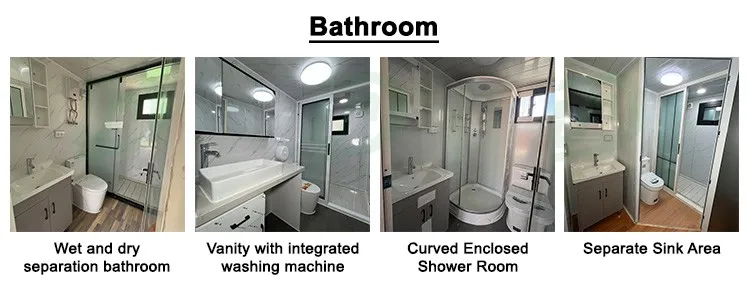

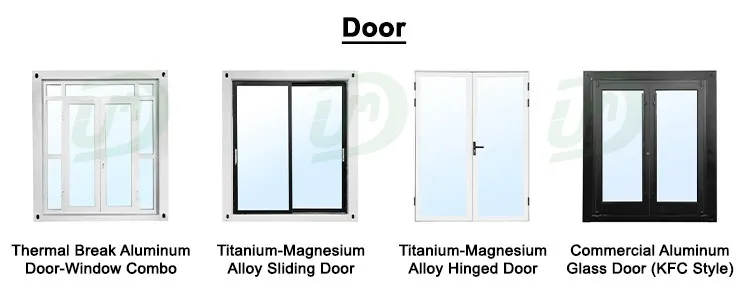

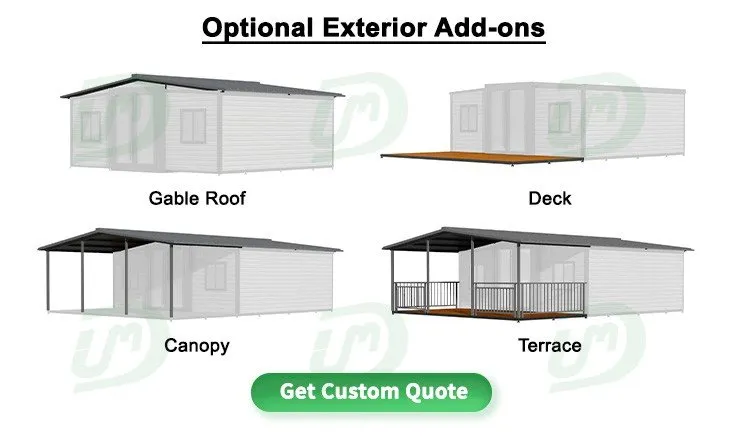

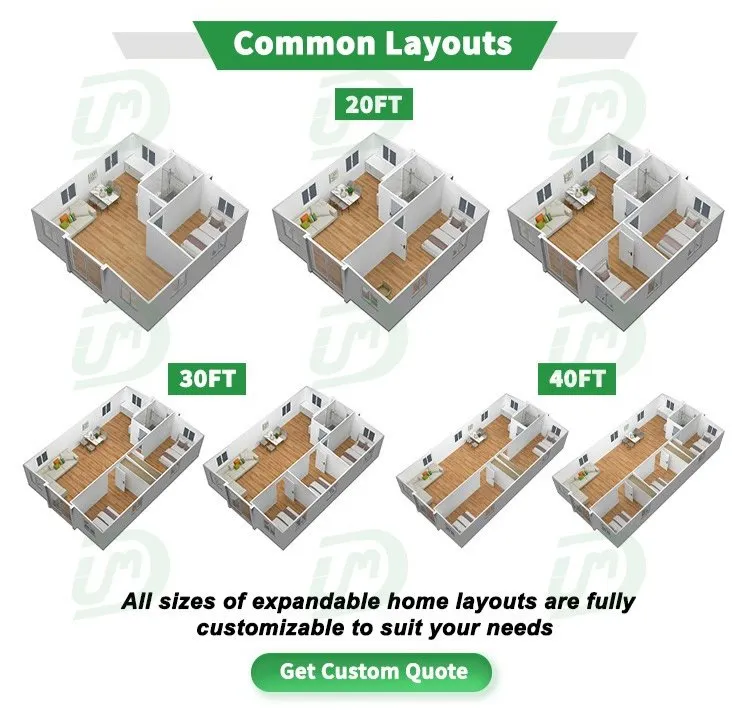

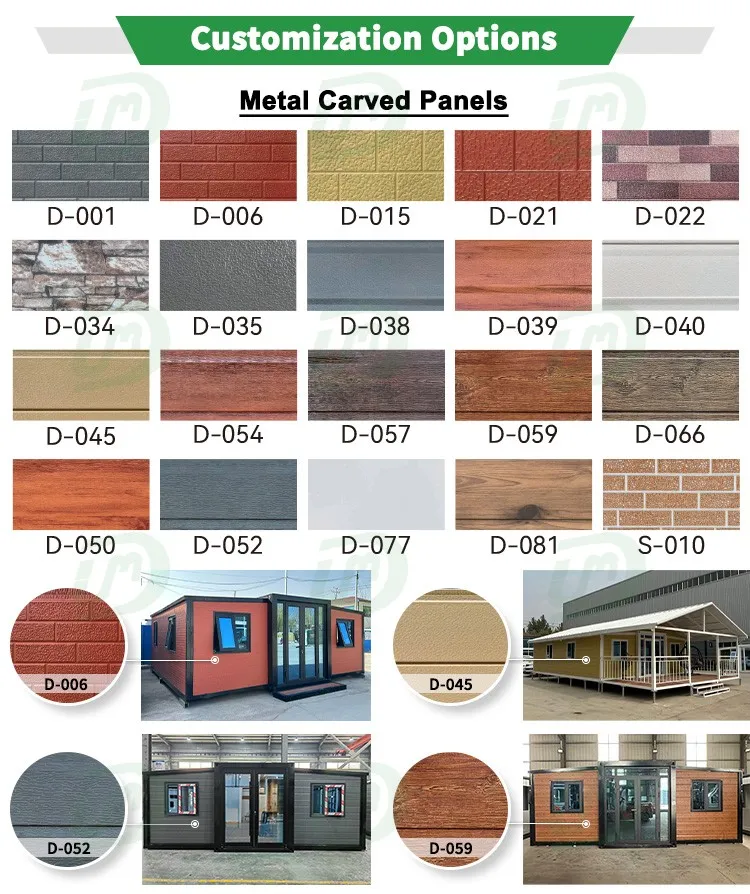

Every visible element – from doors, windows, and roofing to interior layouts and wall finishes – is fully customizable. Color, material, version, thickness, and more can be tailored to your exact specifications.

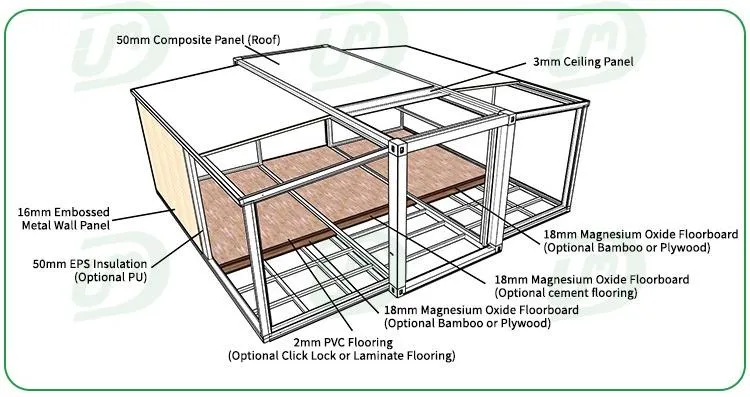

| Part | Component | Specification | Component | Specification |
|---|---|---|---|---|
| Frame Structure | Middle Roof Beam | T2.5mm Q235B | End Side Beam | t1.5mm Q235B |
| Middle Bottom Beam | T2.5mm Q235B | Middle Column | T2.5mm Q235B | |
| Side Wall Frame | t1.5mm Q235B | Lifting Lug | t4mm Q235B | |
| Subframe | t1.5mm Q235B | Folding Hinge | 13mm Galvanized Hinge | |
| Central Cabinet Top/Bottom | 80*100mm | Full Frame Protective Coating | Electrostatic Powder Coating / White Plastic Powder | |
| Side Cabinet Top/Bottom | 40*60*1.5mm Thick Square Tube | |||
| Roof Panel | External roof panel | 50mm Composite Panel | ||
| Interior ceiling | 3mm Ceiling Panel | |||
| Wall Panel | Exterior wall panel | 16mm Embossed Metal Wall Panel | ||
| Internal partition | 50mm EPS Insulation (Optional PU) | |||
| Floor | PVC Flooring | 2mm PVC Flooring (Optional Click Lock or Laminate Flooring) | ||
| Flooring | 18mm Magnesium Oxide Floorboard (Optional Bamboo or Plywood) | |||
Densely spaced square tubes for better stability — no floor shaking, stronger structure.

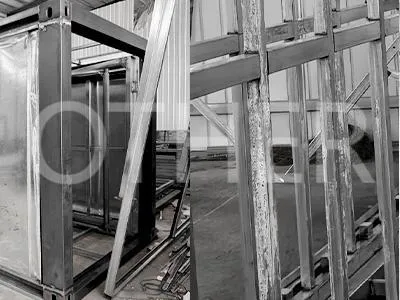

Fewer square tubes to save costs — weaker frame, unstable floors, shorter service life.

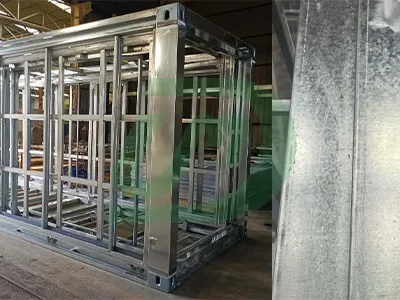

Fully galvanized steel with electrostatic powder coating — anti-rust, anti-corrosion, highly durable.
Use untreated black steel to cut costs — prone to rust, corrosion, and shorter lifespan.
