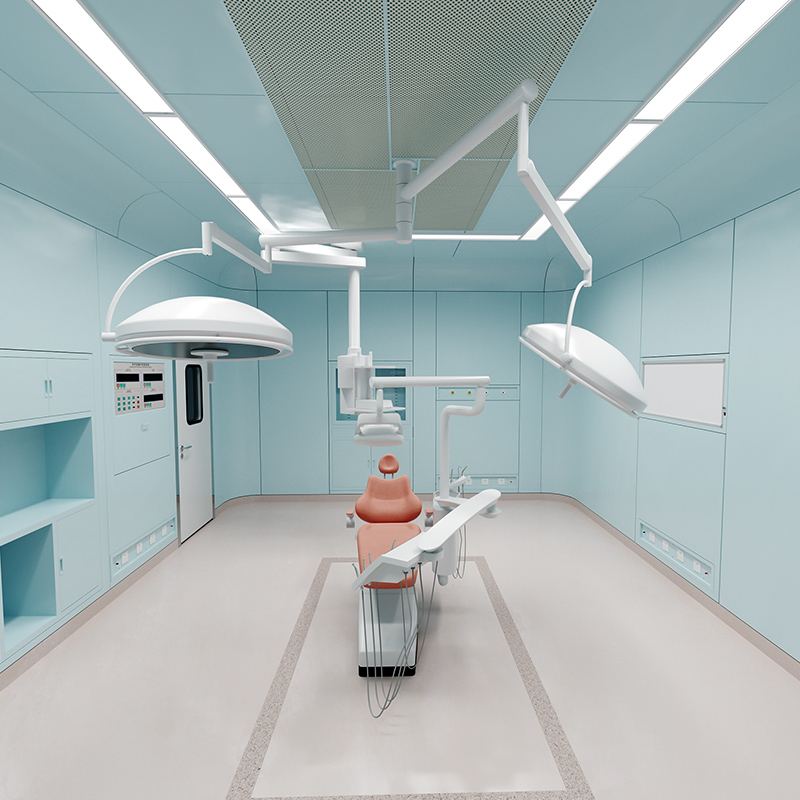

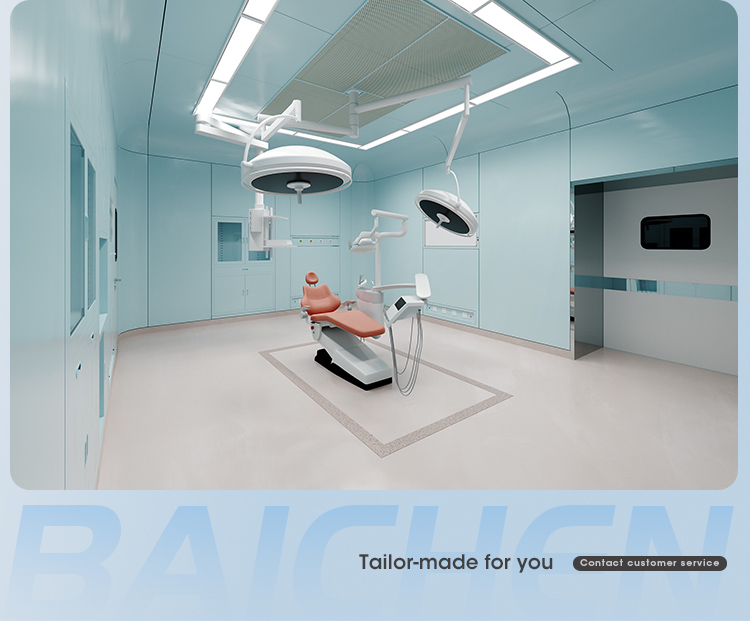

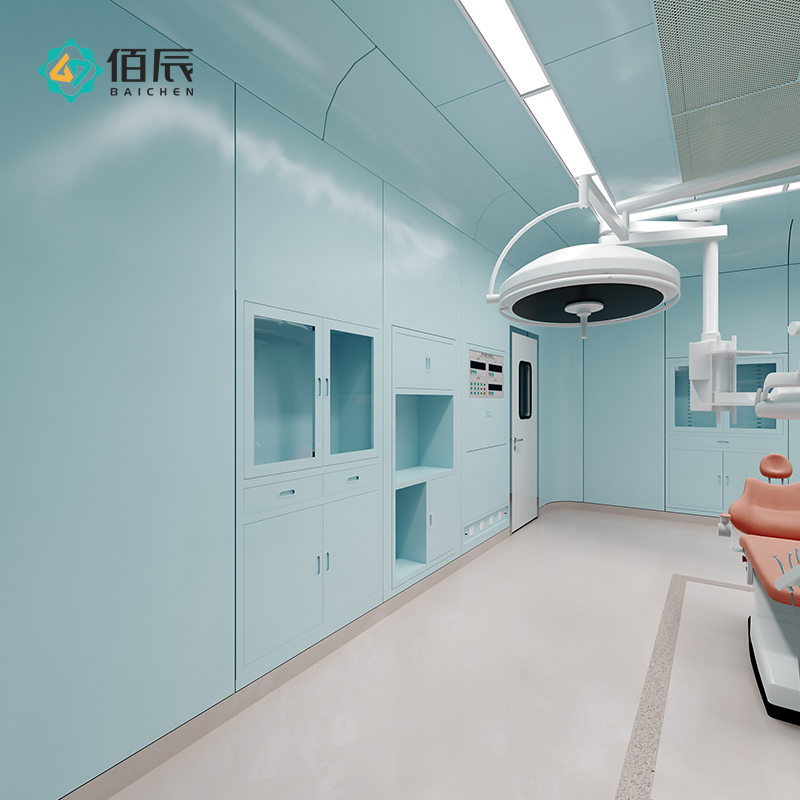

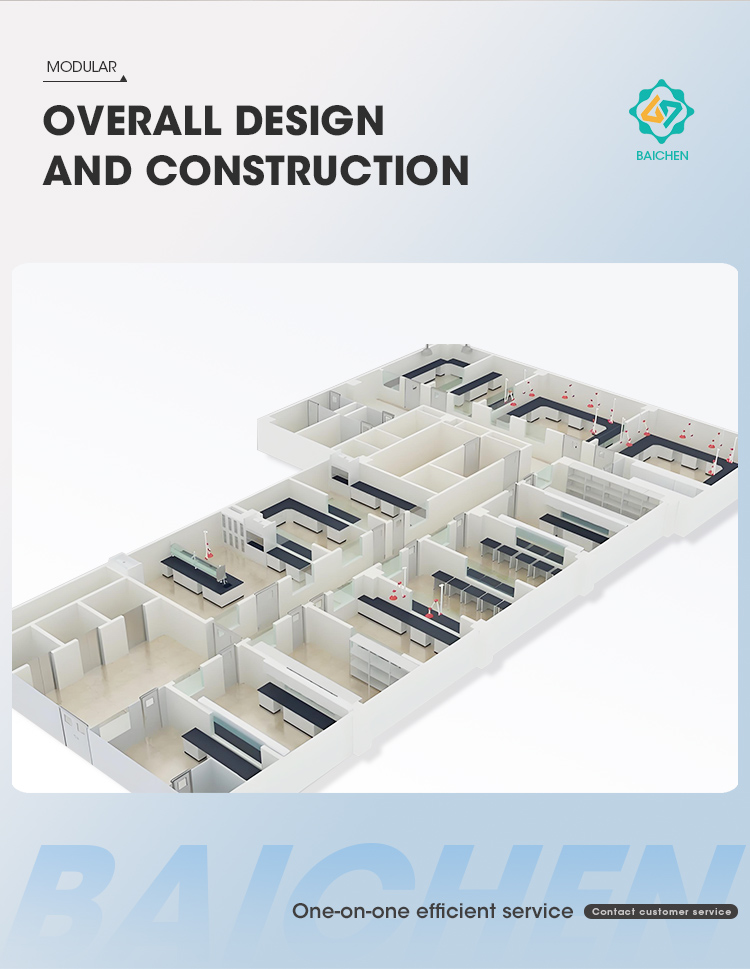

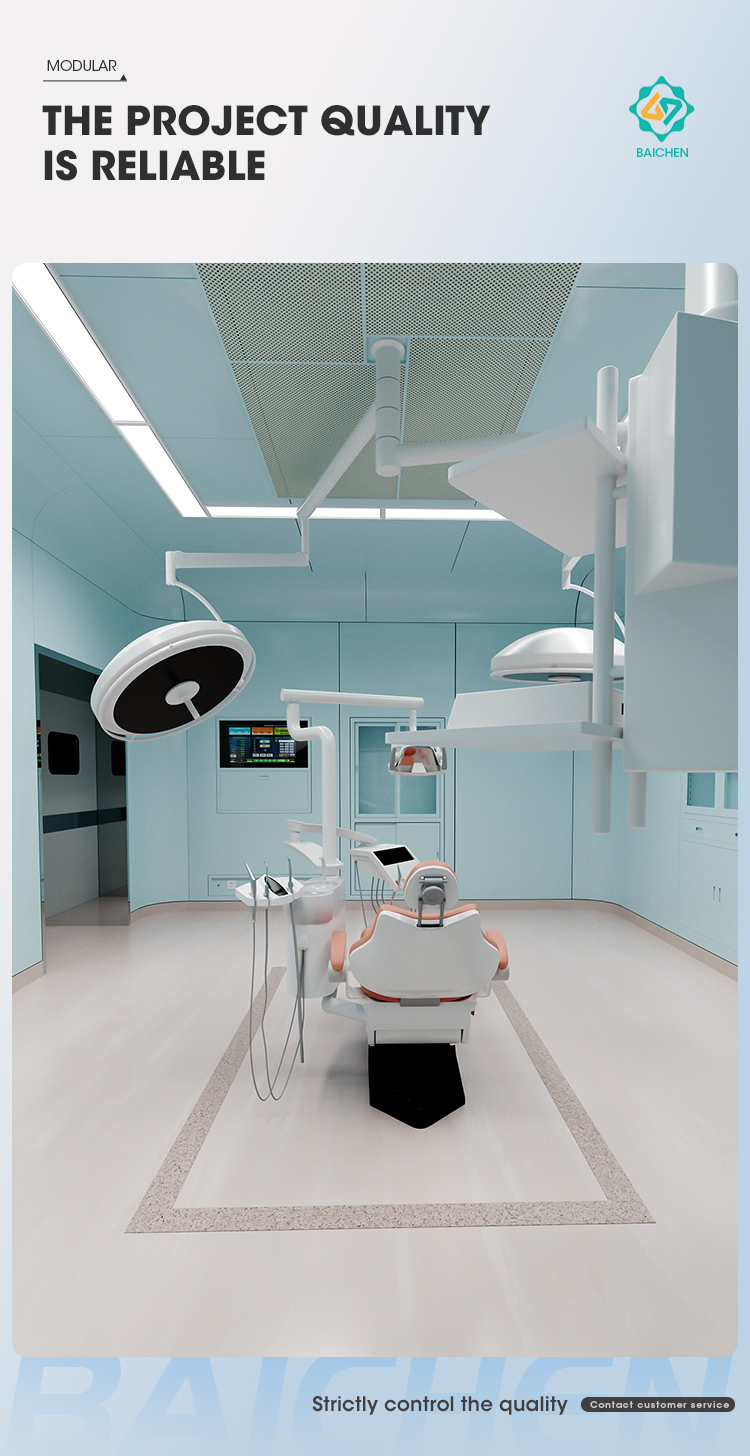

Undertakes various purification engineering projects such as medical operating rooms, clean laboratories, laboratory dental implant rooms, clinics, testing institutions, hospital renovations, factories, and clean workshops.
Nearly 30 years of management experience and production research and development experience in the clean industry. Cooperated with more than 2,000 enterprises, backed by a professional design team, production team, construction team, and after-sales team across multiple industries.
Possesses Grade III qualification for construction engineering, membership in the Clean Industry Association, and a number of patents for purification products. Advanced production workshops control the quality of each product from the source of design, production, installation, sales, and service.

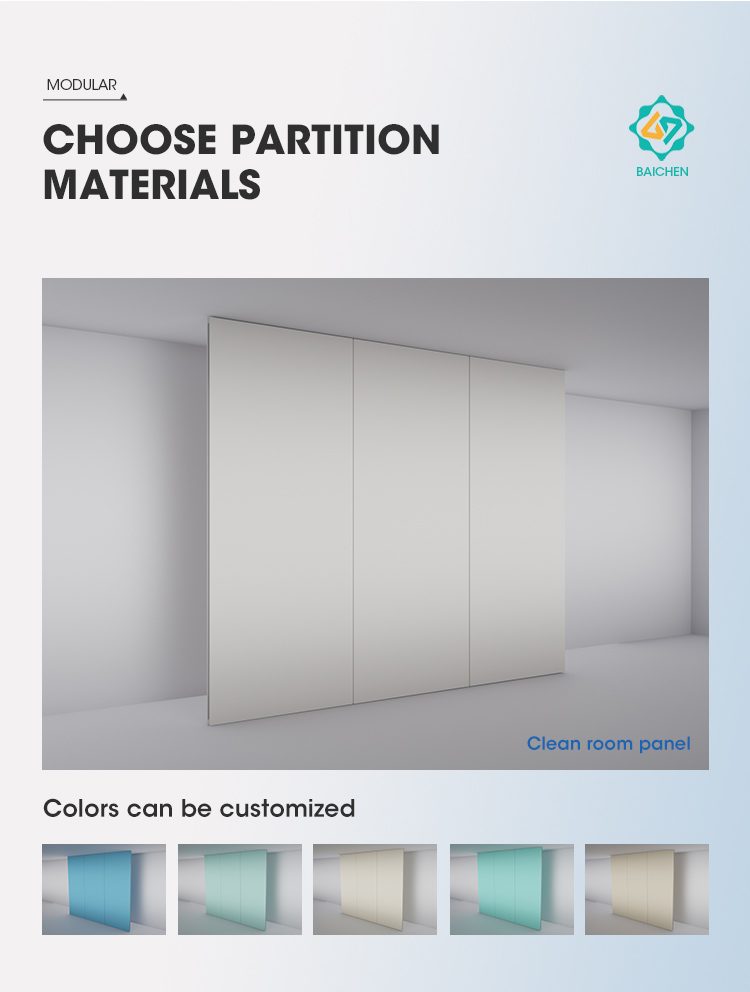

Length and width can be fully customized according to engineering requirements. The combined installation significantly reduces foundation engineering and structural building costs. It allows for multiple disassembly and assembly rounds, offering convenient construction, installation, and remarkable comprehensive efficiency.

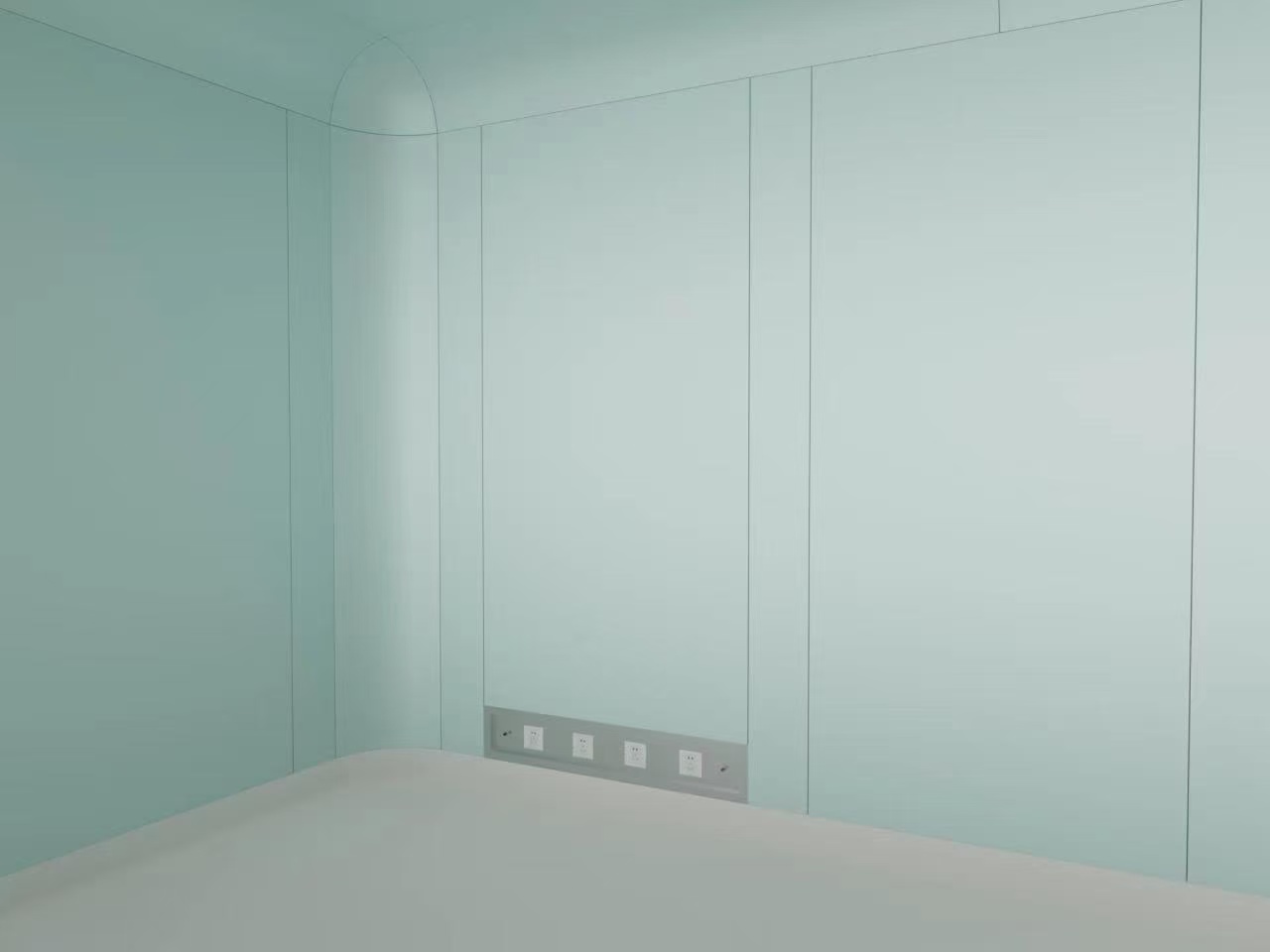

Features a smooth and attractive surface, high strength, sound insulation, heat insulation, heat preservation, and earthquake resistance. Designed for easy construction with customizable dimensions, convenient connections, and no exposure of core materials. Widely used for enclosures and ceilings in high-tech electronics, medicine, chemical industries, food production, industrial workshops, warehouses, cold storage, ovens, and air conditioner wall panels.
| Clean Room Grade | Max Average Bacteria Concentration (Sedimentation/Planktonic Method) | Air Cleanliness Class | Reference Surgery Type | ||
|---|---|---|---|---|---|
| Surgical Area | Peripheral Area | Surgical Area | Peripheral Area | ||
| 1 | 0.2 cfu/30min · φ90 dish (5 cfu/m³) | 0.4 cfu/30min · φ90 dish (10 cfu/m³) | 5 | 6 | Prosthesis implantation, large-scale organ transplants, surgeries with direct life risks. |
| 2 | 0.75 cfu/30min · φ90 dish (25 cfu/m³) | 1.5 cfu/30min · φ90 dish (50 cfu/m³) | 6 | 7 | Major surgeries involving deep tissues and vital organs. |
| 3 | 2 cfu/30min · φ90 dish (75 cfu/m³) | 4 cfu/30min · φ90 dish (150 cfu/m³) | 7 | 8 | Other standard surgical operations. |
| 4 | 6 cfu/30min · φ90 dish | 8.5 | Infectious and severely contaminated surgeries. | ||
| Clean Room Grade | Max Average Bacteria Concentration (Sedimentation/Planktonic Method) | Air Cleanliness Class |
|---|---|---|
| 1 | Local centralized air supply: 0.2 cfu/30min · φ90 dish Other areas: 0.4 cfu/30min · φ90 dish |
Local Level 5, Other Areas Level 6 |
| 2 | 1.5 cfu/30min · φ90 dish | Level 7 |
| 3 | 4 cfu/30min · φ90 dish | Level 8 |
| 4 | 6 cfu/30min · φ90 dish | Level 8.5 |
Q1: What are the main benefits of a handmade clean room panel?
A1: Handmade clean room panels offer highly flexible dimensions, robust structural strength, high sound/heat insulation, and a smooth, easy-to-clean surface. They allow multiple rounds of disassembly and assembly, making installation quick and cost-effective.

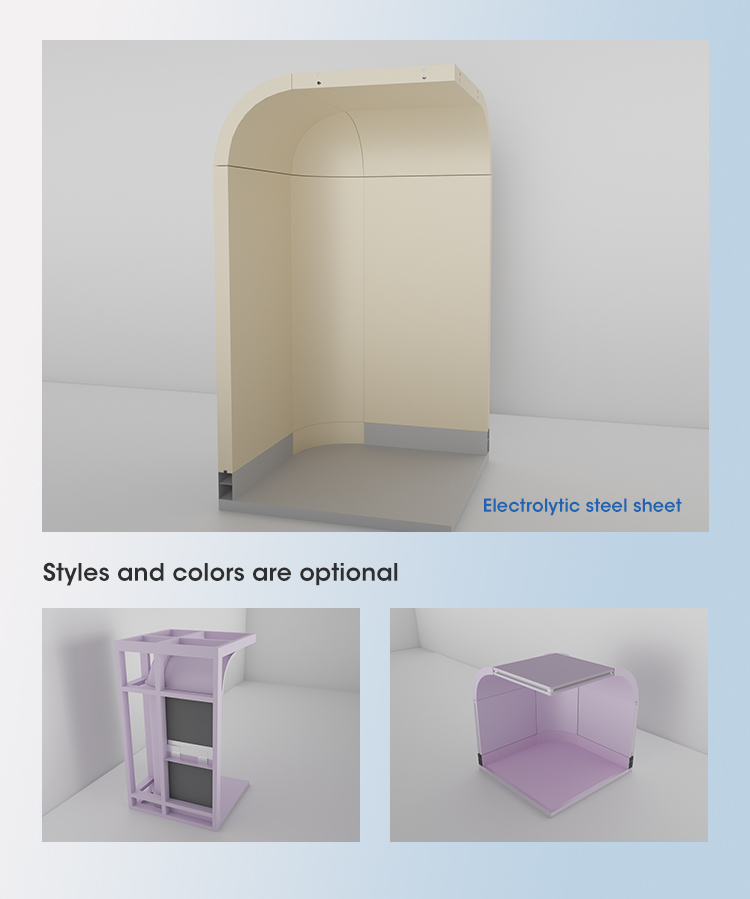

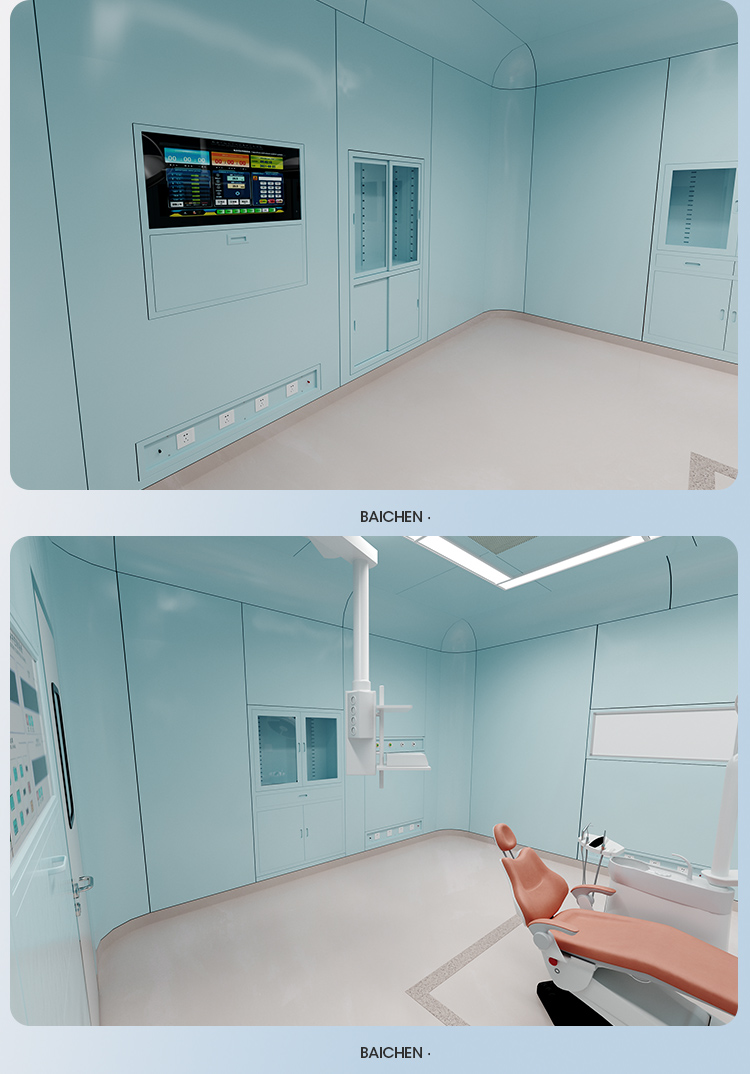

Q2: Why are electrolytic steel sheets preferred in modern hospital setups?

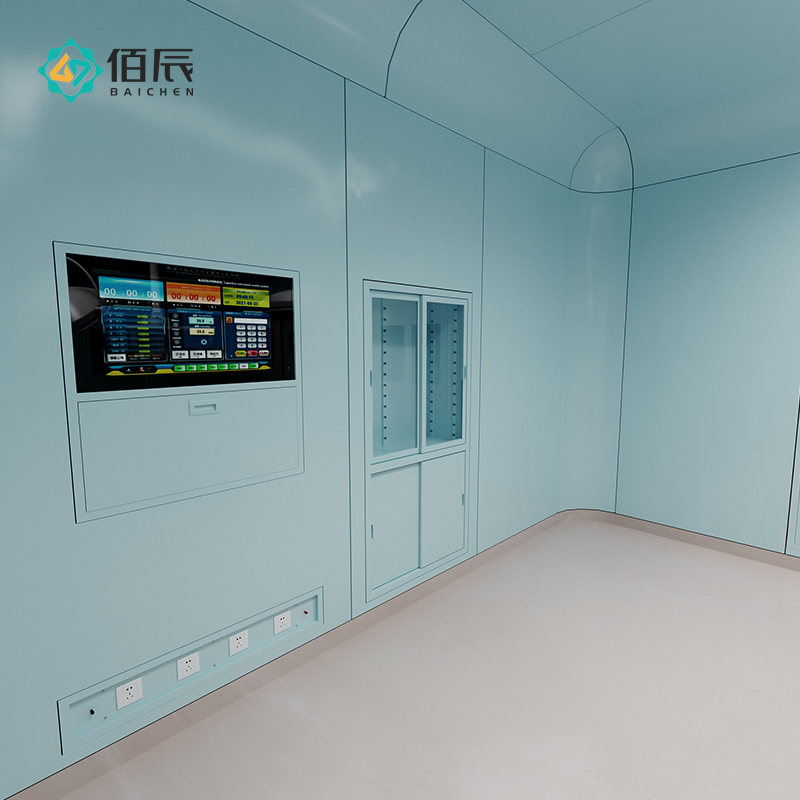

A2: They are highly durable, fire-retardant, earthquake-resistant, moisture-proof, and antibacterial. Additionally, they feature a hollow structure that allows wires and pipes to be cleanly integrated inside the wall panels.
Q3: How are clean operating rooms graded?
A3: Operating rooms are graded from Class 1 to Class 4 based on the concentration of bacteria (tested via sedimentation and planktonic methods) and the overall air cleanliness level (ranging from level 5 to level 8.5).
Q4: What types of surgery require a Class 1 clean operating room?
A4: High-stakes operations such as prosthesis implantations, deep organ transplants, and surgeries where infection poses an immediate threat to life require a Class 1 clean environment.
Q5: In what environments are these clean room solutions typically used?
A5: They are widely applied in medical operating rooms, clean laboratories, testing institutions, pharmaceutical plants, high-tech electronics factories, and food processing workshops.
Q6: Do cleanroom panels allow customized layout modifications?
A6: Yes, they offer flexible space division, a customizable wall thickness, and are fully reusable, making future renovations and maintenance simple and cost-efficient.
