| Characteristic | Waterproof | 99.9999% | Fireproof | Grade A |
| Wind Resistance | 90~110Km/hour | Seismic Resistance | Grade 10 | |
| Sound Resistance | >=30dB | Lifetime | More than 30 years | |
| Roof Live Load | 1.0 kN/m2 | Floor Live Load | 2.5kN/m2 | |
| Details | Roof Structure |

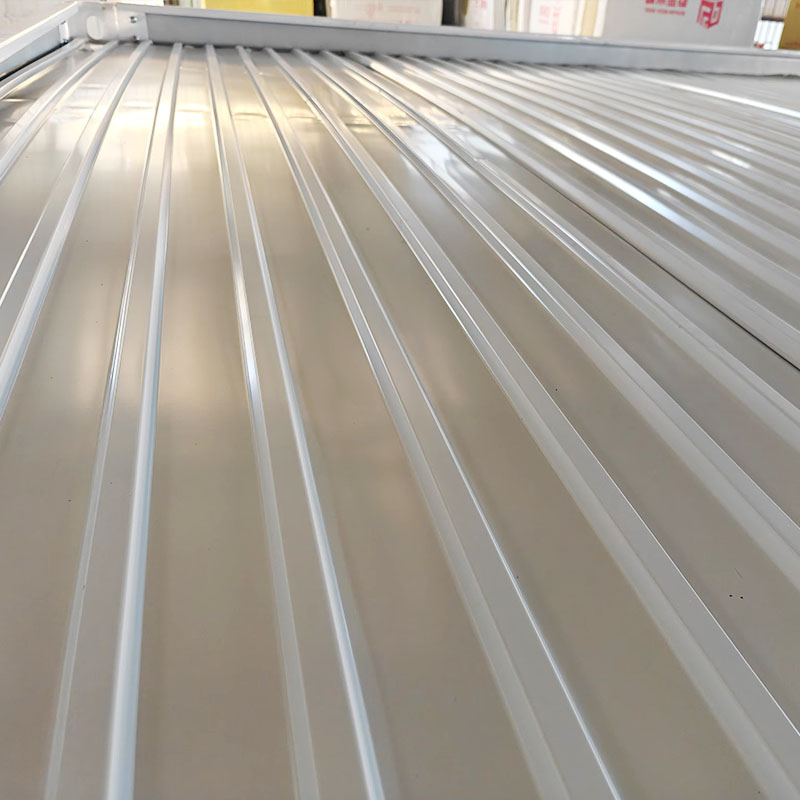

External roofing: Top tile 0.45mm Internal ceiling: t0.3mm Type-831 ceiling plate |
||

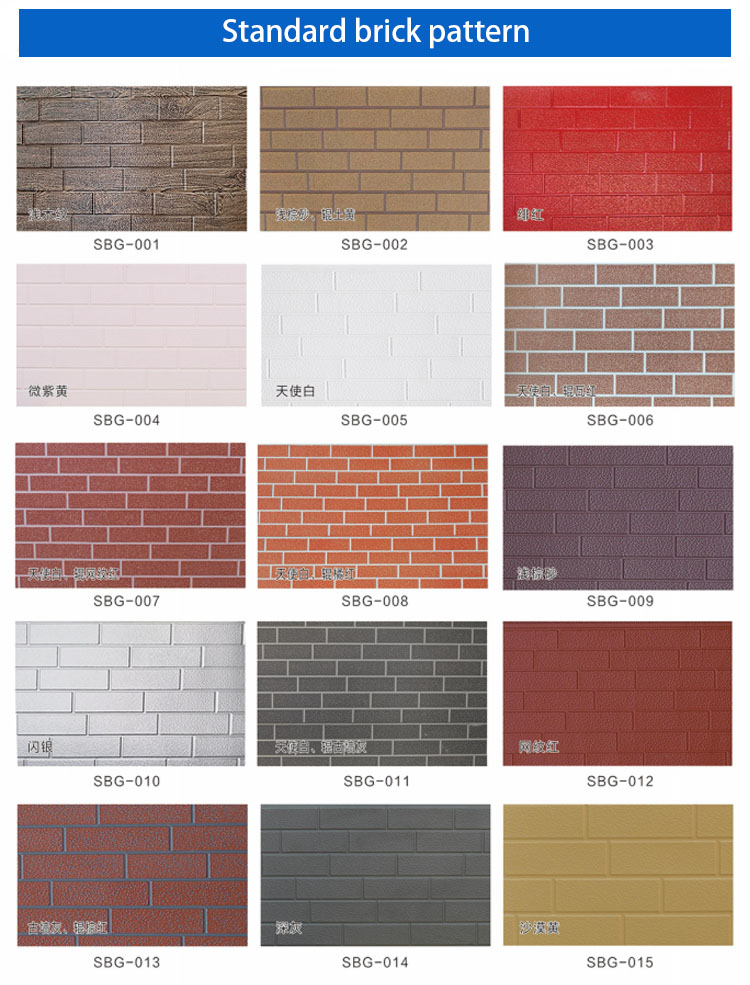

| Wall Board | Color Optional: white, wooden stripe color, black, gray | |||
| Wall Insulation Options |

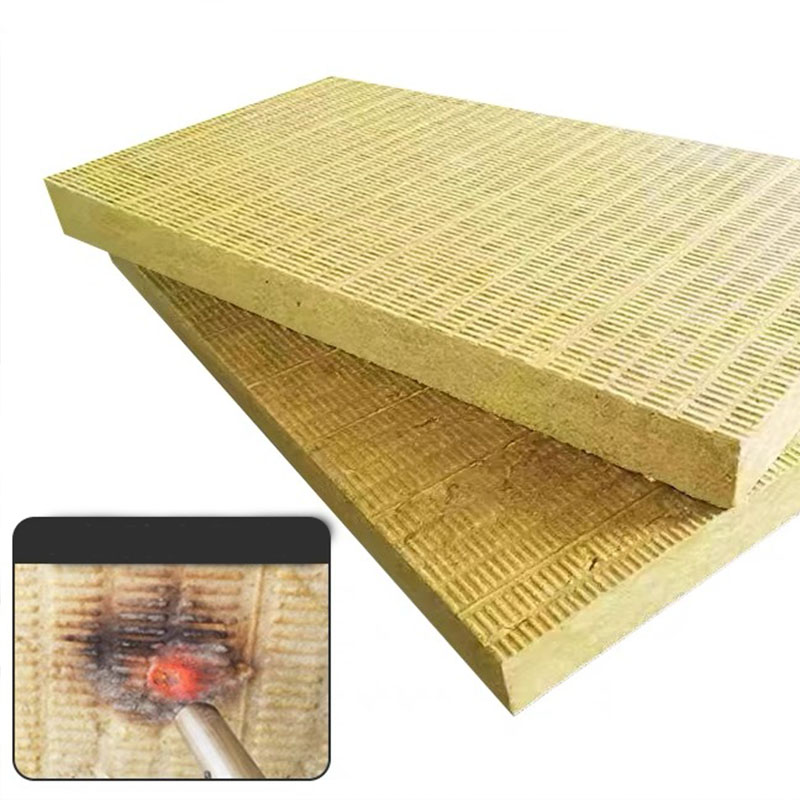

1. Class A fireproof rock wool board (50mm, 75mm, 100mm): with excellent fire resistance and thermal conductivity of 0.035W/(m K), suitable for high safety requirements. 2. Polyurethane foam (PU) (50mm, 75mm, 100mm): with thermal conductivity of 0.022W/(m·K), it has excellent thermal insulation performance and is suitable for different climate conditions. 3. Polystyrene foam (EPS) (50mm, 75mm, 100mm): with thermal conductivity of 0.035W/(m·K), it is cost-effective and suitable for warm and regular climates. |
|||
| Floor Structure | In the middle of the floor: Fire resistant cement fiber board 18mm | |||

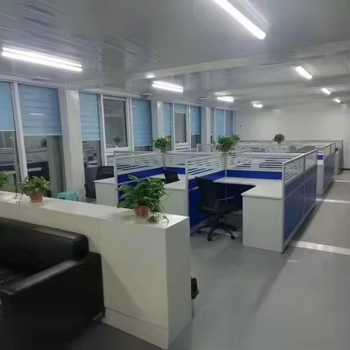

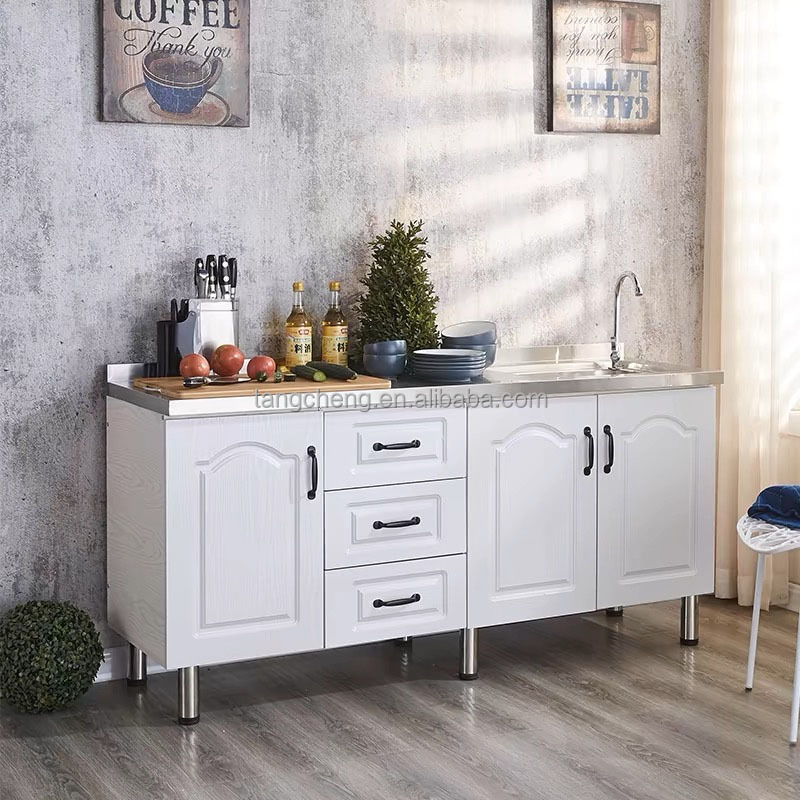

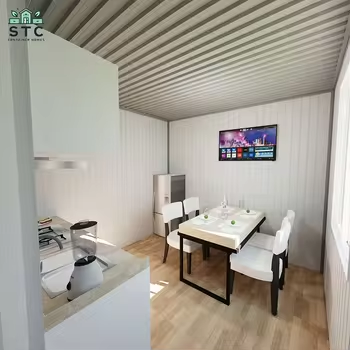

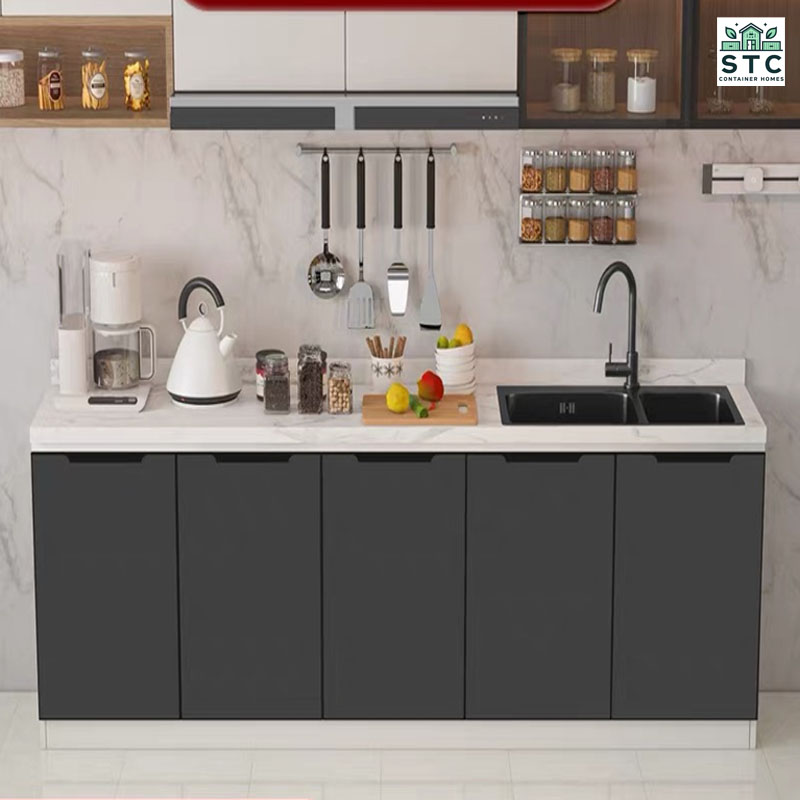

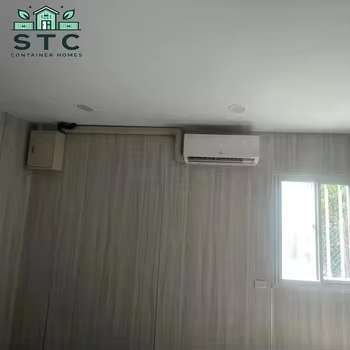

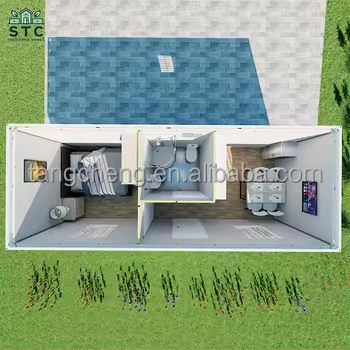

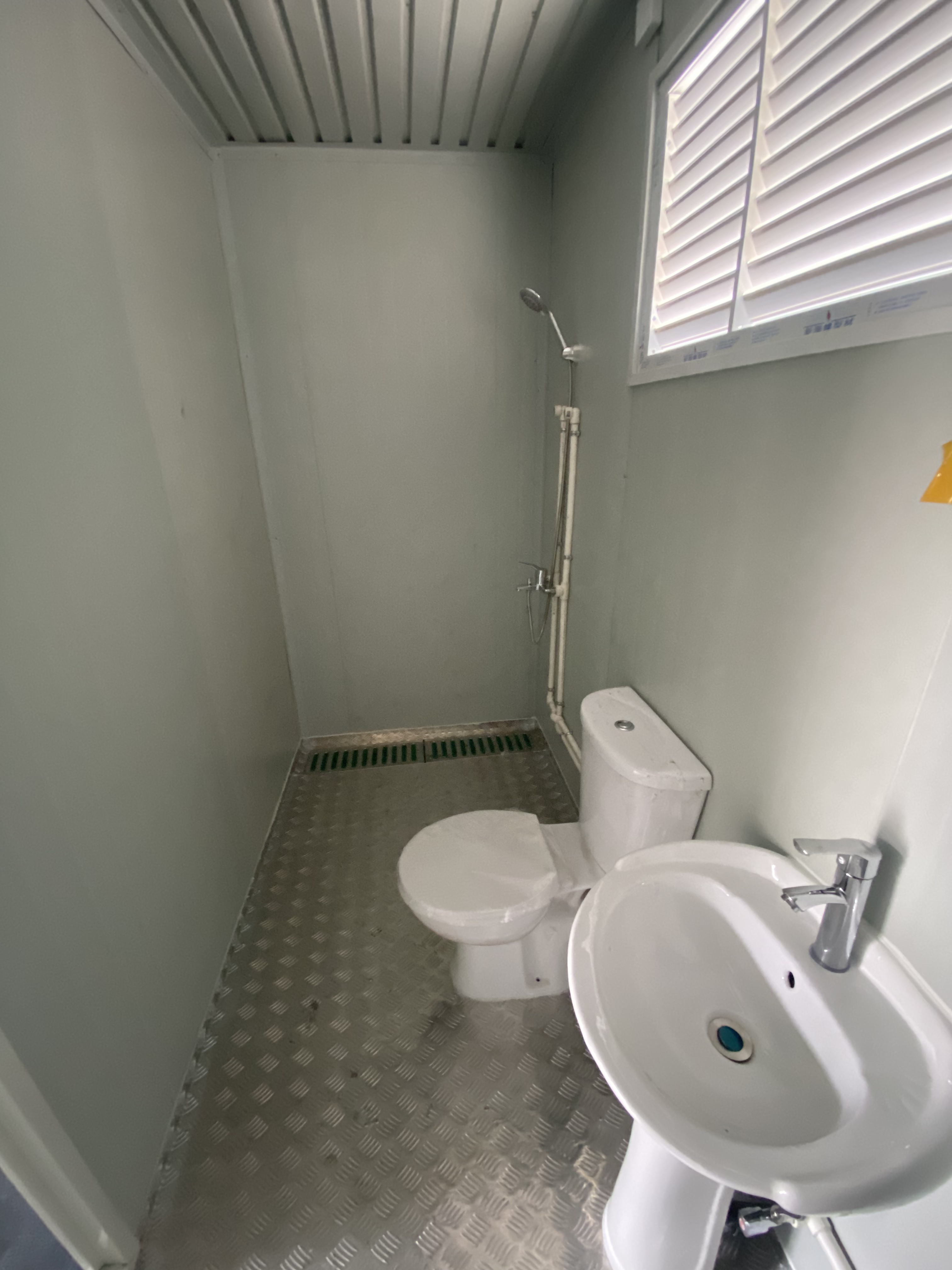

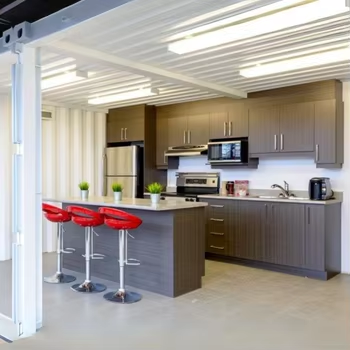

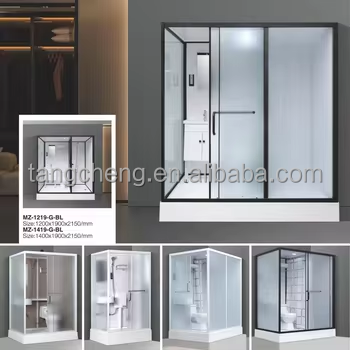

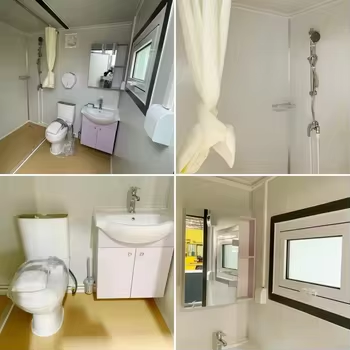

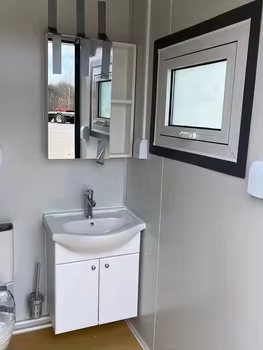

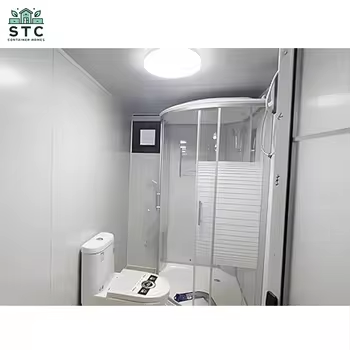

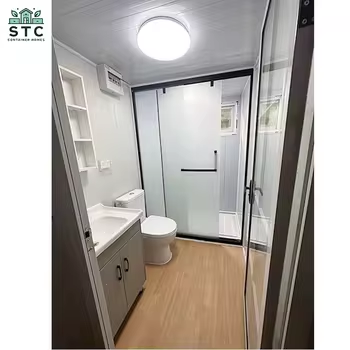

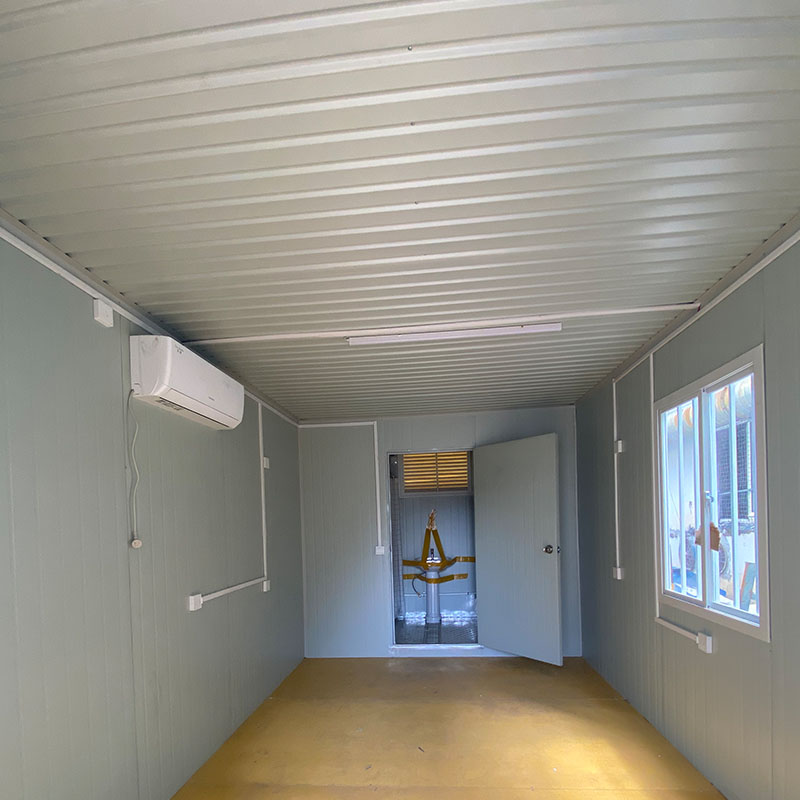

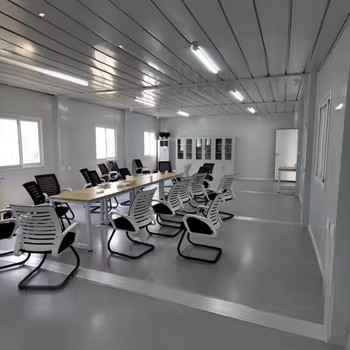

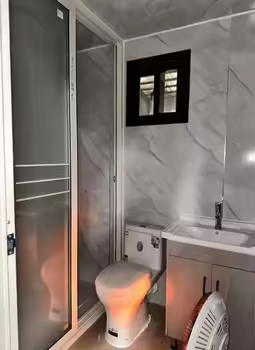

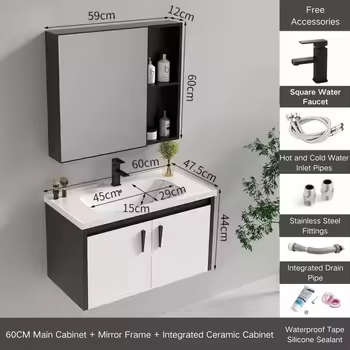

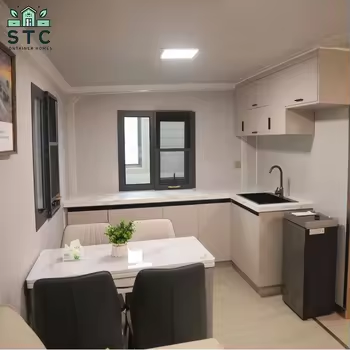

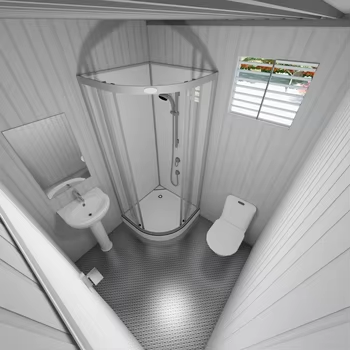

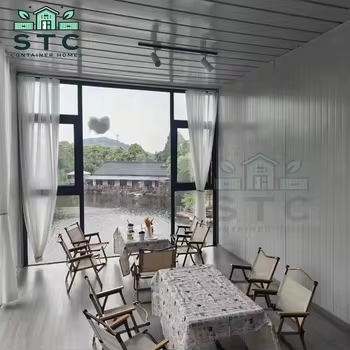

Fully equipped with kitchen, bathroom, electrical and plumbing systems — ready for comfortable living or working.

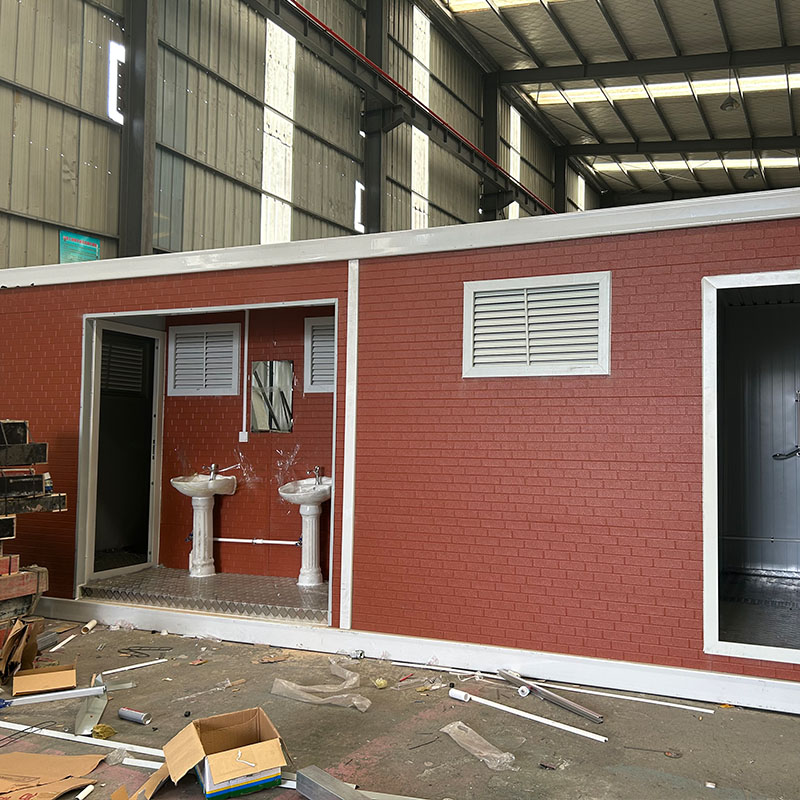

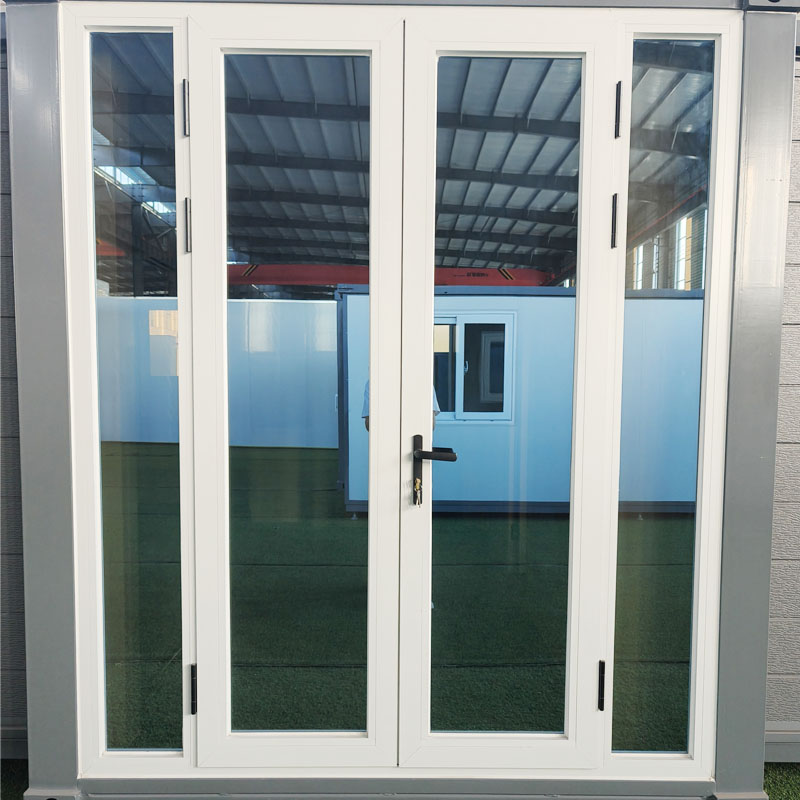

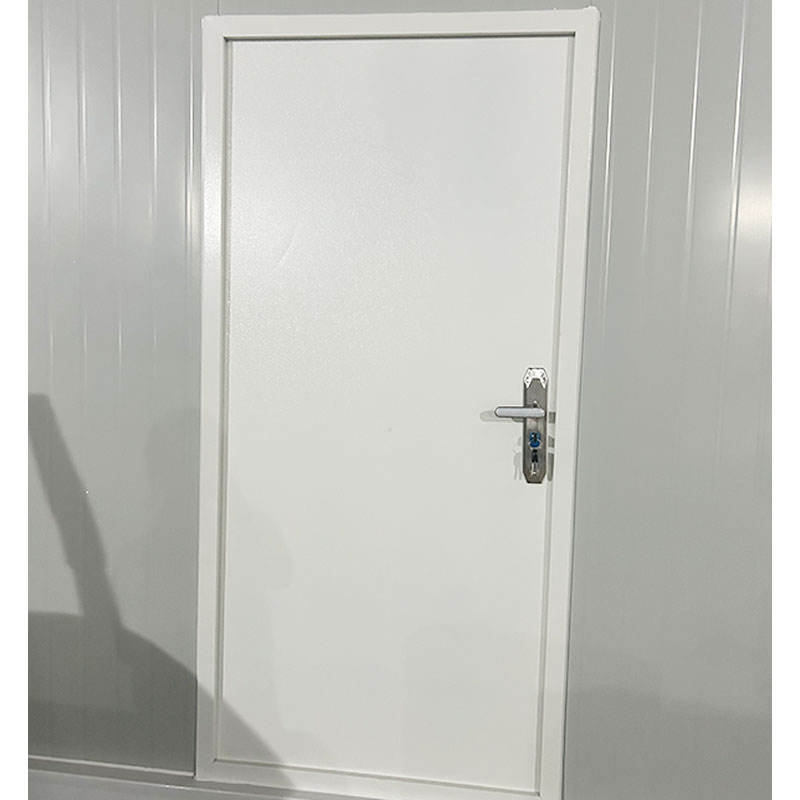

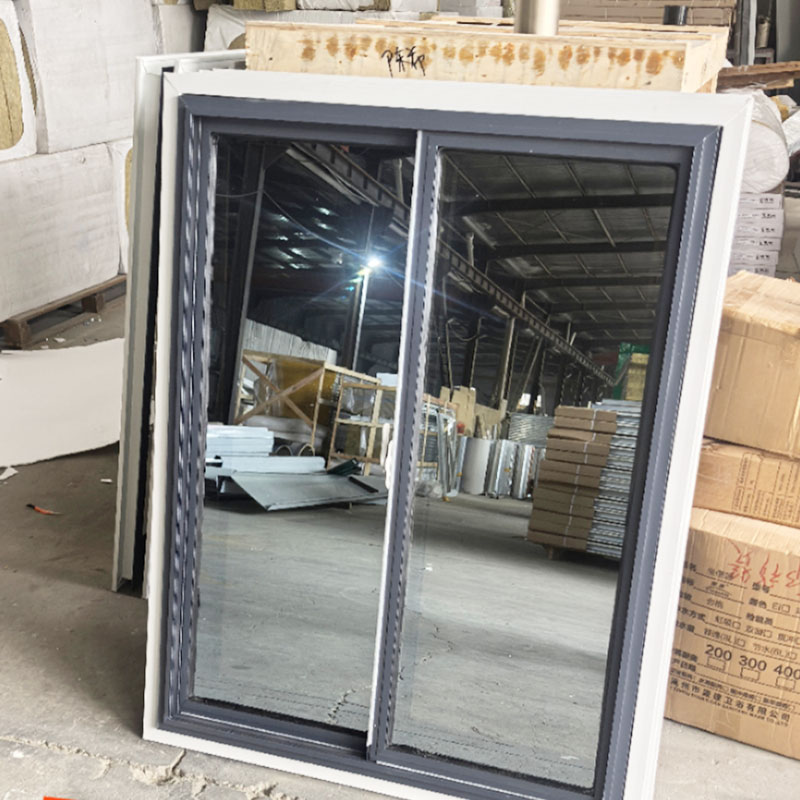

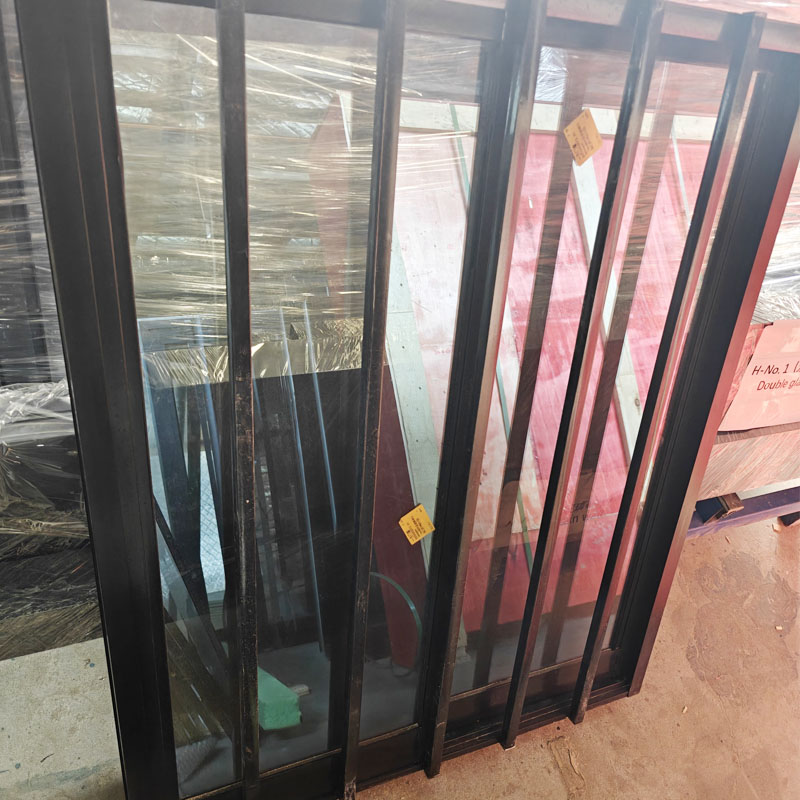

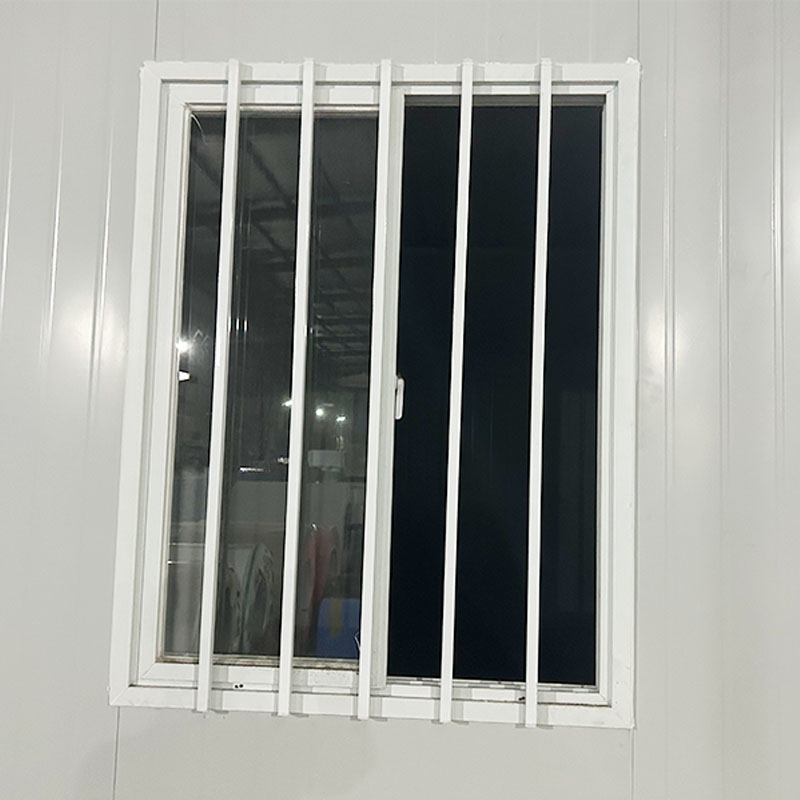

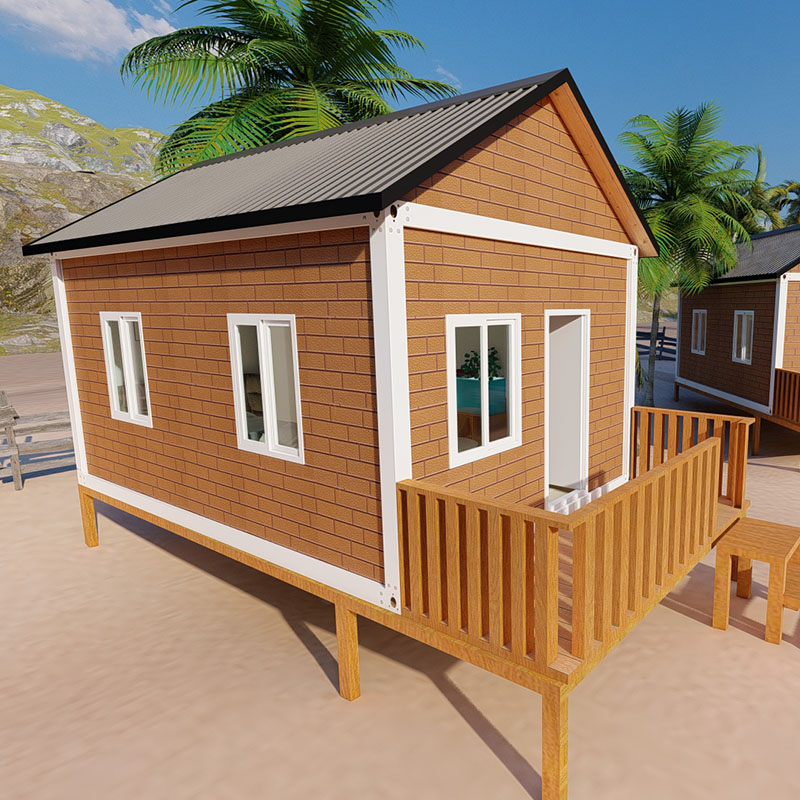

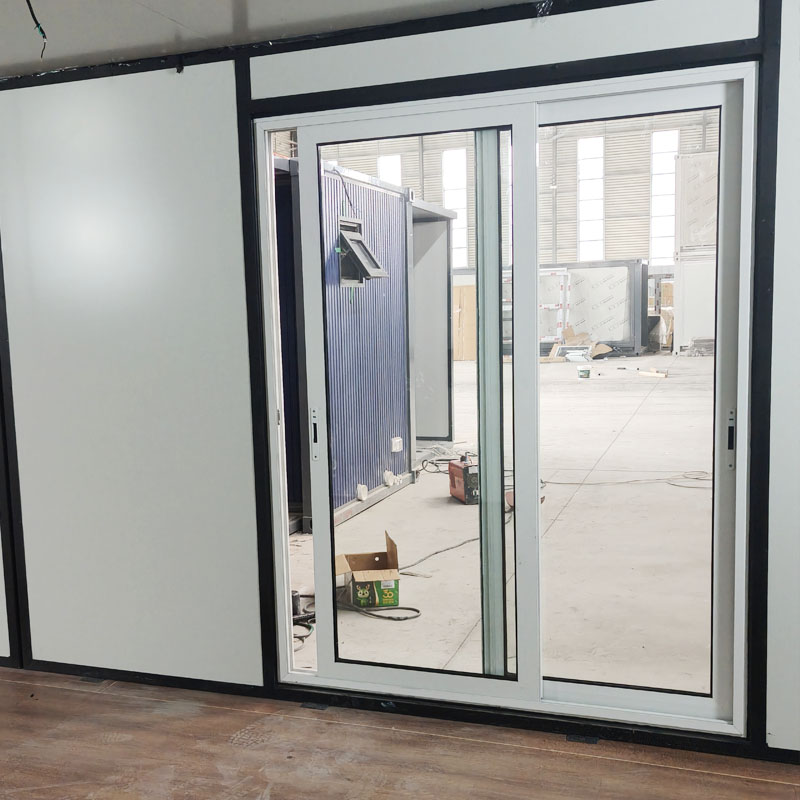

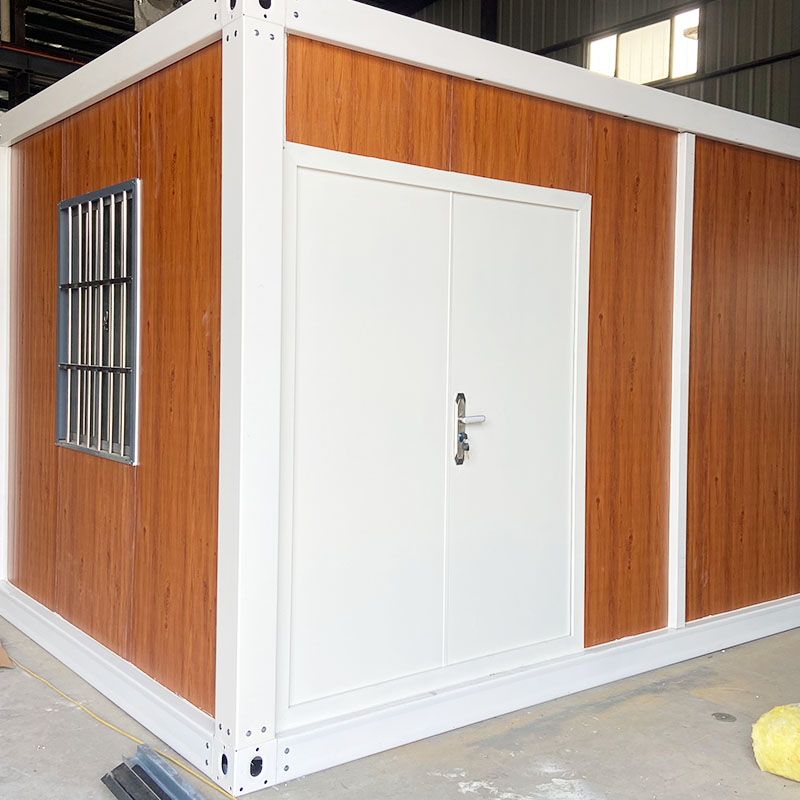

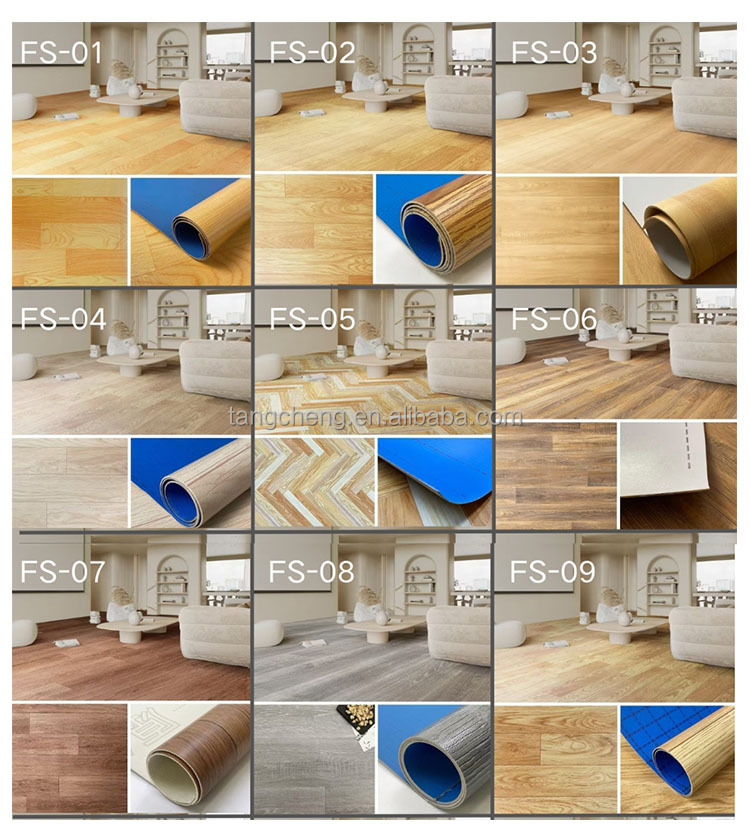

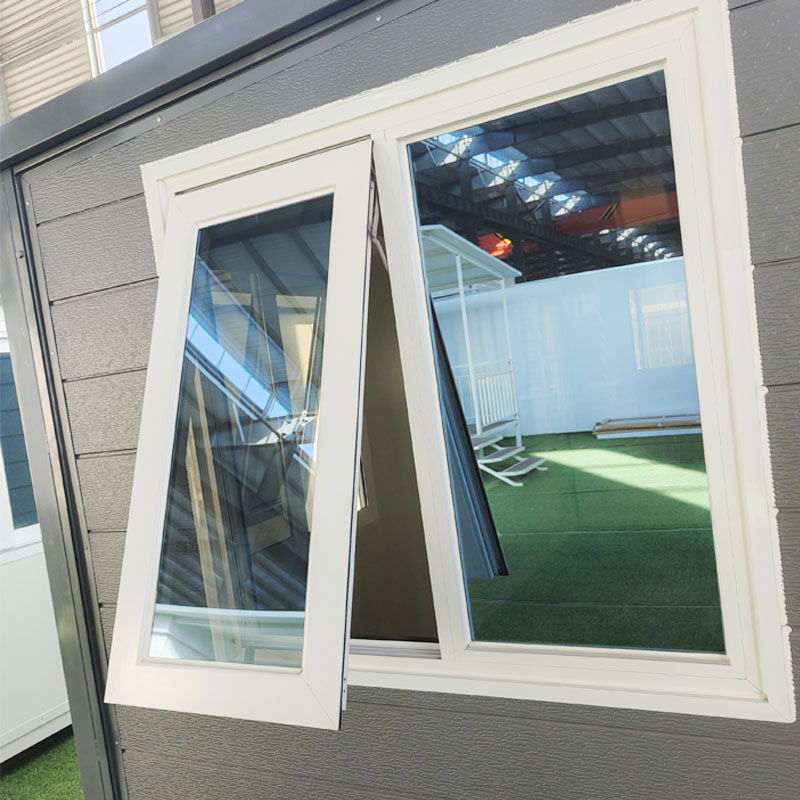

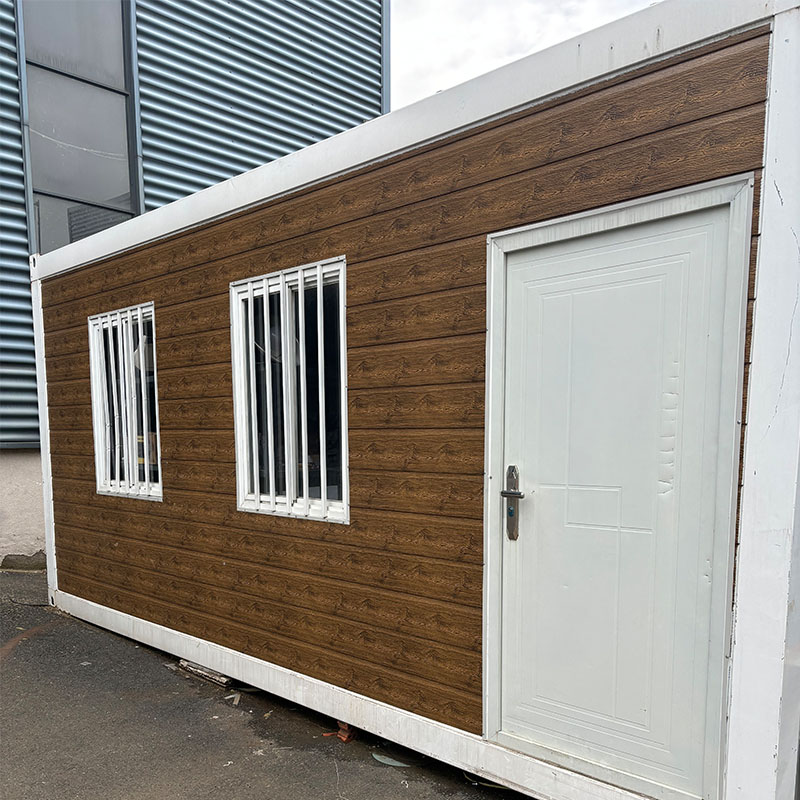

Supports personalized customization of exterior wall color, door and window styles, interior layout and floor, etc. to meet customers' different aesthetic and usage needs

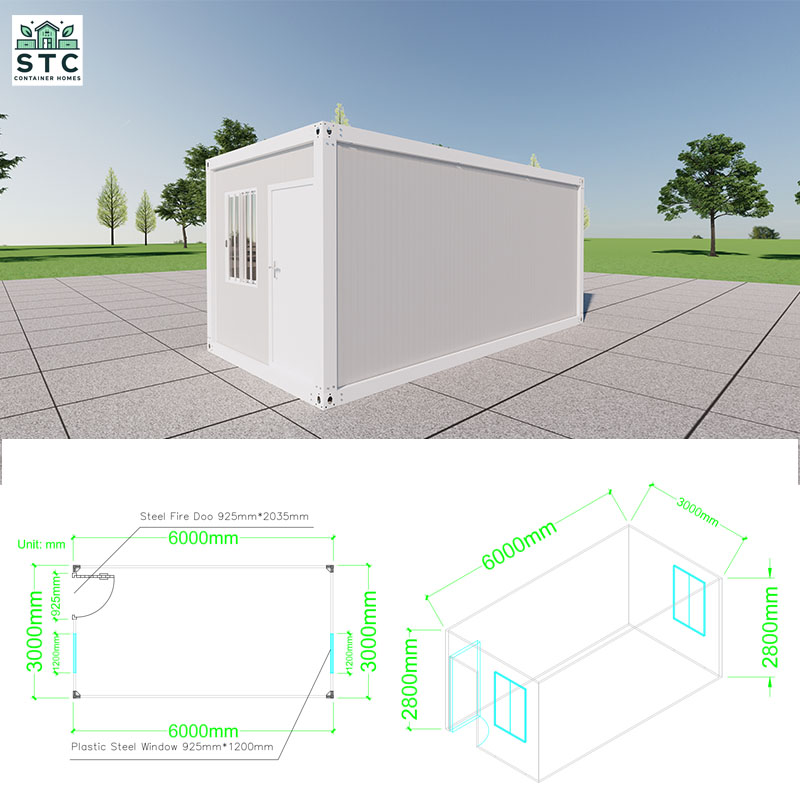

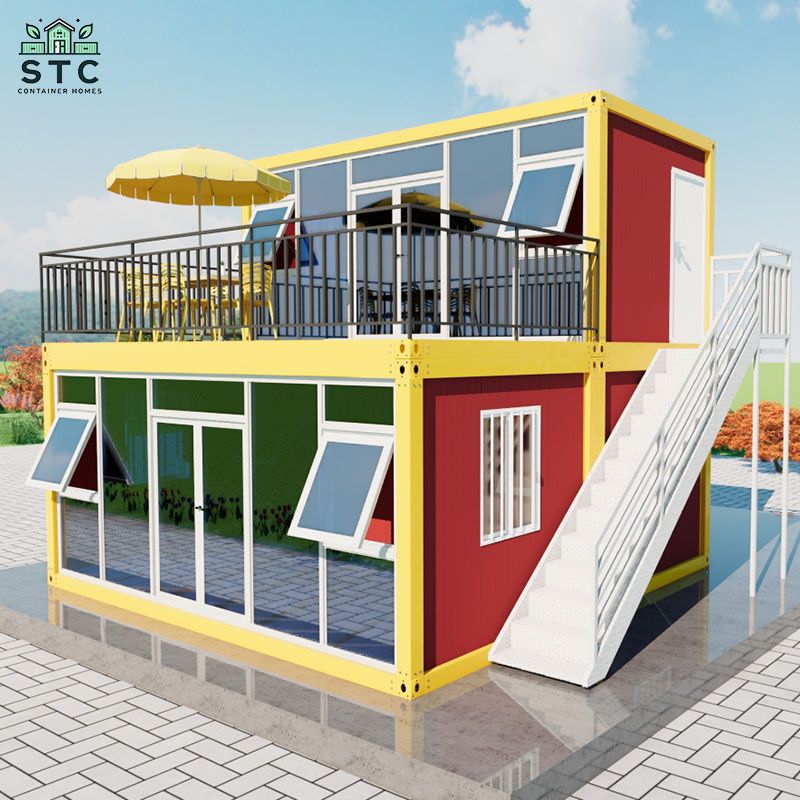

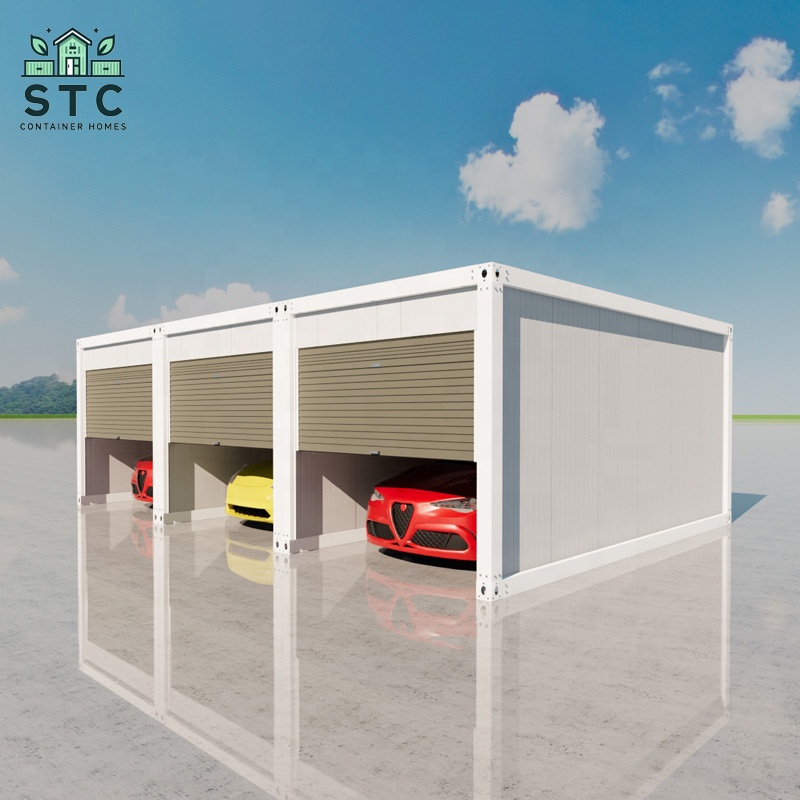

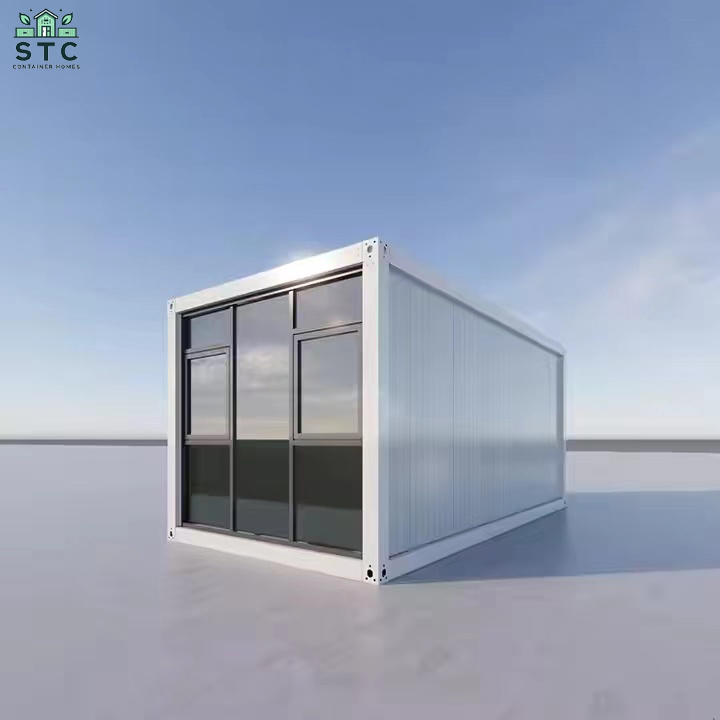

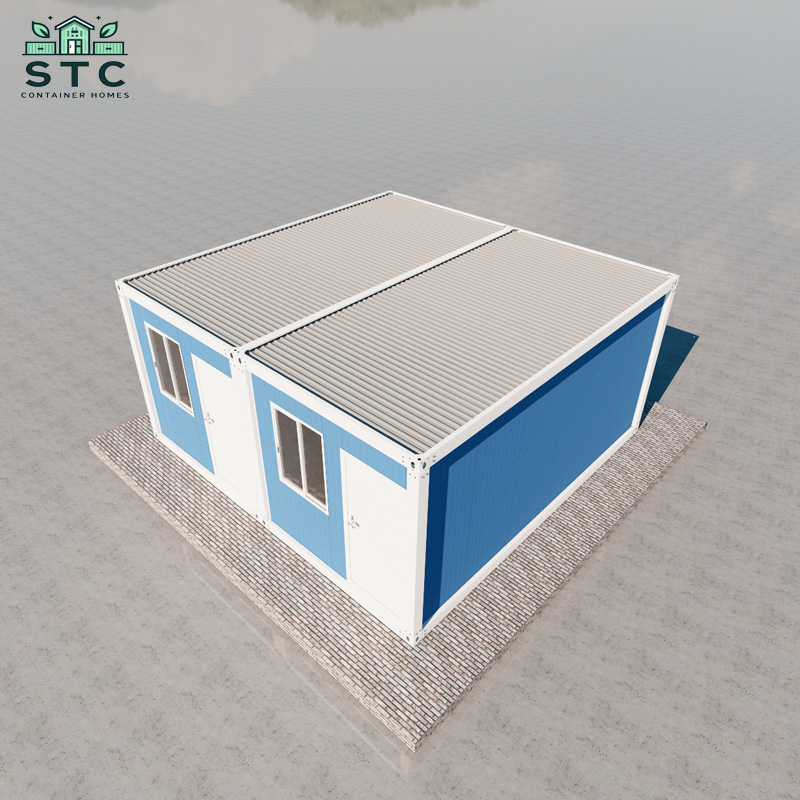

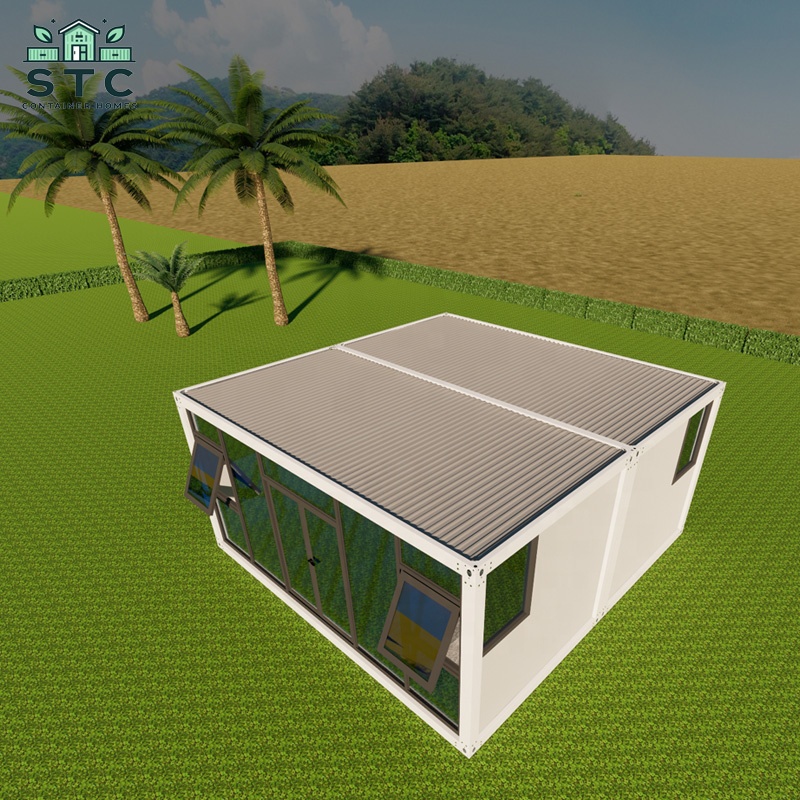

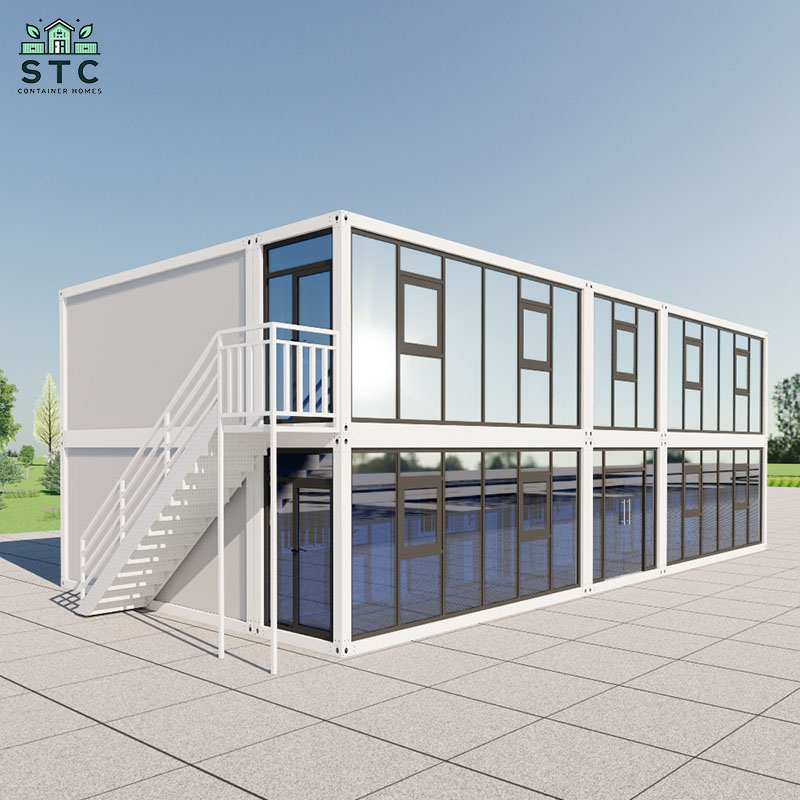

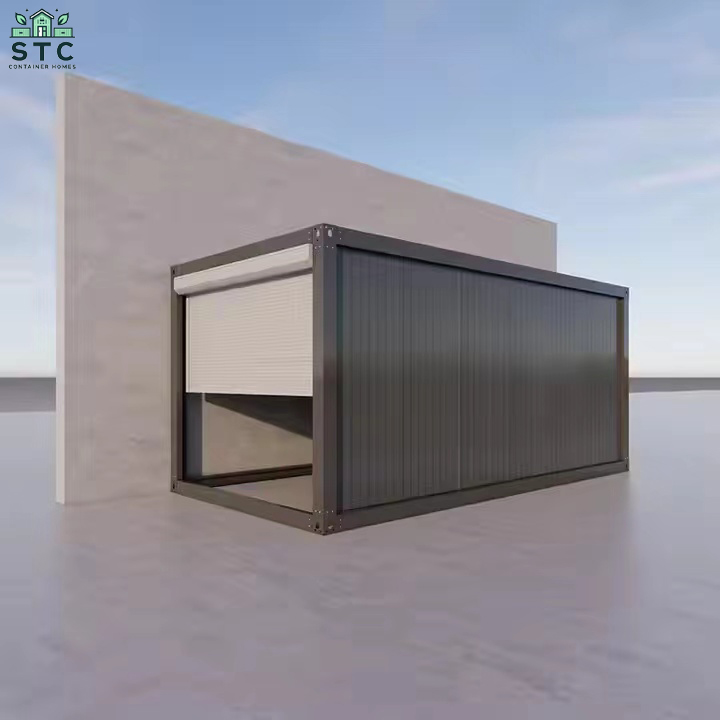

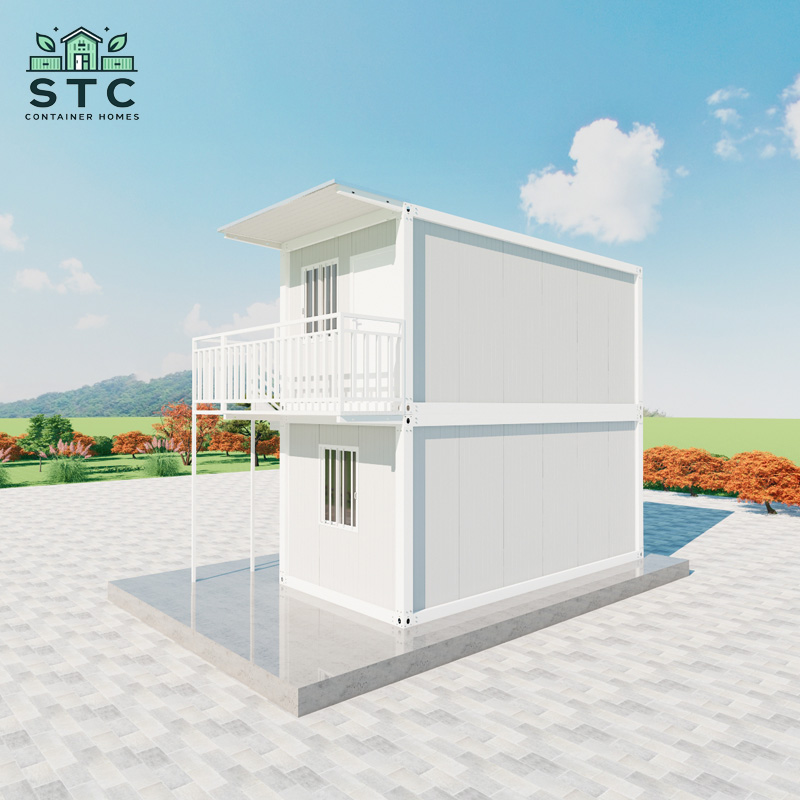

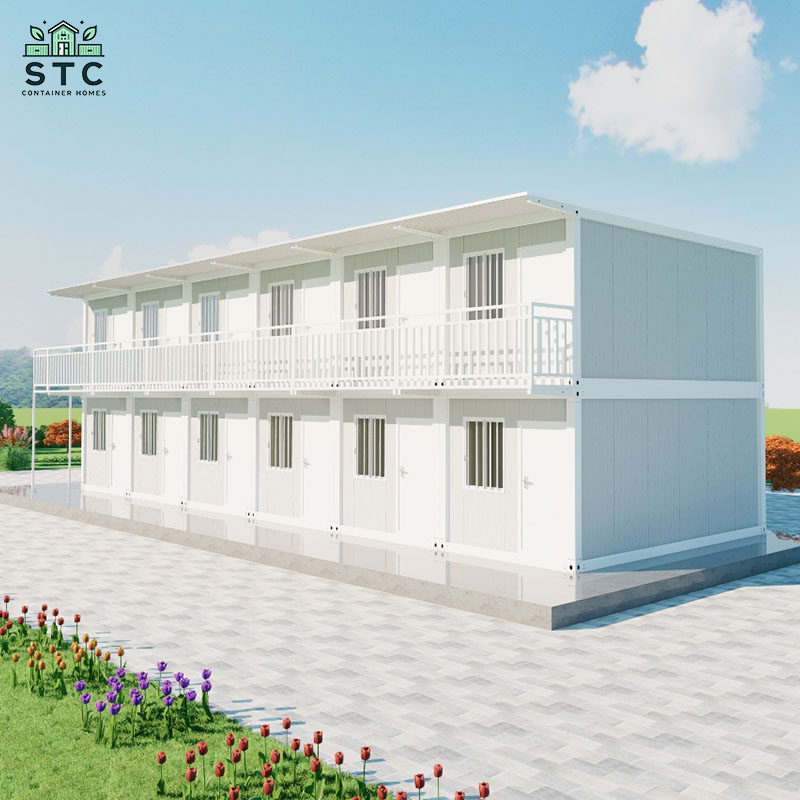

Modular design allows for flexible combinations — units can be used individually or joined together horizontally and vertically.

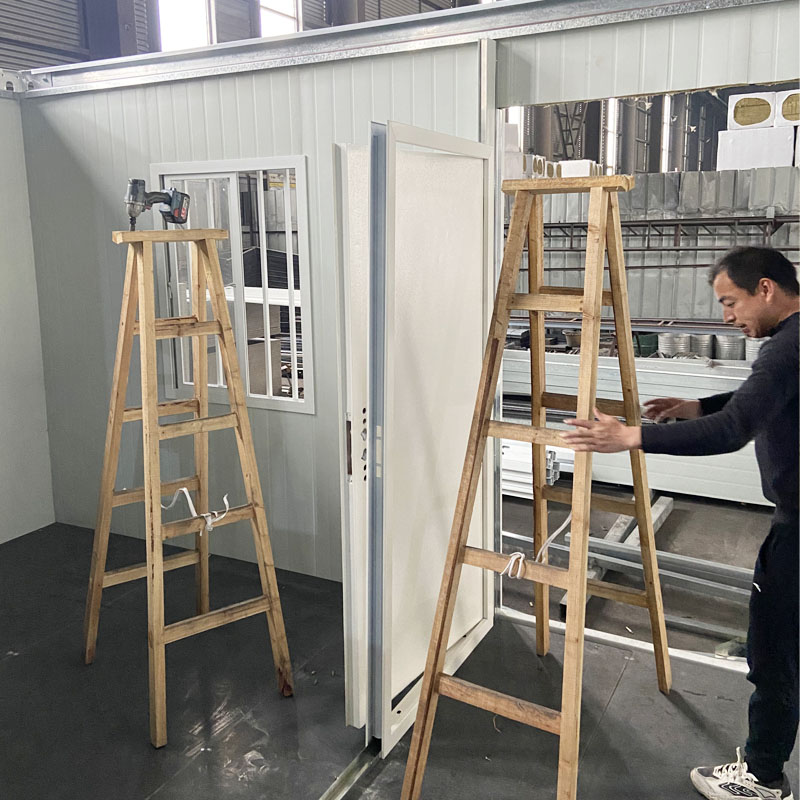

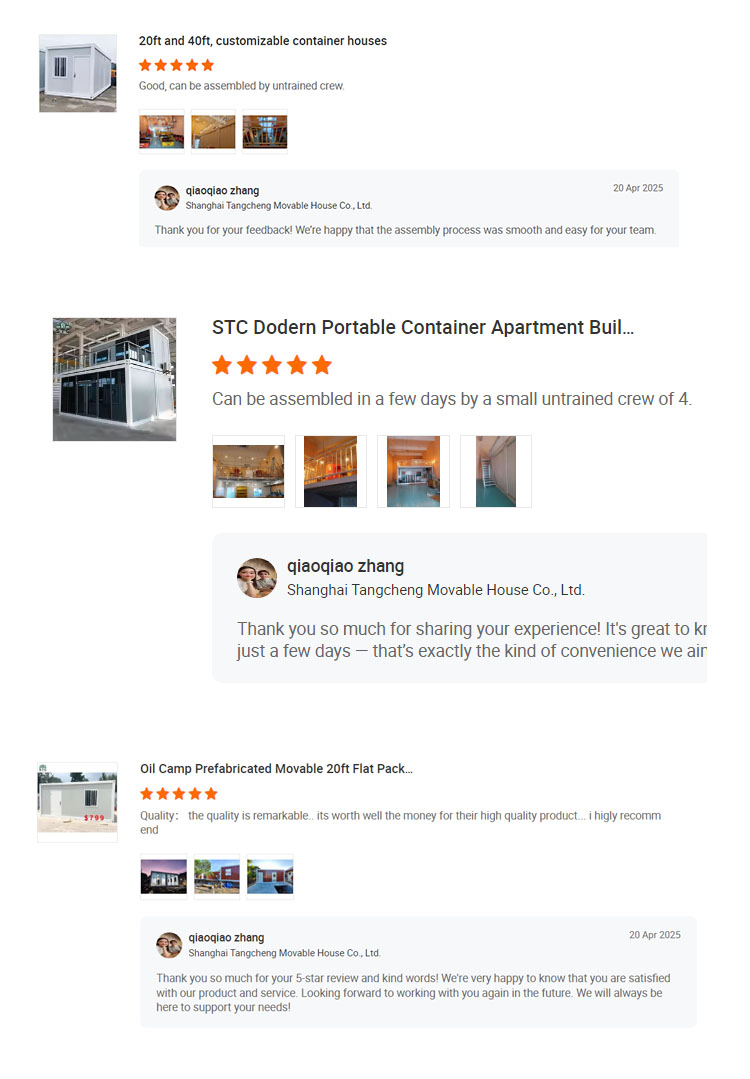

All modules are prefabricated in the factory, and only simple lifting and connection are required on site, which can be completed by a team of two people in three hours.

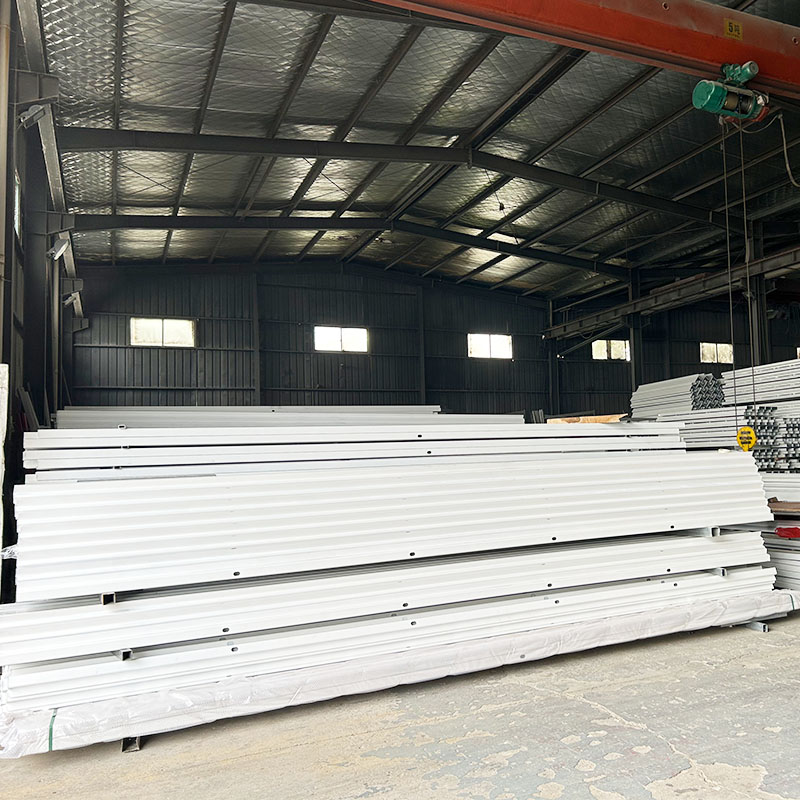

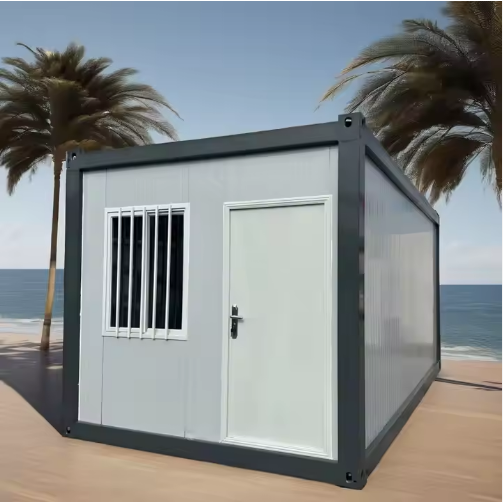

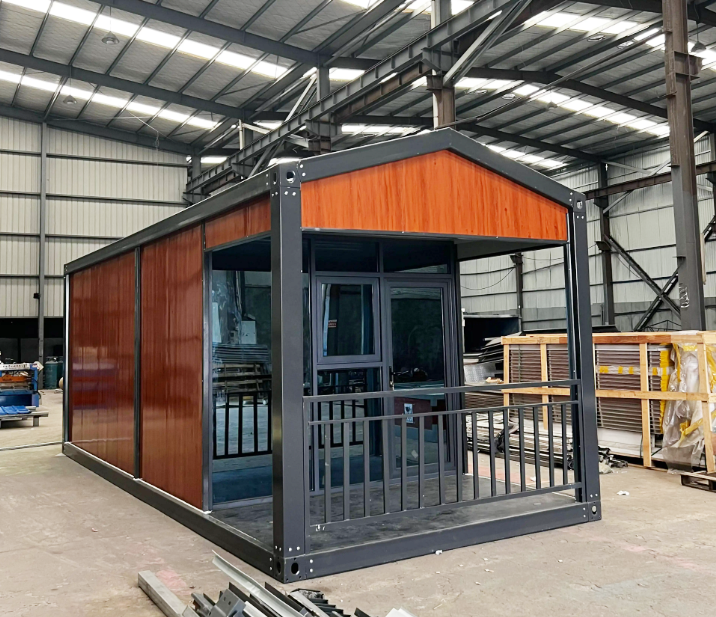

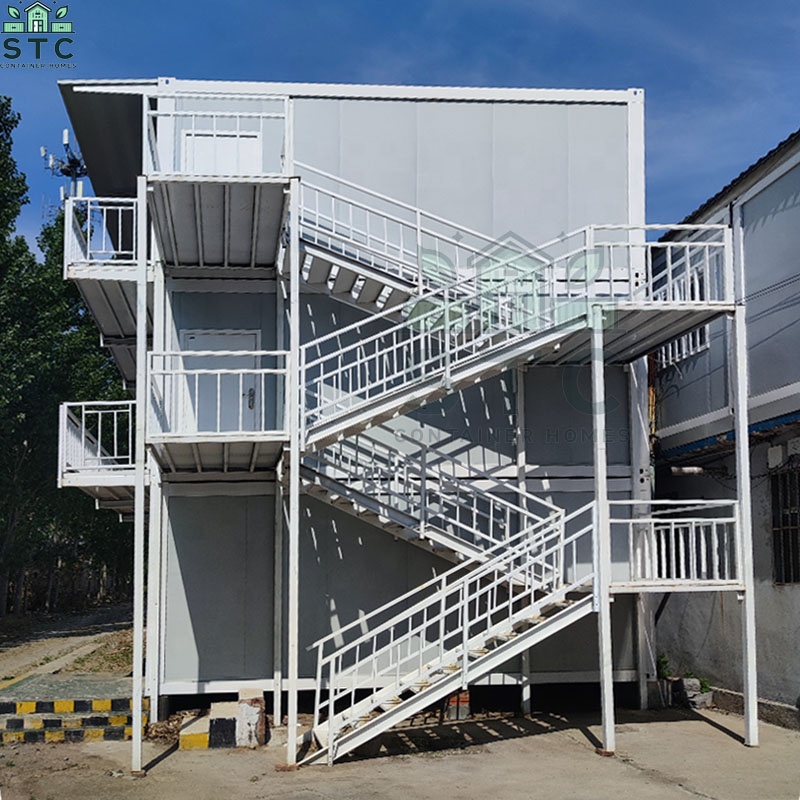

The galvanized steel structure is wind-resistant, earthquake-resistant, and corrosion-resistant (suitable for seaside locations) and complies with the building standards of many countries. The walls are made of sandwich rock wool for good thermal insulation. The product has a service life of up to 15-20 years.

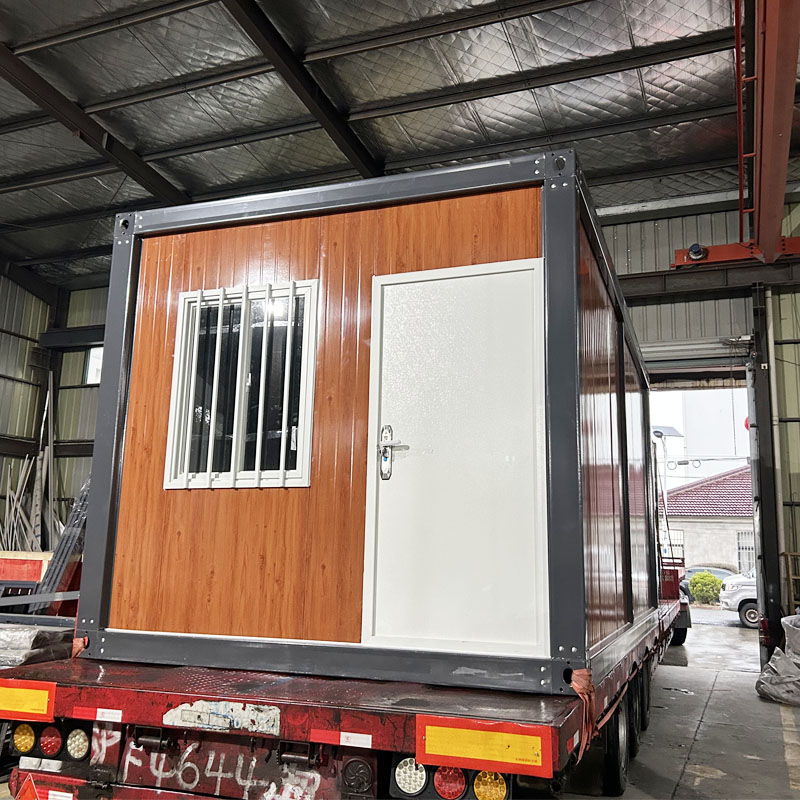

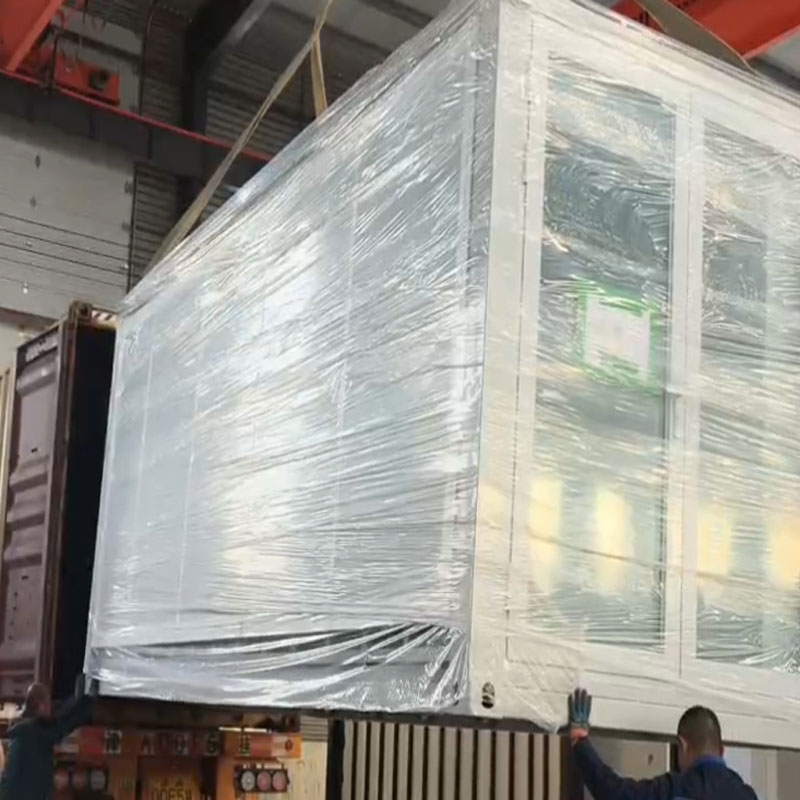

Reusable and recyclable design helps reduce environmental impact — an eco-friendly building solution.

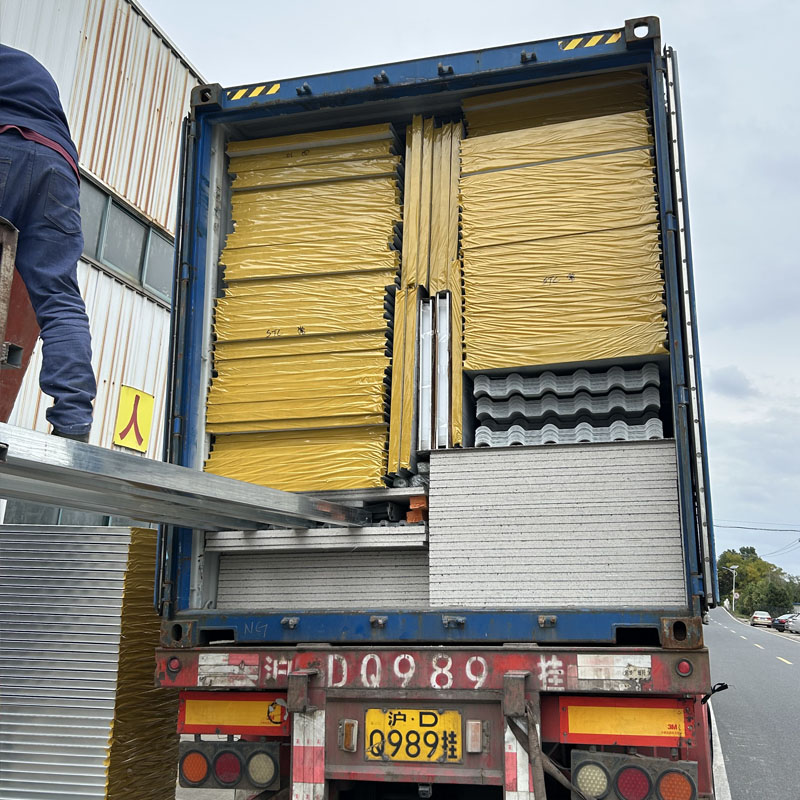

Proven export experience to over 48 countries — we support FOB, CIF, and DDP delivery.
These modular houses feature 99.9999% waterproofing, Grade A fireproof rating, wind resistance between 90 to 110 Km/hour, seismic resistance up to Grade 10, and sound insulation rating of >=30dB.
Depending on the configuration and weather conditions, our hot-dip galvanized steel structured homes have a standard structural service life of 15 to 20 years, with high-durability options lasting more than 30 years.
We offer three main insulation materials for wall boards: Class A fireproof rock wool board (excellent fire resistance), Polyurethane foam (PU) (excellent thermal insulation), and Polystyrene foam (EPS) (highly cost-effective for regular climates).
All modular units are prefabricated at the factory. Once delivered on site, they only require simple lifting and connecting, which a team of 2 people can finish within approximately 3 hours.

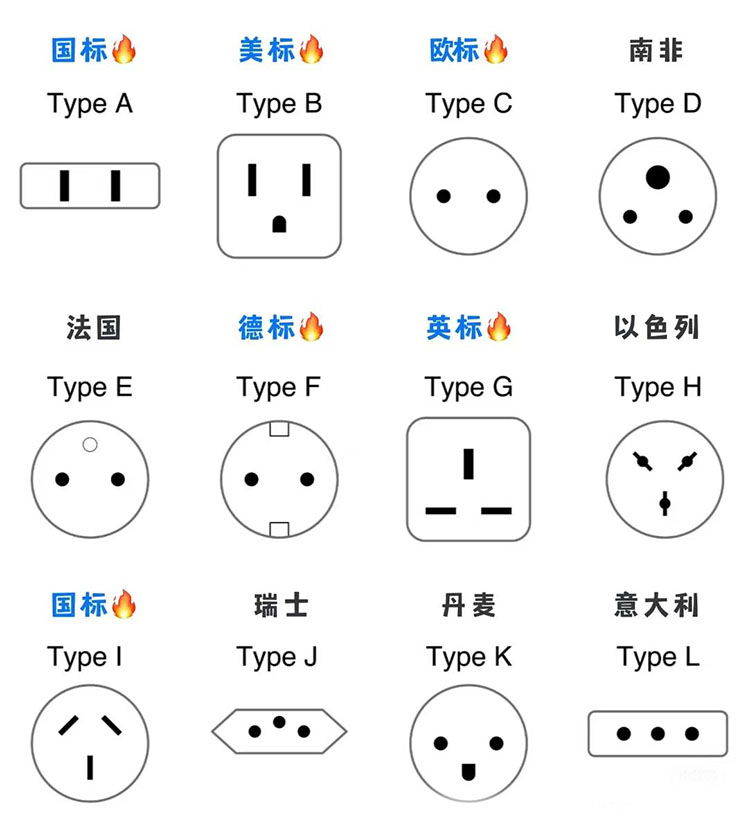

Yes, we customize power systems to 110V, 220V, or 480V electrical configurations to guarantee full compatibility with global power grids.
