What is the energy capacity and cycle life of this battery system?
The battery system features a rated energy capacity of 20 kWh, a rated voltage of 51.2 Vdc, and a capacity of 392 Ah. It offers a long operational lifespan with a rated cycle life of over 6000+ cycles.
What are the AC output capabilities of this system?
This system delivers a rated output power of 12,000 W at an output voltage of 230 Vac ± 5%. It supports both 50 Hz and 60 Hz frequencies and possesses a motor loading capacity of up to 8 HP.
What range of solar power input does the PV controller support?
The PV input supports a maximum open-circuit voltage of 500 Vdc, with an operating voltage range of 120 Vdc to 500 Vdc. The dual MPPT inputs can handle a combined maximum PV input power of 18,000 W (9000 W + 9000 W) with a maximum input current of 27 A + 27 A.
What is the maximum charging current available?
The system supports a maximum solar charging current and AC charging current of 150 A (DC). The maximum hybrid charging current is also 150 A (DC).

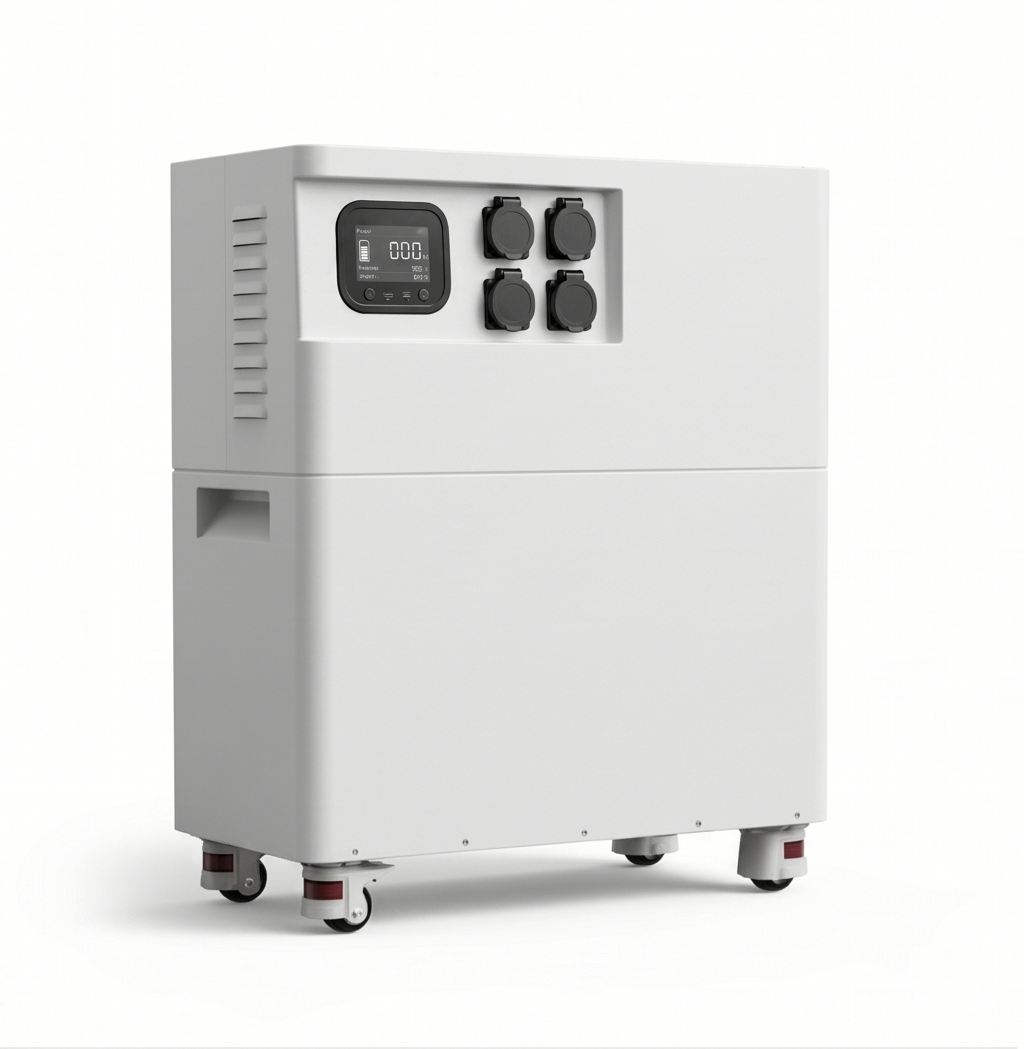

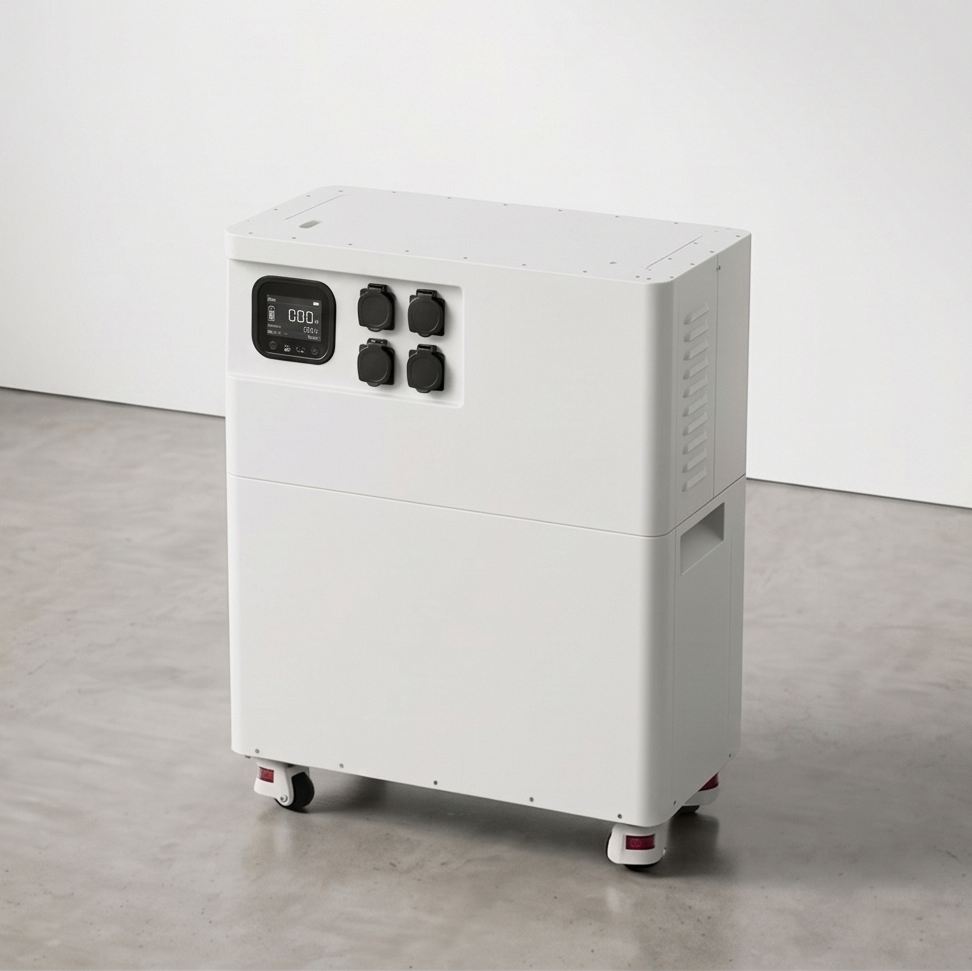

What are the physical dimensions and weight of the unit?
The physical dimensions (LWH) of the unit are 715 * 435 * 1050 mm, and it has an approximate net weight of 215 kg.
